2 5 V ision Attachment Head LC2-000-0705 1 2 4 5 3 6 6 OLD No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 LC2-M7134-00X COVER,CAMERA 1 1-1 LC2-M7134-01X COVER,CAMERA 1 (2002/8/8) M280040 N…
1
5
Head
Head
LC2-000-1102
45
46
52
57
54
64
65
66
14
11
7
6
5
2
3
58
4
22
19
55
56
23
38
39
41
40
24
47
49
50
1
48
44
49
50
51
43
42
53
21
18
16
17
16
9
13
12
8
10
17
15
15
20
37
27
34
60
33
31
35
32
30
25
26
36
29
28
59
47
48
36
49
OLD
62
63
61
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LC2-M7101-00X HOUSING 1
2 LC2-M7104-00X WAVE WASHER 1
3 LC2-M7105-00X CLIP 1
4 LC2-M7152-00X WASHER 1
5 90933-02J634 BEARING 1
6 LC2-M7154-00X SPRING, RETURN 1
7 LC2-M7106-00X BALL SPLINE 1
7-1 LC2-M7106-01X BALL SPLINE 1 (2002/8/20) M270109 NG
8 LC2-M7109-00X PULLEY 1
9 LC2-M7110-00X COLLAR 1
10 LC2-M71W1-01X WASHER 1
10-1 LC2-M71W1-02X WASHER 1 (2002/8/20) M270109 OK
10-2 LC2-M71W1-03X WASHER 1 (2002/9/27) N290043 NG
11 LC2-M7144-00X PLATE, BEARING 2
12 KGB-M7106-70X SHAFT, NOZZLE 1
13 KM1-M7106-90X SPG. NOZZLE 1
14 90990-19J008 NEEDLE PIN 1
15 KG7-M7137-A0X LEAF SPRING 2
16 KG7-M7169-00X SCREW 2
17 KG7-M7170-00X WASHER 2
17-1 90990-28J002 WASHER PLAIN 2 (2003/3/28) M330113 OK
18 KV1-M9140-A0X PULLEY, CONV. ASSY 1
19 LC2-M7125-00X FLANGE, MOTOR 1
20 LC2-M7138-00X BELT, R 1
21 LC2-M7139-00X PULLEY, MOTOR 1
22 90K61-001605 AC SERVO MOTOR 1
22-1 90K61-001H05 AC SERVO MOTOR 1 (2002/8/20) M280067 OK
22-2 90K61-001L05 AC SERVO MOTOR 1 (2003/2/19) N320003 OK
23 LC2-M7118-00X POLE 4
24 LC2-M7121-00X PLATE, MOTOR 1
25 LC2-M7122-00X RACK 1
26 LC2-M7123-00X PINION 1
26-1 LC2-M7123-01X PINION 1 (2002/8/20) M270109 OK
26-2 LC2-M7123-00X PINION 1 (2002/12/5) N2X0013 OK
27 LC2-M7130-00X Z DRIVE SUB ASSY 4
28 LC2-M7124-00X PLATE, NUT 1
29 LC2-M7136-00X GUIDE 1
30 LC2-M7145-00X DAMPER 1 1
30-1 LC2-M7145-00X DAMPER 1 2 (2002/8/26) M280106
30 LC2-M7145-00X DAMPER 1 2
31 LC2-M7146-00X BRACKET, Z 1
32 LC2-M71W2-00X PIN, SPRING 1
33 LC2-M7103-00X BUSH 1
34 90440-02J060 CIRCLIP 1
34-1 Delete (2003/2/19) N310048
35 LC2-M7149-01X STAY 1
36 LC2-M7148-00X STOPPER 1
36-1 LC2-M7148-01X STOPPER 1 (2002/8/20) M270109 NG
37 $TSH4-M5M JOINT 1
38 90K55-3U075A AC SERVO MOTOR 1
39 90K55-3U075B AC SERVO MOTOR 1
40 90K55-3U075F AC SERVO MOTOR 1
41 90K55-3U075S AC SERVO MOTOR 1
42 LC2-M7163-00X EJECTOR, RESIN 1
43 $TL6-01 JOINT 2
43-1 $NTL6-01 JOINT 2 (2003/11/25) N310019 OK
44 LC2-M7102-00X PLATE,HEAD 1
44-1 LC2-M7102-01X PLATE,HEAD 1 (2002/8/20) M270109 OK
45 LC2-M71C1-00X HANDLE 1
46 LC2-M71C2-00X STAY, HANDLE 1
47 LC2-M71C4-00X COVER 1
47-1 LC2-M71C4-01X COVER 1 (2002/8/8) M280040 NG
48 LC2-M71C5-00X STAY,MACS 1
48-1 LC2-M71C5-01X STAY,MACS 1 (2002/8/8) M280040 NG
49 LC2-M71E1-01X BAR, MULTI MACS 2
50 KGB-M71E4-00X SEAL, MULTI MACS 2
51 99480-04012 PIN, PARALLEL 10
52 LC2-M71C6-00X STAY, JOINT 1
53 $UT4M JOINT 4
53-1 $NUT4 JOINT 4 (2003/11/25) N310019 OK
54 $UK4M JOINT 4
54-1 $NUK4 JOINT 4 (2003/11/25) N310019 OK
55 LC2-M71E2-00X STAY 1
56 LC2-M71E3-00X STAY 1
57 LC2-M7120-00X SHAFT, HEAD SUB ASSY 4
58 92907-04200 WASHER PLAIN 1
59 90185-00J00 NUT U : FU00SS(M10) 1
60 92907-08600 WASHER PLAIN 1
60-1 Delete (2003/2/19) N310048
61 KGB-M7163-A0X EJECTOR 1 SPARE
62 KM1-M7163-20X VALVE(BLOW) 1 SPARE
63 KM1-M7163-30X VALVE(OPERATE) 1 SPARE
64 KM5-M7174-G1 FILTER CAP 1
65 90990-17J010 O-RING 1
66 K46-M8527-C0 FILTER 1
2
5
Vision Attachment
Head
LC2-000-0705
1
2
4
5
3
6
6
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LC2-M7134-00X COVER,CAMERA 1
1-1 LC2-M7134-01X COVER,CAMERA 1 (2002/8/8) M280040 NG
2 KV7-M7211-00X LENS 095 1
3 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1
4 LC2-M7133-00X HOLDER, CAMERA 1
5 LC2-M7135-00X STAY, FID. LIGHT 1
6 LC2-M7134-00X COVER,CAMERA 1
6-1 LC2-M7134-01X COVER,CAMERA 1 (2002/8/8) M280040 NG
3
5

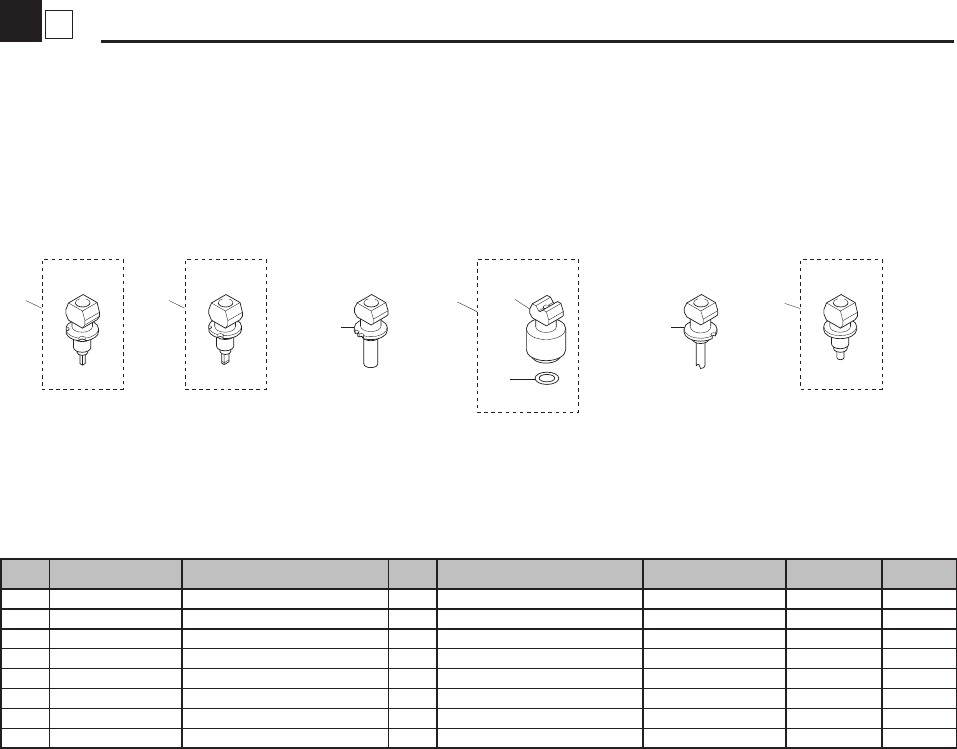

Nozzle Selection
Head
LC2-000-0705
4
6
1 2
5
3
7
Type71A/81A Type82A
8
A98/A97epyTA68/A67epyTA38/A37epyT Type74A/84A
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KV8-M7710-A1X NOZZLE 71A/81A ASSY.
1
2 LC2-M7720-A0X NOZZLE 82A ASSY. 1
3 KV8-M7730-00X NOZZLE 73A/83A 1
4 KV8-M7740-A0X NOZZLE 74A/84A ASSY. 1
5
KV8-M7741-00X
NOZZLE 74A/84A 1
6 90990-17J013 O-RING 5
7 KV8-M7760-00X NOZZLE 76A/86A 1 MELF
8 KV8-M7790-A0X NOZZLE 79A/89A ASSY. 1 CIRCLE
