– 94 – E1 181 1-006 2 Y Axis Base 104 139 104 109 105 108 108 107 107 11 8 122 123 124 142 141 144 143 See Fig D1-1 Key No.2,3

100%1 / 284
– 93 –
BEAM SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
6 KYB-M655F-00 1010BJ13 PINION_COV_R 2
7 KYB-M655G-00 1010BJ14 PINION_COV_L 2
8 90112-10J035 221AA069 BOLT,HEX.SOCKET HEAD 8 M10L35
9 92902-10200 221HA108 WASHER,PLAIN 8 FW10
10 91312-06010 221AA041 BOLT,HEX.SOCKET HEAD 8 M6L10
11 90990-66J012 221DA207 SCREW,TRUSS HEAD 8 TRS M4L6
12 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
13 KYB-M65AA-00 221HA303 ROHS_WASHER 8 BW5
14 KYB-M65AW-00 23N30632 WIRING 22
15 90990-66J015 221DA212 SCREW,TRUSS HEAD 22 TRS M5L6
16 KYB-M656C-00 0916D209 ACCESS-WIRING 50
21 KYB-M652A-00 10101A3Q MEIBAN 1
22 KYB-M654A-00 1010BC48 HNS,FB-ROCK-B 1
23 KYB-M654B-00 1010BC49 HNS,FB-ROCK-F 1
24 KYB-M650S-00 1010BC8W HNS,H-SV-F 1
25 90990-11J016 221DA053 SCREW,PAN HEAD WW 4 PAN M4L6+SW+FW
32 KYB-M260F-00 1010DC2P GUIDE LINEAR 1
33 KYB-M260M-00 1005DC32 Y_SCALE01 2
34 KYB-M260R-00 10103C5N ASSY_STOPPER_Y 4
34-01 KYB-M260T-00 1010DC2X Y_STOPPER 4
34-02 KYB-M2616-00 1010DC7T Y_STOPPER_GUM 4
34-03 91312-08040 221AA060 BOLT,HEX.SOCKET HEAD 8 M8L40
35 91312-06020 221AA044 BOLT,HEX.SOCKET HEAD 88 M6L20
36 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 18 M4L8
37 91312-08025 221AA057 BOLT,HEX.SOCKET HEAD 8 M8L25

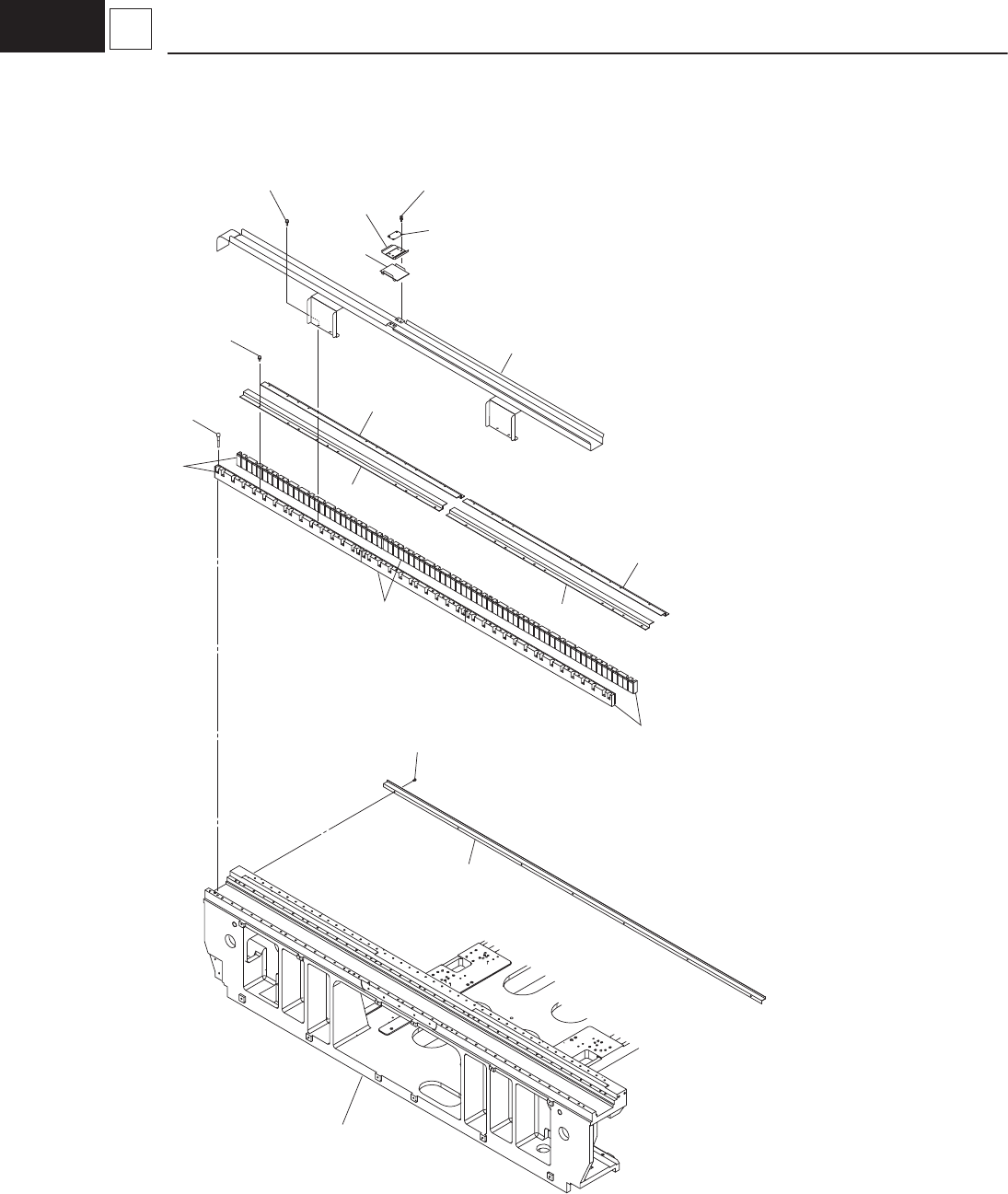

– 94 –
E1
1811-006
2 Y Axis Base
104
139
104
109
105
108
108
107
107
118
122
123
124
142
141
144
143
See Fig D1-1
Key No.2,3
– 95 –
BEAM SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
104 KYB-M260B-00 0914DA0W Y_MAG_672 4
105 KYB-M260C-00 0914DA0X Y_MAG_480 2
107 KYB-M2208-00 1010DC4B COVER_MAGNET_Y1 4
108 KYB-M2209-00 1010DC4C COVER_MAGNET_Y2 4
109 KYB-M260L-00 211FD946 BRACKET 2
118 KYB-M2602-00 1010DC71 Y_CABLE_BRACKET 2
122 KYB-M260W-00 1010DC52 Y_BRACKET_BA_T2 2
123 KYB-M260G-00 1010DC4Z Y_CBLFIX_BB_T2 2
124 KYB-M2612-00 1010DC63 PLATE 2
139 91312-06035 221AA047 BOLT HEX,SOCKET HEAD 176 M6L35
141 90990-66J017 221DA221 SCREW,TRUSS HEAD 20 TRS M5L8
142 90990-66J013 221DA208 SCREW,TRUSS HEAD 14 TRS M4L8
143 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
144 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 8 M4L10
