– 97 – B E A M S EC TI O N 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 104 KYB-M260B-00 0914DA0W Y_MAG_672 4 105 KYB-M260C-00 0914DA0X Y_MAG_480 2 107 KYB-M2208-00 1010DC4B COVER_MAGNET_Y1 4 108 KYB-M22…
– 97 –
BEAM SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
104 KYB-M260B-00 0914DA0W Y_MAG_672 4
105 KYB-M260C-00 0914DA0X Y_MAG_480 2
107 KYB-M2208-00 1010DC4B COVER_MAGNET_Y1 4
108 KYB-M2209-00 1010DC4C COVER_MAGNET_Y2 4
109 KYB-M260L-00 211FD946 BRACKET 2
118 KYB-M2602-00 1010DC71 Y_CABLE_BRACKET 2
122 KYB-M260W-00 1010DC52 Y_BRACKET_BA_T2 2
123 KYB-M260G-00 1010DC4Z Y_CBLFIX_BB_T2 2
124 KYB-M2612-00 1010DC63 PLATE 2
139 91312-06035 221AA047 BOLT HEX,SOCKET HEAD 176 M6L35
141 90990-66J017 221DA221 SCREW,TRUSS HEAD 20 TRS M5L8
142 90990-66J013 221DA208 SCREW,TRUSS HEAD 14 TRS M4L8
143 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
144 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 8 M4L10
– 98 –
E1
1811-006

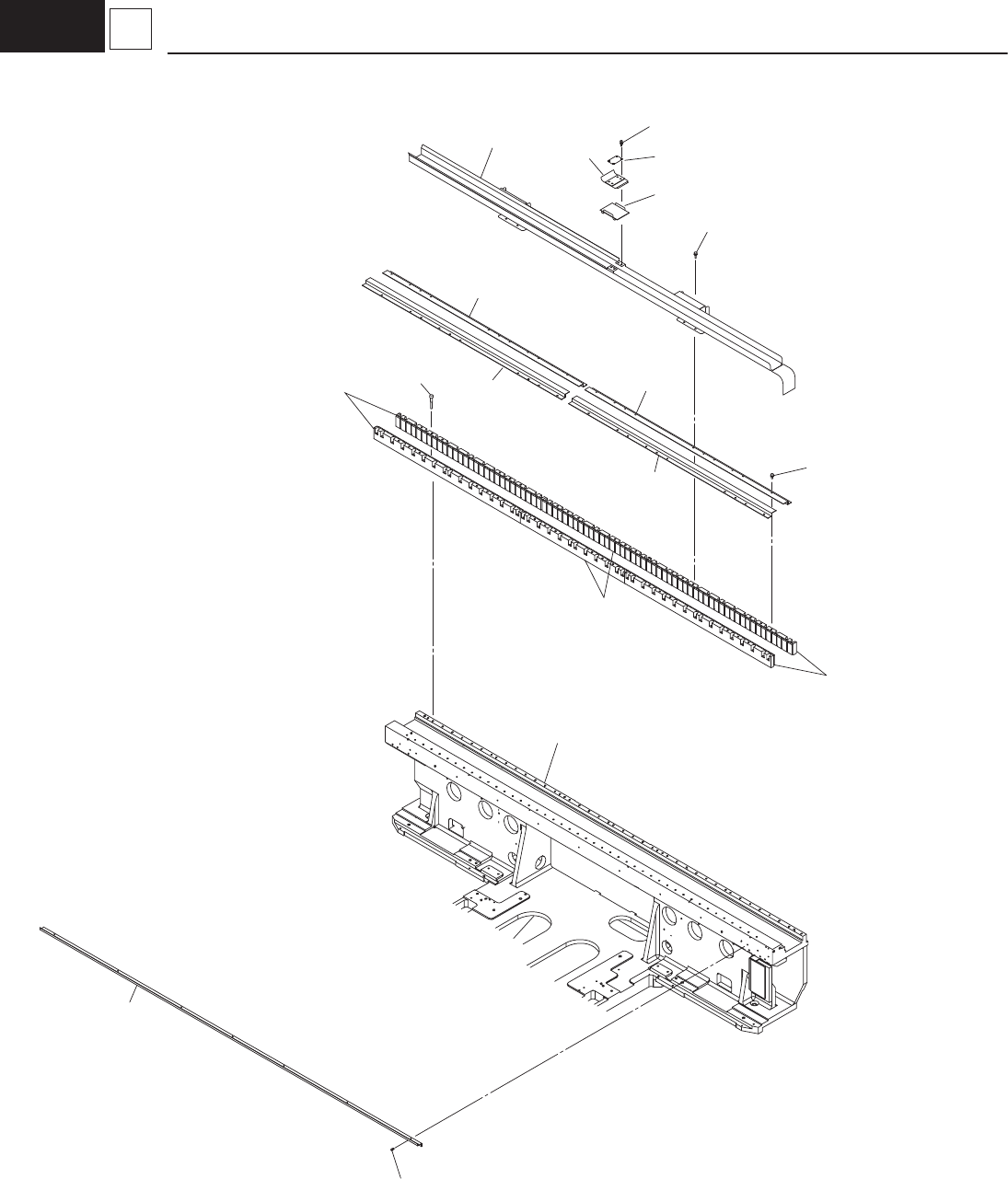

3 X Axis Base
See Fig E1-4
Key No.321
See Fig E1-4
Key No.328
See Fig E1-4
Key No.313
See Fig E1-2
Key No.136-01
252
233
231
232
251
203
203
215-01
215-05
214-06
238
248
214-03
214-04
298
299
214-05
214-01
214
238
248
215
215-03
215-04
237
238
246
237
238
246
235
236
211
243
233
210
234
252
245
244
230
229
228
206
240
227
217
226
225
219
212
237
249
213
244
250
255
243
255
253
253
(rear side)
(front side)
244
244
247
247
215-06
See Fig E1-1
Key No.33
See Fig E1-1
Key No.33
