– 99 – B E A M S EC TI O N 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 203 KYB-M260D-00 0914DA0Y Y_MOTOR 4 206 KYB-M220A-00 1010DC57 X_CBL_BKT_BACK 1 210 KYB-M2607-00 1010DC5V CONNECTOR_BKTL1 2 2 11 KYB…
– 98 –
E1
1811-006

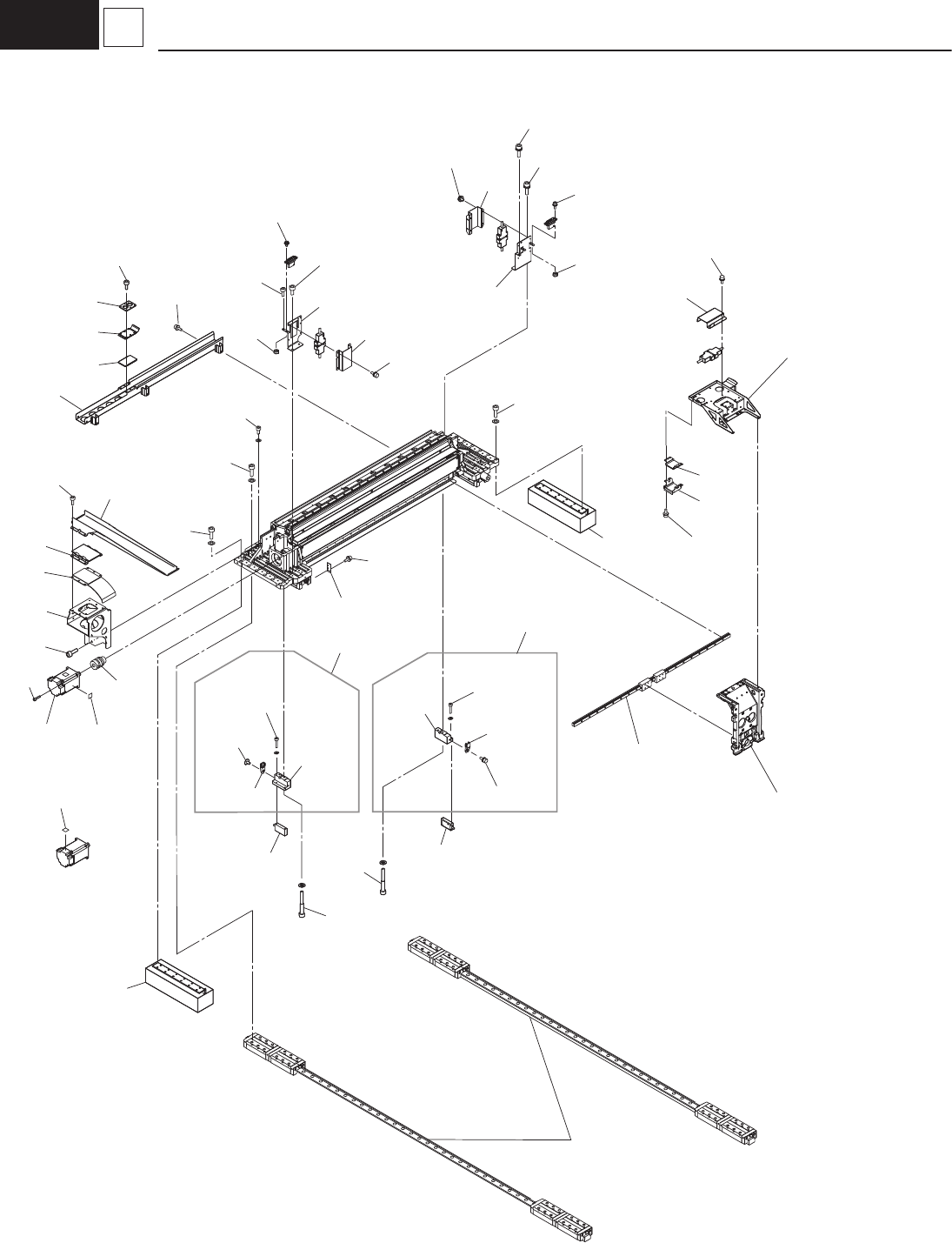

3 X Axis Base
See Fig E1-4
Key No.321
See Fig E1-4
Key No.328
See Fig E1-4
Key No.313
See Fig E1-2
Key No.136-01
252
233
231
232
251
203
203
215-01
215-05
214-06
238
248
214-03
214-04
298
299
214-05
214-01
214
238
248
215
215-03
215-04
237
238
246
237
238
246
235
236
211
243
233
210
234
252
245
244
230
229
228
206
240
227
217
226
225
219
212
237
249
213
244
250
255
243
255
253
253
(rear side)
(front side)
244
244
247
247
215-06
See Fig E1-1
Key No.33
See Fig E1-1
Key No.33
– 99 –
BEAM SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
203 KYB-M260D-00 0914DA0Y Y_MOTOR 4
206 KYB-M220A-00 1010DC57 X_CBL_BKT_BACK 1
210 KYB-M2607-00 1010DC5V CONNECTOR_BKTL1 2
211 KYB-M260A-00 0914DA0P Y_MC_BRACKET_R 2
212 KYB-M220F-00 1010DC2V X_MOTOR 1
213 KYB-M220J-00 1010DC4Q COUPLING 1
214 KYB-M260N-00 10103C5L ASSY_ENCODER_Y-L 2
214-01 KYB-M2610-00 1010DC5B Y_SCALE_BLOCK-1 2
214-03 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 4 M3L14
214-04 92902-03200 221HA103 WASHER,PLAIN 4 FW3
214-05 KYB-M65AW-00 23N30632 WIRING 2
214-06 90990-66J012 221DA207 SCREW,TRUSS HEAD 2 TRS M4L6
215 KYB-M260P-00 10103C5M ASSY_ENCODER_Y-R 2
215-01 KYB-M2611-00 1010DC5C Y_SCALE_BLOCK-2 2
215-03 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 4 M3L14
215-04 92902-03200 221HA103 WASHER,PLAIN 4 FW3
215-05 KYB-M65AW-00 23N30632 WIRING 4
215-06 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 TRS M4L6
219 KYB-M2603-00 1010DC8A CABLE_PILLAR 2
225 KYB-M2617-00 1010DC8D Y_BRACKET_UB_T1 2
226 KYB-M260J-00 1010DC81 Y_CABLE_BRACKET 2
227 KYB-M260K-00 1010DC87 Y_CABLE_BRACKET 2
228 KYB-M260X-00 1010DC54 PLATE 2
229 KYB-M2615-00 1010DC6A BM_CABLE_BRACKET_UP 2
230 KYB-M260Y-00 1010DC55 PLATE 2
231 KYB-M2613-00 1010DC68 BRACKET 2
232 KYB-M2614-00 1010DC69 BRACKET 2
233 KYB-M260E-00 0914DA3D BRACKET 4
234 KYB-M260H-00 1010DC5W CONNECTOR_BRACKET_L2 2
235 91312-08016 221AA055 BOLT,HEX.SOCKET HEAD 48 M8L16
236 92902-08600 221HA207 WASHER,PLAIN 48 FWS8
237 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 48 M5L14
238 92902-05200 221HA105 WASHER,PLAIN 56 FW5
240 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 6
243 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 8 M5L12
244 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 30 M4L10
245 90990-11J009 221DA051 SCREW,PAN HEAD WW 8 PAN M3L6+SW+FW
246 92902-05100 221HA005 WASHER,SPRING 46 SW5
247 95302-03600 221FA005 NUT,HEXAGON 4 M3
248 91312-05040 221AA036 BOLT,HEX.SOCKET HEAD 8 M5L40
249 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8 M5L16
251 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 12 M4L6
252 90990-11J016 221DA053 SCREW,PAN HEAD WW 16 PAN M4L6+SW+FW
253 KYB-M2604-00 10103C6K ASSY_LABEL_HIGH_TEMP 1
255 90990-11J010 221DA056 SCREW,PAN HEAD WW 8 PAN M3L8+SW+FW
– 100 –
E1
1811-006

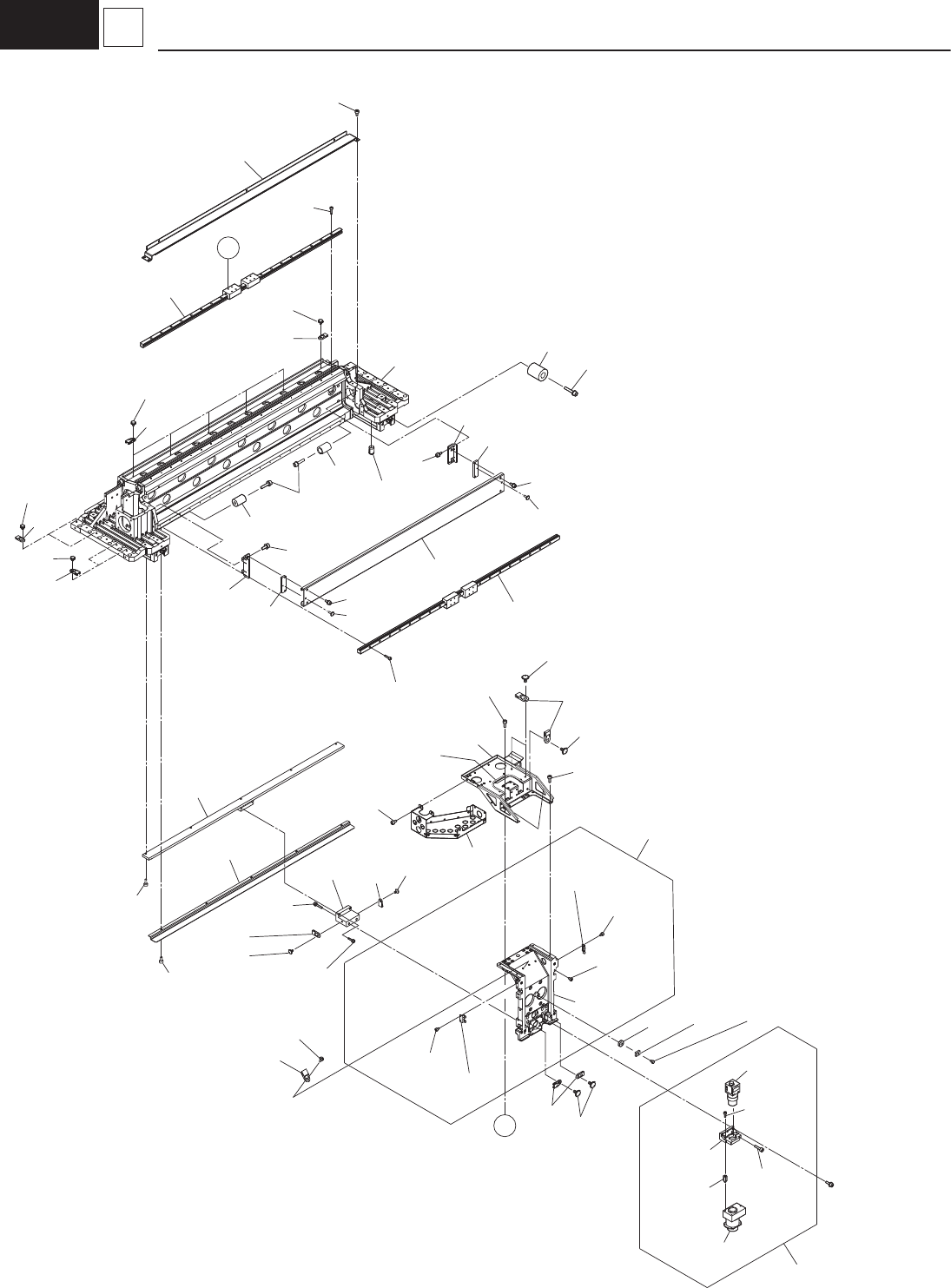

4 X Beam Unit
321
384
372
351
352
362
304-03
304-04
324
304-02
304-02
382
320
373
360
355
359
369
304-01
320-03
325
320-02
320-01
320-05
312
304
320-06
320-07
304-03
368
368
368
368
326
326
326
368
326
368
366
368
326
(rear side)
(front side)
362
350
351
319
311
303
313
370
351
351
360
355
364
355
322
323
314
314
315
302
323
303
318
350
361
301
368
326
370
357
316
368
368
326
326
368
326
357
C
C
