– 119 –

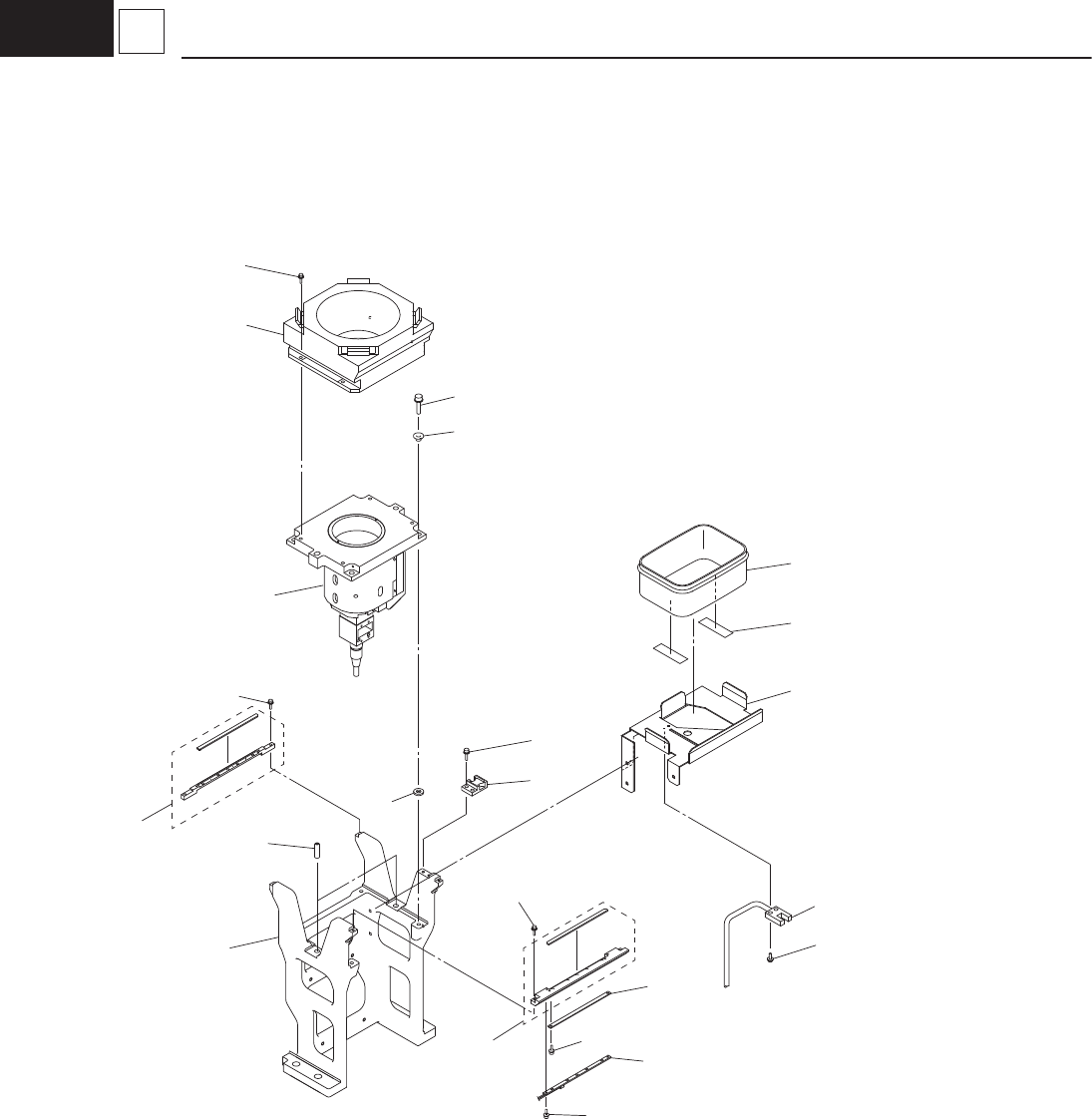

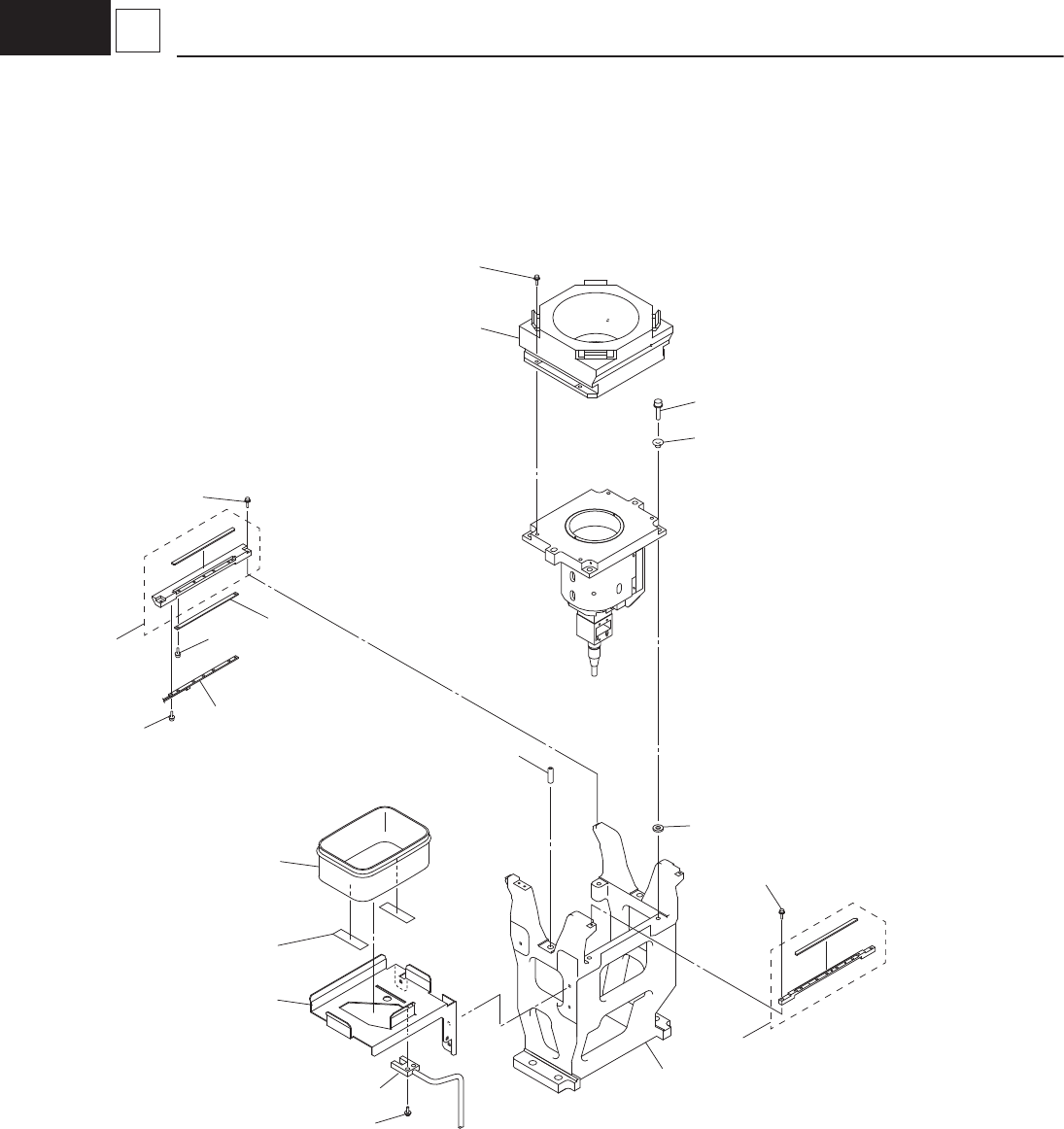

COMPONENT RECOGNITION SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M7303-00 1010GD0C BASE 1
2 KYB-M7318-00 211E1165 SPACER 4
3 KYB-M731B-00 216E1736 PIN_LOCATE 2
4 KYB-M731L-00 23L10051 ACCESSORY-PCB 4
5 KYB-M7319-00 211G5913 BLOCK 1
6 KYB-M7347-00 01006DBR STD.MARK FRONT ASSY. 1
7 KYB-M7348-00 01006DBQ STD.MARK BACK ASSY. 1
8
9 KYB-M7503-00 1010GD04 PLATE 1
10 KYB-M7500-00 0918G055 S-MARK-LIGHT 1
11 KYB-M731P-00 10106D24 STD. CAMERA 1
12 KYB-M730P-00 1010GD05 LIGHTING_UNIT 1
13 90166-02J206 221DA002 SCREW,PAN HEAD 2 PAN M3L8
14 90171-02J026 221HA101 WASHER,PLAIN 2 FW2
15 90990-66J006 221DA218 SCREW,TRUSS HEAD 2 TRS M2L3
16 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
17 92902-04200 221HA104 WASHER,PLAIN 4 FW4
18 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 4 M5L16
19 92902-05200 221HA105 WASHER,PLAIN 4 FW5
20 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 4 M2.5L8
21 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 2 M3L12
22 92902-03200 221HA103 WASHER,PLAIN 2 FW3
31 KYB-M7308-00 1010BH0B BASE 1
32 KYB-M7302-00 1010BH0G DUSTBOX 1
33 KYB-M730L-00 10101H0A ASSY-SENSOR 1
34 KYB-M731A-00 211H0469 SHEET 1
35 90166-12J208 221DA061 SCREW,PAN HEAD WW 2 PAN M3L8+SW+FWS
