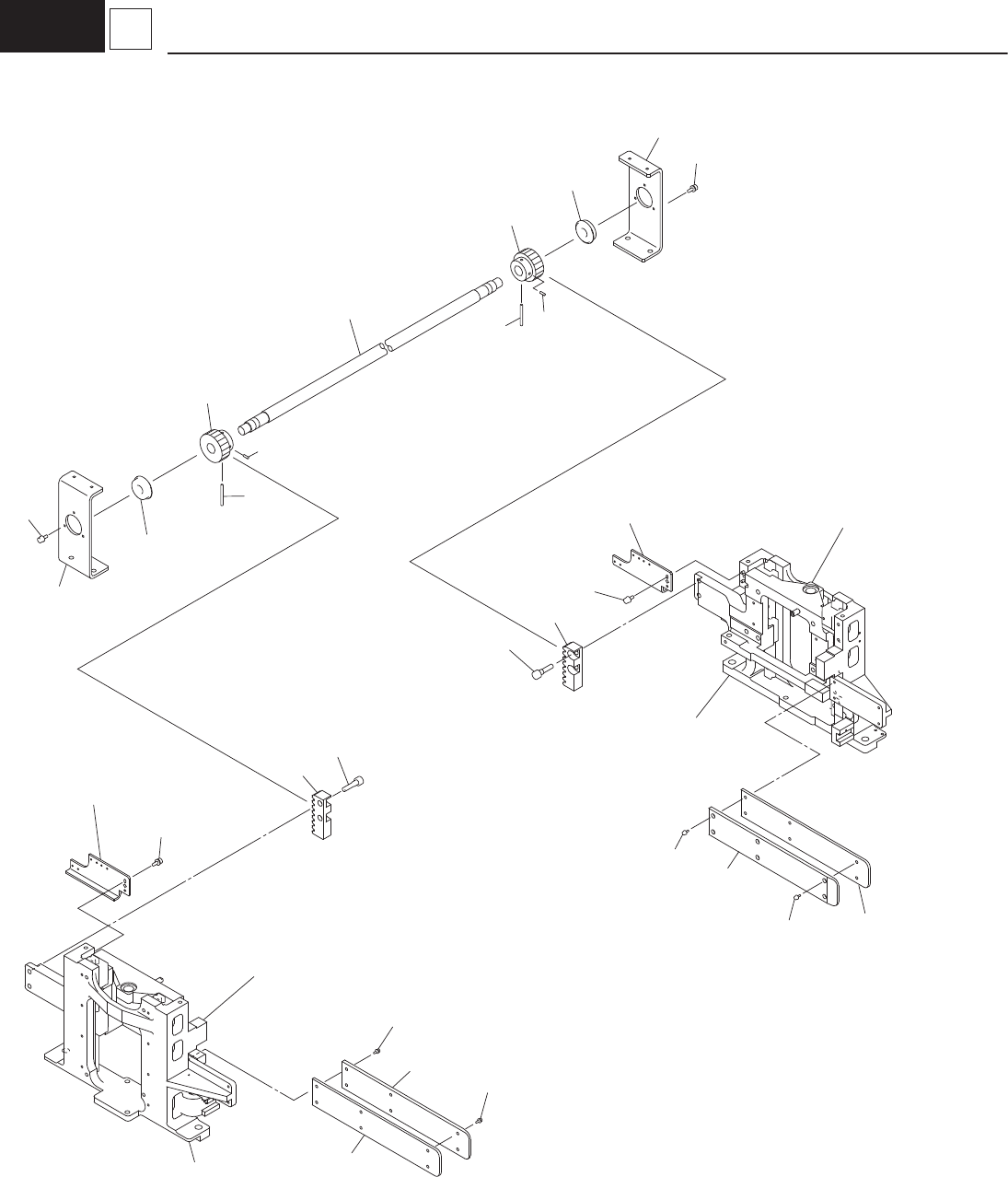

– 122 – E4 181 1-006 E4 POSITIONING UNIT 1 Gear 14 15 13 12 See Fig E4-2 Key No.101 See Fig E4-3 Key No.203 9 8 6 See Fig E4-3 Key No.207 See Fig E4-4 Key No.308 12 14 7 See Fig E4-2 Key No.102 8 9 See Fig E4-4 Key No.30…

100%1 / 284
– 121 –
COMPONENT RECOGNITION SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M7303-00 1010GD0C BASE 1
102 KYB-M7318-00 211E1165 SPACER 4
103 KYB-M731B-00 216E1736 PIN_LOCATE 2
104 KYB-M731L-00 23L10051 ACCESSORY-PCB 4
106 KYB-M7347-00 01006DBR STD.MARK FRONT ASSY. 1
107 KYB-M7348-00 01006DBQ STD.MARK BACK ASSY. 1
108
109 KYB-M7503-00 1010GD04 PLATE 1
110 KYB-M7500-00 0918G055 S-MARK-LIGHT 1
111 KYB-M731P-00 10106D24 STD. CAMERA 1
112 KYB-M730P-00 1010GD05 LIGHTING_UNIT 1
113 90166-02J206 221DA002 SCREW,PAN HEAD 2 PAN M3L8
114 90171-02J026 221HA101 WASHER,PLAIN 2 FW2
115 90990-66J006 221DA218 SCREW,TRUSS HEAD 2 TRS M2L3
116 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
117 92902-04200 221HA104 WASHER,PLAIN 4 FW4
118 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 4 M5L16
119 92902-05200 221HA105 WASHER,PLAIN 4 FW5
120 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 4 M2.5L8
131 KYB-M7308-00 1010BH0B BASE 1
132 KYB-M7302-00 1010BH0G DUSTBOX 1
133 KYB-M730L-00 10101H0A ASSY-SENSOR 1
134 KYB-M731A-00 211H0469 SHEET 1
135 90166-12J208 221DA061 SCREW,PAN HEAD WW 2 PAN M3L8+SW+FWS
– 122 –
E4
1811-006
E4 POSITIONING UNIT
1 Gear
14
15
13
12
See Fig E4-2
Key No.101
See Fig E4-3
Key No.203
9
8
6
See Fig E4-3
Key No.207
See Fig E4-4
Key No.308
12
14
7
See Fig E4-2
Key No.102
8
9
See Fig E4-4
Key No.305
15
13
11
10
10
16
16
11
22
21
22
23
24
24
23
– 123 –
POSITIONING UNIT
1811-006
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi Front Rear
6 KYB-M3J1T-00 223E0496 GEAR 1 1
7 KYB-M3J1U-00 223E0497 GEAR 1 1
8 KYB-M3J18-00 211DE692 PLATE 2 2
9 KYB-M3J19-00 211DE693 PLATE 2 2
10 KYB-M3J2G-00 222D0087 BEARING_RADIAL 2 2
11 KYB-M3J14-00 1010BJ12 SHAFT_BASE 2 2
12 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 2 M5L12
13 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 4 4 M4L6
14 91312-08016 221AA055 BOLT,HEX.SOCKET HEAD 4 4 M8L16
15 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 8 8 M4L12
16 90990-66J012 221DA207 SCREW,TRUSS HEAD 6 6 TRS M4L6
21 KYB-M3J1A-00 213A1569 SHAFT 1 1
22 KYB-M3J1V-00 223E0498 GEAR 2 2
23 90990-02J025 221CA044 SCREW,SET 2 2 SET M4L10
24 91609-40036 221J0029 PIN,SPRING 2 2
