– 131 – POSITI ON IN G U NIT 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi Front Rear 401 KYB-M3J1H-00 0929E105 TUBE D6 1 1 403 KYB-M8515-00 1005AB0W PIPE_FITTINGS 2 2

– 130 –

1811-006

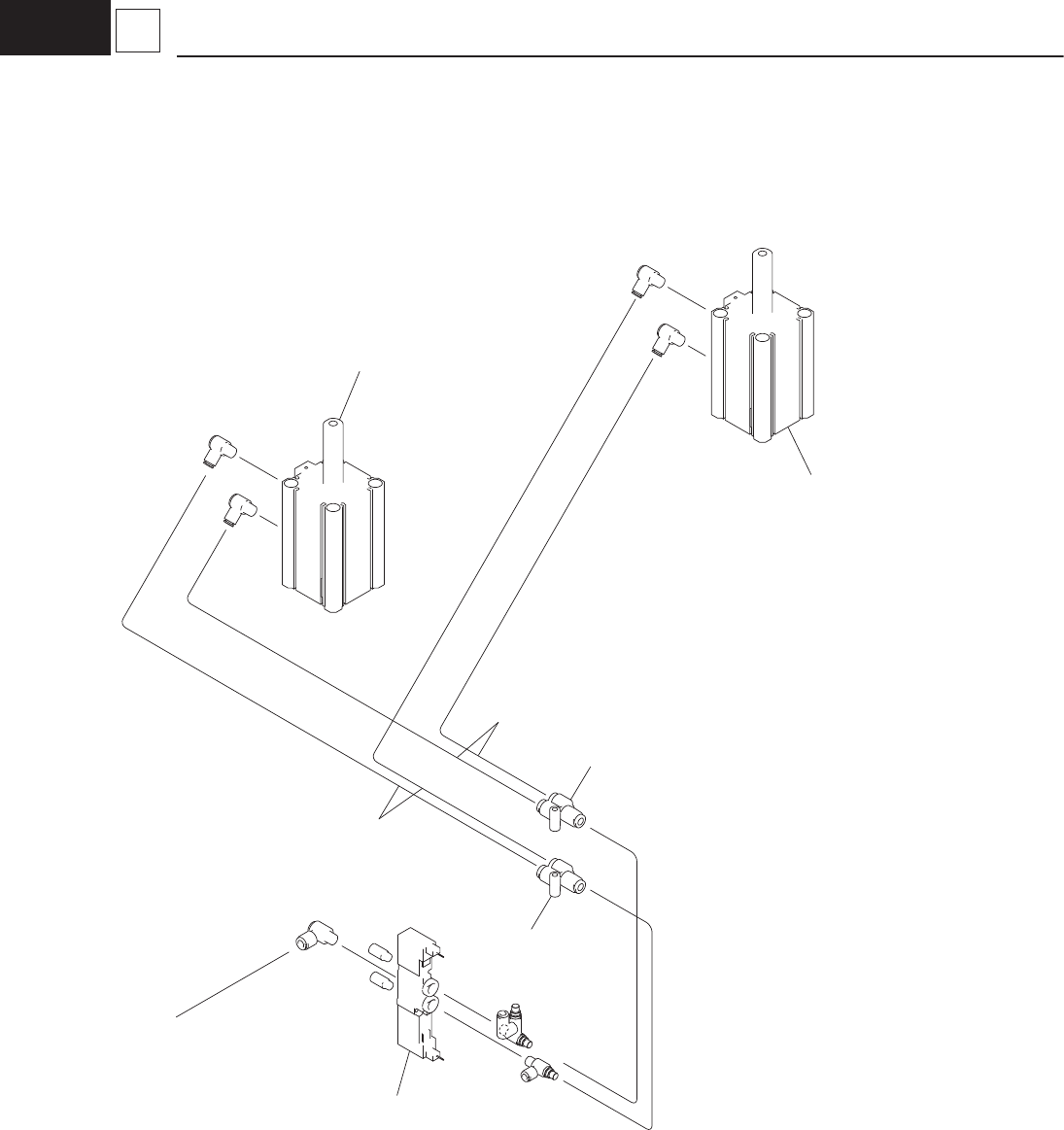

5 Air Piping

403

401

From Main Body

See Fig E4-3

Key No.205

See Fig E4-4

Key No.303

See Fig E4-3

Key No.202

– 131 –

POSITIONING UNIT

1811-006

No.

Part No.

Part Name

Qty.

Detail

Yamaha Hitachi Front Rear

401 KYB-M3J1H-00 0929E105 TUBE D6 1 1

403 KYB-M8515-00 1005AB0W PIPE_FITTINGS 2 2

– 132 –

1811-006

E5 ELECTRICAL SECTION 3

1 I/F Connector, PCB

1-01

1-02

1-03

1-05

1-06

1-07

1-08

1-09

1-04

1-10

1-01

1-02

1-03

1-06

1-07

1-08

1-05

1-10

1-09

1-04
