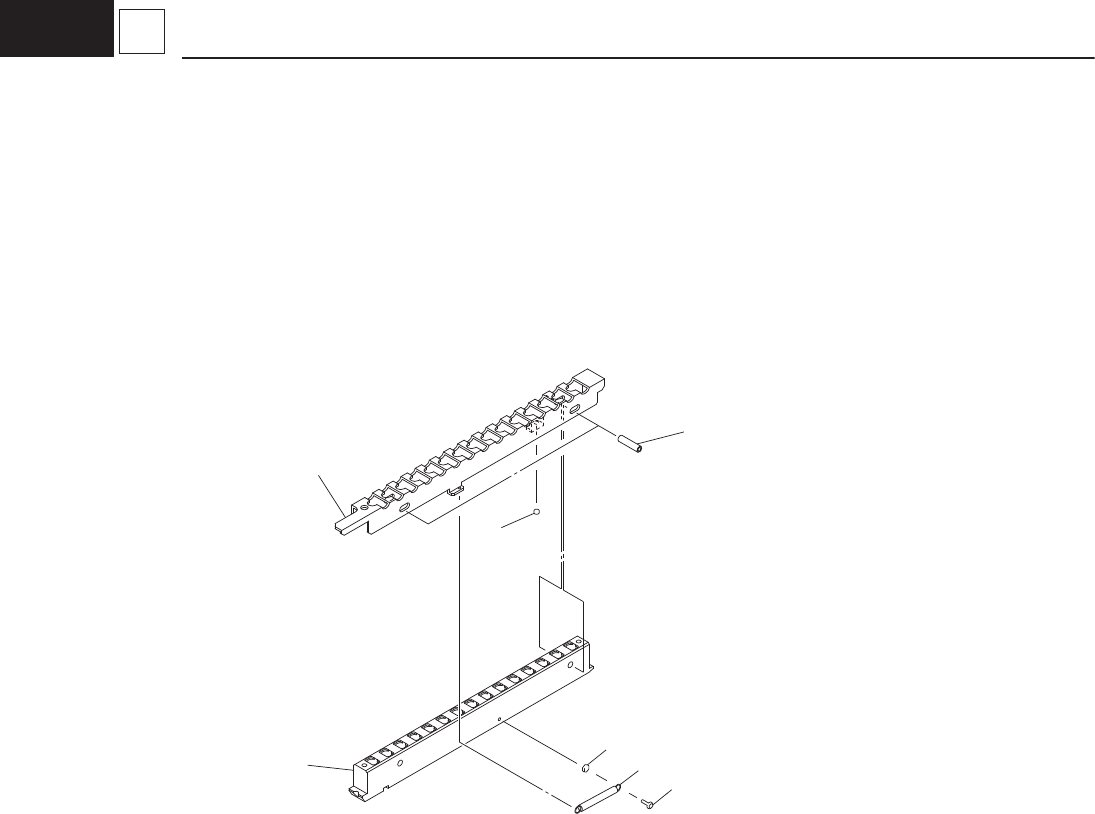

– 162 – G2 181 1-006 3 Nozzle Stocker Changing Section 205 204 201 203 202 207 206
– 161 –
HIGH SPPED NOZZLE STOCKER SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M960S-00 1013000Y ASSY-NH-CYL-SENSOR 1
104 KYB-M9625-00 212A2815 GUIDE 1
105 KYB-M962U-00 216A1615 COLLAR 1
106 KYB-M962K-00 216S3241 LEVER 1
107 KYB-M962D-00 216D0603 PIN_HINGE 1
108 90933-01J693 222D0004 BEARING_RADIAL 2
109 KYB-M963F-00 222N0019 SPRING_TENSION 1
110 KYB-M961W-00 211F8213 BRACKET 1
111 KYB-M961X-00 211F8214 BRACKET 1
112 KYB-M961S-00 211D9588 PLATE 1
113 KYB-M963E-00 222M0657 SPRING_COMP 1
114 KYB-M9615-00 211G3505 BLOCK 1
115 KYB-M962J-00 216S2914 LEVER 1
116 KYB-M9626-00 213A1660 SHAFT 1
117 $M-3AU-4 225F0261 PIPE FITTINGS 1
118 91312-03030 221AA013 BOLT,HEX.SOCKET HEAD 2 M3L30
119 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 2 M3L12
120 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 2 M3L8
121 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
122 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 2 M2.5L10
123 90112-02J006 221AA001 BOLT,HEX.SOCKET HEAD 2 M2L6
124 90132-03J020 221BA003 BOLT,HEXAGON 1 BOLT_HEX M3L20
125 90166-02J208 221DA003 SCREW,PAN HEAD 3 PAN M2L8
126 90990-02J019 221CA026 SCREW,SET 2 SET M3L3
127 92902-03100 221HA003 WASHER,SPRING 2 SW3
128 90171-02J026 221HA101 WASHER,PLAIN 2 FW2
129 92902-03600 221HA203 WASHER,PLAIN 4 FWS3
130 95302-03600 221FA005 NUT,HEXAGON 1 M3
131 90189-02J2A6 221FA003 NUT,HEXAGON 1 M2.5
132 90990-15J013 221FA001 NUT,HEXAGON 1 M2
133 90440-01J030 221KA003 CIRCLIP 2 E RING 3
134 KYB-M960Y-00 1013IH18 CYLINDER 1
– 163 –
HIGH SPPED NOZZLE STOCKER SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M380G-00 0919I02S STOCKER_BLOCK 1
202 KYB-M380F-00 0919I025 PLATE 1
203 91609-40016 221J1002 PIN,SPRING 2
204 KYB-M382E-00 222N0067 SPRING_TENSION 1
205 KYB-M3824-00 226J1958 MECH-P MAGNET 1
206 90166-02J206 221DA002 SCREW,PAN HEAD 1 PAN M2L6
207 90990-15J013 221FA001 NUT,HEXAGON 1 M2
