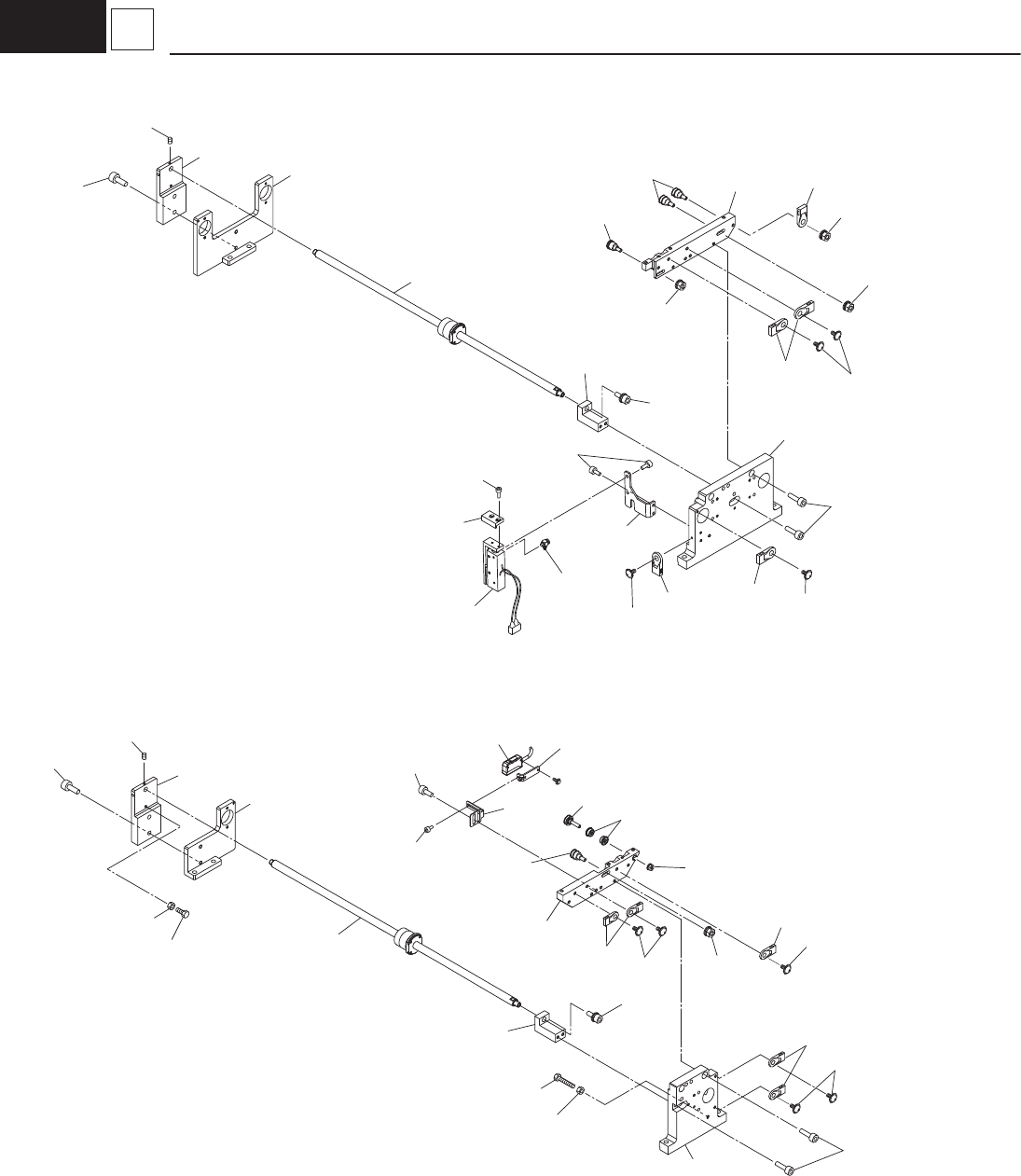

SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
102 KYB-M916F-00 10122308 ASSY-CHUTE-ORG 1
103 KYB-M91DB-00 23G00312 BRACKET 2
104 97602-03312 221DA047 SCREW,PAN HEAD WW 2 PAN M3L12 SW+FW
105 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 4 M3L6
111 KYB-M911J-00 1012C09H BASE 1
112 KYB-M9169-00 10122302 ASSY-CV-VALVE 1
113 KYB-M913A-00 0921A059 AIR_LINE_EQPT 8
114 KYB-M9132-00 1012C09G BASE_BRACKET 1
115 KYB-M917W-00 1012C073 BASE_L_BRACKET 2
116 KYB-M91BW-00 1012C09F AIR_BRACKET 2
117 KYB-M912R-00 1012C05D BASE_BRACKET_L 1
118 KYB-M9185-00 1012C088 CABLE_VEYOR 2
119 KYB-M91D4-00 226J2510 CABLE_VEYOR 4
121 90990-66J012 221DA207 SCREW,TRUSS HEAD 18 TRS M4L6
122 91312-04035 221AA024 BOLT,HEX.SOCKET HEAD 4 M4L35
123 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 4 M4L6
124 90990-66J008 221DA203 SCREW,TRUSS HEAD 4 TRS M3L6
129 90990-11J016 221DA053 SCREW,PAN HEAD WW 13 PAN M4L6 SW+FW
130 KYB-M65AW-00 23N30632 WIRING 13
131 KYB-M9187-00 1012C091 GUIDE_LINEAR 2
132 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 18 M4L16
– 173 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M917M-00 1012C055 BLOCK_1L 1
202 KYB-M912P-00 1012C054 BLOCK_1R 1
203 KYB-M9180-00 1012C079 T_BRACKET_1L 1
204 KYB-M9181-00 1012C07A T_BRACKET_1R 1
205 KYB-M918A-00 1012C096 SUPPORT_BS_UP_L 1
206 KYB-M918B-00 1012C097 SUPPORT_BS_UP_R 1
207 KYB-M91AS-00 1012C057 SUPPORT_BS_LO 2
208 KYB-M91BT-00 1012C08Y SCREW_BLOCK 2
209 KYB-M919D-00 223B0474 BALL_SCREW 2
210 KYB-M916J-00 1012230B ASSY-STOPPER-R 1
211 KYB-M91CD-00 211G5843 BLOCK 1
212 KYB-M91BK-00 1012C084 STOPPER_BRACKET_2 1
213 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
214 KYB-M916B-00 10122304 ASSY-BOARD-DET 1
215 KYB-M91BH-00 1012C07X BRACKET_LRI 1
216 KYB-M919S-00 0917C41F BRACKET 2
217 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8 M5L16
218 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
219 92902-05200 221HA105 WASHER,PLAIN 7 FW5
220 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 4 M6L14
221 90990-02J024 221CA005 SCREW,SET 4 SET M4L6
222 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
223 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 2 M3L8
224 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2 M5L10
225 90990-01J138 221AA099 BOLT,HEX.S/H WW 1 M3L6 SW+FW
226 90990-07J010 221BA022 BOLT,HEXAGON 1 BOLT_HEX M5L50
227 95302-05600 221FA009 NUT,HEXAGON 5 M5
228 97002-04010 221BB002 BOLT,HEXAGON 1 BOLT_HEX M4L10
229 95302-04600 221FA007 NUT,HEXAGON 1 M4
230 90990-66J015 221DA212 SCREW,TRUSS HEAD 5 TRS M5L6
231 90990-66J012 221DA207 SCREW,TRUSS HEAD 6 TRS M4L6
232 KYB-M65AW-00 23N30632 WIRING 8
233 KYB-M91BM-00 1012C08D PUULEY_FLAT 3
234 KYB-M91B8-00 1012C071 PULLEY_FLAT 1
235 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1
236 90933-03J693 222D0016 BEARING_RADIAL 2
237 95302-03600 221FA005 NUT,HEXAGON 1 M3
238 92902-03100 221HA003 WASHER,SPRING 1 SW3
239 92902-03600 221HA203 WASHER,PLAIN 1 FWS3
240 92902-05100 221HA005 WASHER,SPRING 3 SW5
