– 12 – B1 181 1-006 B1 COVER SECTION 1 Cover 14 14 14 21 14 14 14 14 14 14 14 13 14 21 14 12 11 17 8 7 9 4 16 See Fig B1-2 Key No.131 3 30 6 5

– 11 –

UNIT-1: COVER SECTION

CONTENTS

B1 COVER SECTION 12

1 Cover 12

2 Feeder Cover 16

3 CO/C Door C 18

4 O/C Door LR / Door Assy 20

– 12 –

1811-006

B1 COVER SECTION

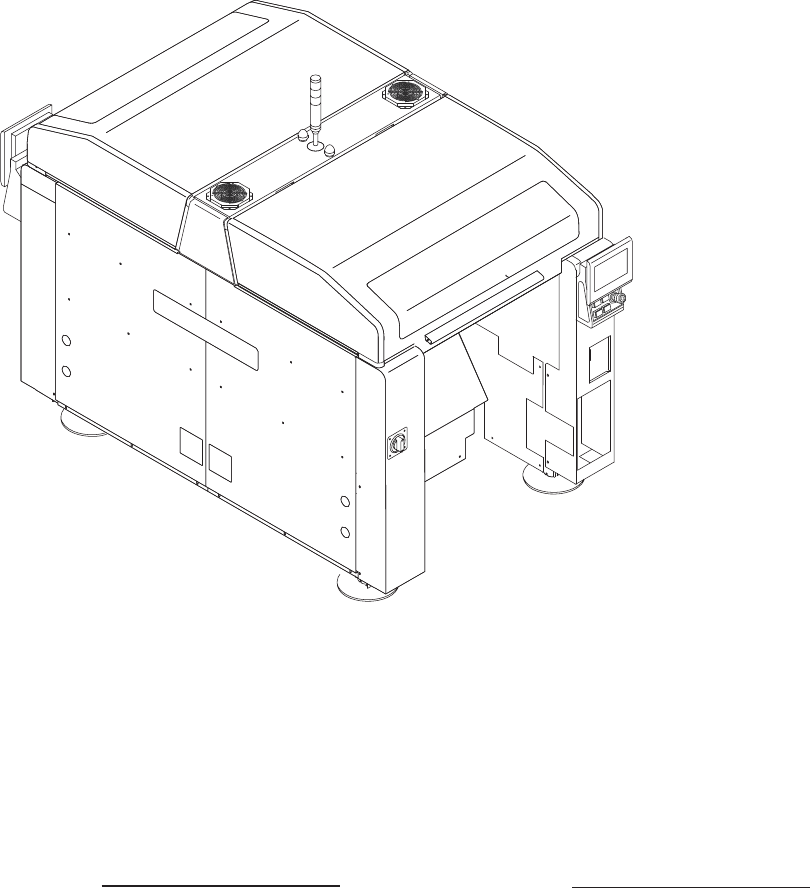

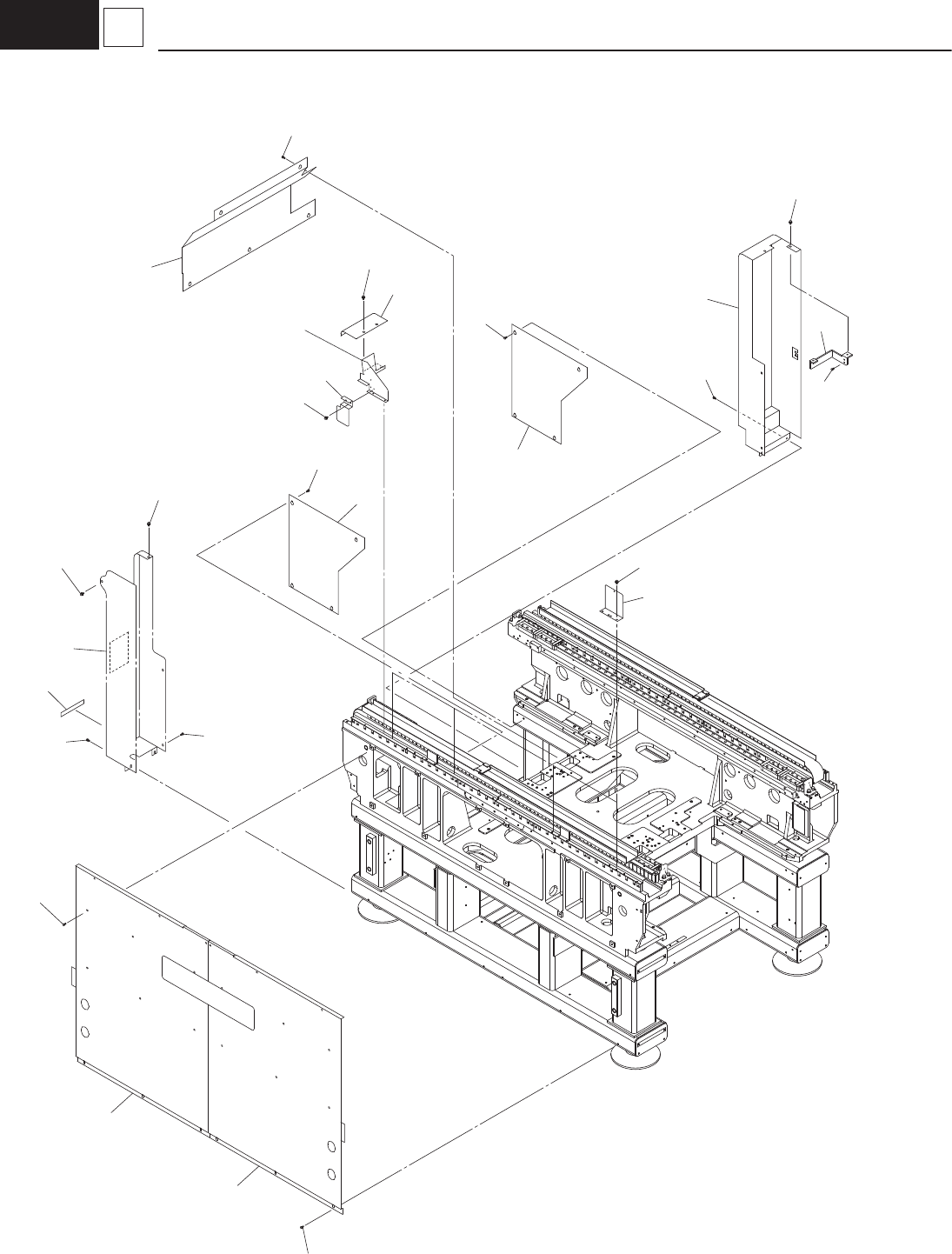

1 Cover

See Fig B1-2

Key No.131

– 13 –

COVER SECTION

1811-006

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

1 KYB-M130K-00 1010FG23 COVER_CORNER_LF 1

2 KYB-M130G-00 1010FG20 COVER_CORNER_RF 1

3 KYB-M130H-00 1010FG21 COVER_CORNER_LB 1

4 KYB-M130J-00 1010FG22 COVER_CORNER_RB 1

5 KYB-M1306-00 1010FG31 COVER_SIDE_1:SECC 2

6 KYB-M1307-00 1010FG32 COVER_SIDE_2:SECC 2

7 KYB-M1316-00 1010FG1S BRACKET 8

8 KYB-M131B-00 1010FG3B COVER_INNER-1 1

9 KYB-M131C-00 1010FG3C COVER_INNER-2 2

10 KYB-M1309-00 1010FG3L COVER_LOWER 1

11 KYB-M1308-00 1010FG3K COVER_LOWER 1

12 KYB-M1315-00 1010FG1G COVER 2

13 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 16 M5L12

14 90990-66J017 221DA221 SCREW,TRUSS HEAD 96 TRS M5L8

15 KYB-M131D-00 1010FG3D COVER_INNER-FR 1

16 KYB-M1314-00 1010FG0N BRACKET_COVER 2

KYB-M131V-00

1010FG0Q

BRACKET_COVER

91312-04008

221AA016

BOLT,HEX.SOCKET HEAD

8 M4L8
