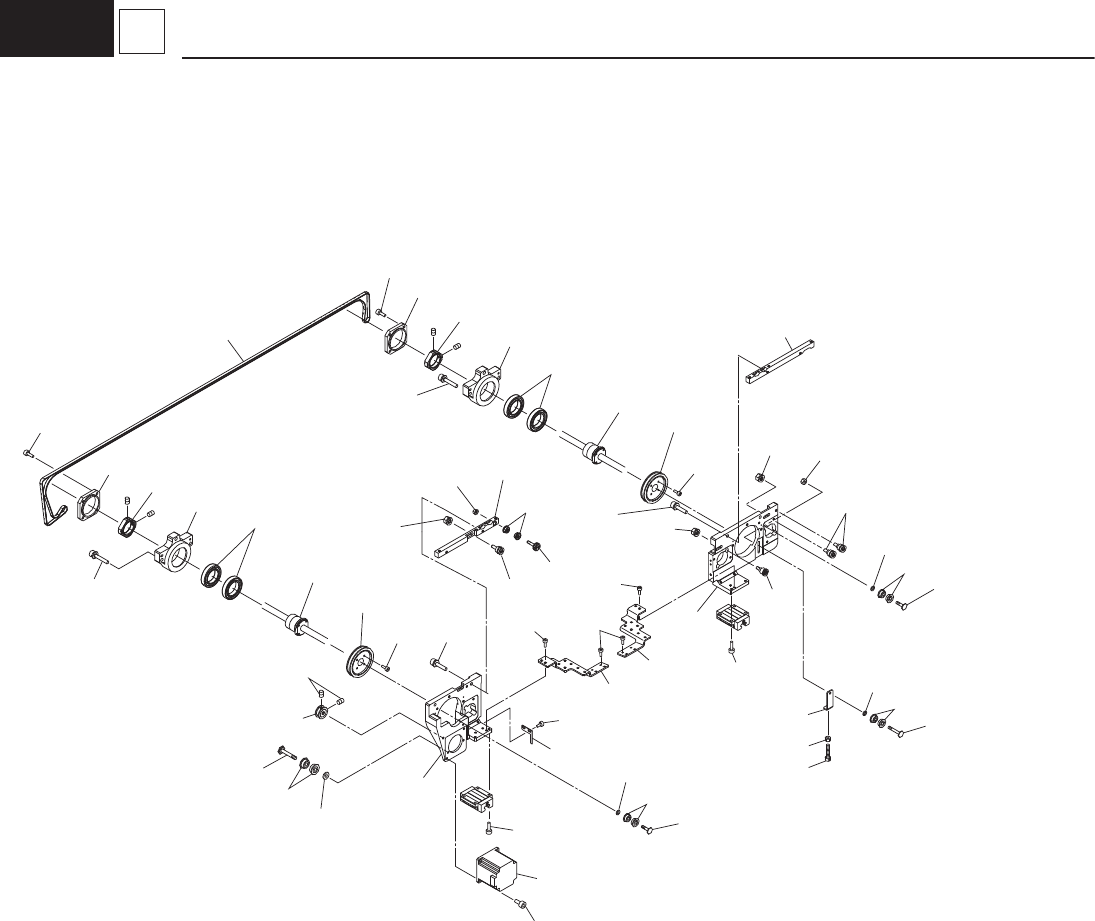

– 174 – H1 181 1-006 4 Moved Base 331 332 315 313 329 327 327 335 336 337 316 316 322 306 316 304 303 3 11 319 318 338 319 319 313 338 333 328 302 301 317 319 314 330 312 3 11 329 320 321 334 334 323 325 326 339 324 325 …
– 173 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M917M-00 1012C055 BLOCK_1L 1
202 KYB-M912P-00 1012C054 BLOCK_1R 1
203 KYB-M9180-00 1012C079 T_BRACKET_1L 1
204 KYB-M9181-00 1012C07A T_BRACKET_1R 1
205 KYB-M918A-00 1012C096 SUPPORT_BS_UP_L 1
206 KYB-M918B-00 1012C097 SUPPORT_BS_UP_R 1
207 KYB-M91AS-00 1012C057 SUPPORT_BS_LO 2
208 KYB-M91BT-00 1012C08Y SCREW_BLOCK 2
209 KYB-M919D-00 223B0474 BALL_SCREW 2
210 KYB-M916J-00 1012230B ASSY-STOPPER-R 1
211 KYB-M91CD-00 211G5843 BLOCK 1
212 KYB-M91BK-00 1012C084 STOPPER_BRACKET_2 1
213 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
214 KYB-M916B-00 10122304 ASSY-BOARD-DET 1
215 KYB-M91BH-00 1012C07X BRACKET_LRI 1
216 KYB-M919S-00 0917C41F BRACKET 2
217 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 8 M5L16
218 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
219 92902-05200 221HA105 WASHER,PLAIN 7 FW5
220 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 4 M6L14
221 90990-02J024 221CA005 SCREW,SET 4 SET M4L6
222 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
223 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 2 M3L8
224 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2 M5L10
225 90990-01J138 221AA099 BOLT,HEX.S/H WW 1 M3L6 SW+FW
226 90990-07J010 221BA022 BOLT,HEXAGON 1 BOLT_HEX M5L50
227 95302-05600 221FA009 NUT,HEXAGON 5 M5
228 97002-04010 221BB002 BOLT,HEXAGON 1 BOLT_HEX M4L10
229 95302-04600 221FA007 NUT,HEXAGON 1 M4
230 90990-66J015 221DA212 SCREW,TRUSS HEAD 5 TRS M5L6
231 90990-66J012 221DA207 SCREW,TRUSS HEAD 6 TRS M4L6
232 KYB-M65AW-00 23N30632 WIRING 8
233 KYB-M91BM-00 1012C08D PUULEY_FLAT 3
234 KYB-M91B8-00 1012C071 PULLEY_FLAT 1
235 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1
236 90933-03J693 222D0016 BEARING_RADIAL 2
237 95302-03600 221FA005 NUT,HEXAGON 1 M3
238 92902-03100 221HA003 WASHER,SPRING 1 SW3
239 92902-03600 221HA203 WASHER,PLAIN 1 FWS3
240 92902-05100 221HA005 WASHER,SPRING 3 SW5
– 175 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301 KYB-M911C-00 1012C059 BLOCK_2L 1
302 KYB-M911B-00 1012C058 BLOCK_2R 1
303 KYB-M917V-00 1012C064 T_BRACKET_2L 1
304 KYB-M917U-00 1012C063 T_BRACKET_2R 1
305 KYB-M919D-00 223B0474 BALL_SCREW 2
306 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
307 KYB-M9186-00 1012C090 BEARING_HOLDER 1
308 KYB-M91CM-00 216B1798 HOLDER 2
309 KYB-M91ER-00 222D0423 BEARING_ANGULAR 4
310 KYB-M91CT-00 223L0327 BELT_TIMING 1
311 KYB-M91D1-00 223Q0767 PULLEY_TIMING 2
312 KYB-M91CY-00 223Q0758 PULLEY_TIMING 1
313 KYB-M91CG-00 213A1581 SHAFT 2
314 KYB-M91BR-00 1012C08W SHAFT 2
315 KYB-M91CF-00 213A1574 SHAFT 1
316 KYB-M91CK-00 216A1600 COLLAR(T0.4) 3
317 KYB-M91BS-00 1012C08X COLLAR(T2.7) 2
318 KYB-M91A3-00 0948C40Y TENSIONBRACKET 1
319 90933-03J624 222D0017 BEARING_RADIAL 10
320 KYB-M9183-00 1012C07T CABLE_BRACKET_R 1
321 KYB-M9184-00 1012C07U CABLE_BRACKET_L 1
322 KYB-M91BJ-00 1012C07Y SENSOR_PLATE 1
323 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 4 M5L20
324 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 6 M5L25
325 92902-05100 221HA005 WASHER,SPRING 13 SW5
326 92902-05200 221HA105 WASHER,PLAIN 13 FW5
327 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 8 M4L10
328 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2 M5L10
329 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 8 M3L8
330 90990-02J024 221CA005 SCREW,SET 2 SET M4L6
331 90132-03J020 221BA003 BOLT,HEXAGON 1 BOLT_HEX M3L20
332 95302-03600 221FA005 NUT,HEXAGON 1 M3
333 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
334 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
335 95302-04600 221FA007 NUT,HEXAGON 1 M4
336 92902-04100 221HA004 WASHER,SPRING 1 SW4
337 92902-04200 221HA104 WASHER,PLAIN 1 FW4
338 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 8 M4L12
339 90990-66J008 221DA203 SCREW,TRUSS HEAD 4 TRS M3L6
340 KYB-M91B8-00 1012C071 PULLEY_FLAT 1
341 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1
342 90933-03J693 222D0016 BEARING_RADIAL 2
343 92902-03100 221HA003 WASHER,SPRING 1 SW3
344 92902-03600 221HA203 WASHER,PLAIN 1 FWS3
345 95302-05600
221FA009
NUT,HEXAGON 3 M5
346 KYB-M91BM-00 1012C08D PUULEY_FLAT 2
347 KYB-M91BN-00 1012C08E PULLEY_FLAT 1
