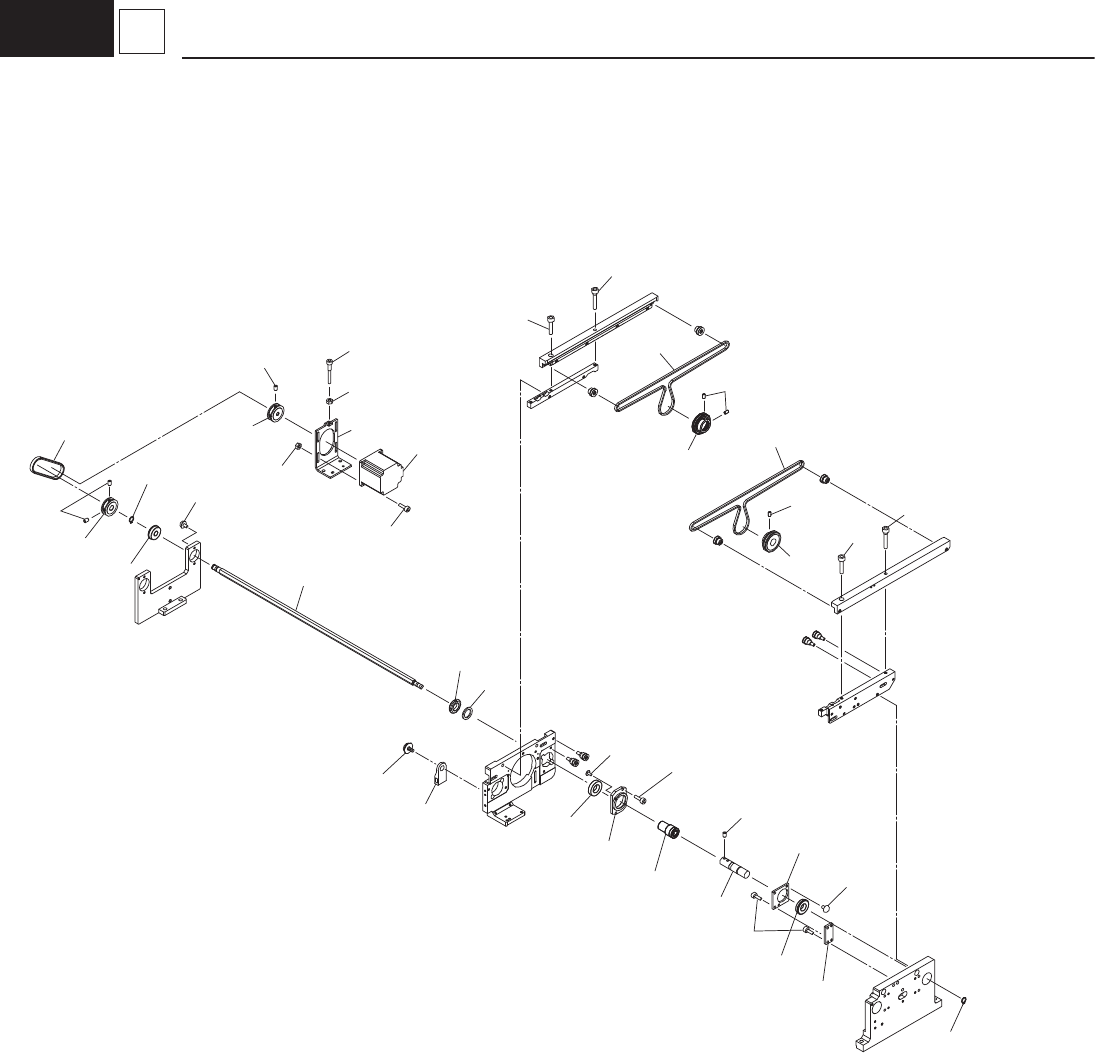

SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
501 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
502 KYB-M918C-00 1012C098 M_BRACKET_CL 1
503 KYB-M91BP-00 1012C08N PULLEY_TIMING 1
504 KYB-M91AU-00 1012C06J PULLEY_TIMING 1
505 KYB-M91AV-00 1012C06K BELT_TIMING 1
506 99009-10400 221K0076 CIRCLIP 1
507 KYB-M91EL-00 222D0021 BEARING,RADIAL 1
508 KYB-M912W-00 1012C08A ROD_SHAFT_SLIDE 1
509 KYB-M91BU-00 1012C08Z BEARING_NUT 1
510 KYB-M91BB-00 1012C07J COLLAR 1
511 90933-01J903 222D0106 BEARING_RADIAL 1
512 KYB-M91AW-00 1012C06N BEARING_BLOCK 1
513 KYB-M91B1-00 1012C06S PULLEY_TIMING 1
514 KYB-M91B2-00 1012C06T PULLEY_TIMING 1
515 KYB-M919E-00 223L0383 BELT_TIMING 1
516 KYB-M91B3-00 1012C06V ROD_SHAFT 1
517 KYB-M91EP-00 222D0372 BEARING_RADIAL 1
518 KYB-M91B4-00 1012C06W S_BRACKET_CR1 1
519 KYB-M91B7-00 1012C06Z S_BRACKET_CRL2 1
520 99009-15400 221K0079 CIRCLIP 1
522 KYB-M9189-00 1012C095 PULLEY_COVER_R 1
525 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2 M5L25
526 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2 M5L20
527 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 4 M4L20
528 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
529
95302-04600
221FA007 NUT,HEXAGON 3 M4
530 92902-04200 221HA104 WASHER,PLAIN 2 FW4
531 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4 M4L10
532 90990-66J011 221DA217 SCREW,TRUSS HEAD 2 TRS M4L4
533 90990-02J024 221CA005 SCREW,SET 4 SET M4L6
534 90990-02J026 221CA007 SCREW,SET 6 SET M5L6
536 92902-05100 221HA005 WASHER,SPRING 2 SW5
537 92902-05200 221HA105 WASHER,PLAIN 2 FW5
538 90990-66J008 221DA203 SCREW,TRUSS HEAD 2 TRS M3L6
539 90990-66J007 221DA202 SCREW,TRUSS HEAD 2 TRS M3L4
540 90990-66J012 221DA207 SCREW,TRUSS HEAD 2 TRS M4L6
541 90990-07J009 221BA009 BOLT,HEXAGON 1 BOLT_HEX M4L25
– 181 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
601 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
602 KYB-M9182-00 1012C07E M_BRACKET_R 1
603 KYB-M91BP-00 1012C08N PULLEY_TIMING 1
604 KYB-M91AU-00 1012C06J PULLEY_TIMING 1
605 KYB-M91BA-00 1012C07H BELT_TIMING 1
606 99009-10400 221K0076 CIRCLIP 1
607 KYB-M91EL-00 222D0021 BEARING,RADIAL 1
608 KYB-M912W-00 1012C08A ROD_SHAFT_SLIDE 1
609 KYB-M91BU-00 1012C08Z BEARING_NUT 1
610 KYB-M91BB-00 1012C07J COLLAR 1
611 90933-01J903 222D0106 BEARING_RADIAL 1
612 KYB-M91AW-00 1012C06N BEARING_BLOCK 1
613 KYB-M91AX-00 1012C06P PULLEY_TIMING 1
614 KYB-M91AY-00 1012C06Q PULLEY_TIMING 1
615 KYB-M91B6-00 1012C06Y BELT_TIMING 1
616 KYB-M91B3-00 1012C06V ROD_SHAFT 1
617 KYB-M91EP-00 222D0372 BEARING_RADIAL 1
618 KYB-M91B4-00 1012C06W S_BRACKET_CR1 1
619 KYB-M91B7-00 1012C06Z S_BRACKET_CRL2 1
620 99009-15400 221K0079 CIRCLIP 1
622 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2 M5L20
623 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2 M5L25
624 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
625
95302-04600
221FA007 NUT,HEXAGON 3 M4
626 92902-04200 221HA104 WASHER,PLAIN 2 FW4
627 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4 M4L10
628 90990-66J011 221DA217 SCREW,TRUSS HEAD 2 TRS M4L4
629 90990-02J024 221CA005 SCREW,SET 4 SET M4L6
630 90990-02J026 221CA007 SCREW,SET 6 SET M5L6
634 90990-66J008 221DA203 SCREW,TRUSS HEAD 2 TRS M3L6
635 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 1 M4L25
636 90990-66J012 221DA207 SCREW,TRUSS HEAD 3 TRS M4L6
637 KYB-M65AW-00 23N30632 WIRING 1
