SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
601 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
602 KYB-M9182-00 1012C07E M_BRACKET_R 1
603 KYB-M91BP-00 1012C08N PULLEY_TIMING 1
604 KYB-M91AU-00 1012C06J PULLEY_TIMING 1
605 KYB-M91BA-00 1012C07H BELT_TIMING 1
606 99009-10400 221K0076 CIRCLIP 1
607 KYB-M91EL-00 222D0021 BEARING,RADIAL 1
608 KYB-M912W-00 1012C08A ROD_SHAFT_SLIDE 1
609 KYB-M91BU-00 1012C08Z BEARING_NUT 1
610 KYB-M91BB-00 1012C07J COLLAR 1
611 90933-01J903 222D0106 BEARING_RADIAL 1
612 KYB-M91AW-00 1012C06N BEARING_BLOCK 1
613 KYB-M91AX-00 1012C06P PULLEY_TIMING 1
614 KYB-M91AY-00 1012C06Q PULLEY_TIMING 1
615 KYB-M91B6-00 1012C06Y BELT_TIMING 1
616 KYB-M91B3-00 1012C06V ROD_SHAFT 1
617 KYB-M91EP-00 222D0372 BEARING_RADIAL 1
618 KYB-M91B4-00 1012C06W S_BRACKET_CR1 1
619 KYB-M91B7-00 1012C06Z S_BRACKET_CRL2 1
620 99009-15400 221K0079 CIRCLIP 1
622 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2 M5L20
623 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2 M5L25
624 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
625
95302-04600
221FA007 NUT,HEXAGON 3 M4
626 92902-04200 221HA104 WASHER,PLAIN 2 FW4
627 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4 M4L10
628 90990-66J011 221DA217 SCREW,TRUSS HEAD 2 TRS M4L4
629 90990-02J024 221CA005 SCREW,SET 4 SET M4L6
630 90990-02J026 221CA007 SCREW,SET 6 SET M5L6
634 90990-66J008 221DA203 SCREW,TRUSS HEAD 2 TRS M3L6
635 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 1 M4L25
636 90990-66J012 221DA207 SCREW,TRUSS HEAD 3 TRS M4L6
637 KYB-M65AW-00 23N30632 WIRING 1
– 183 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi

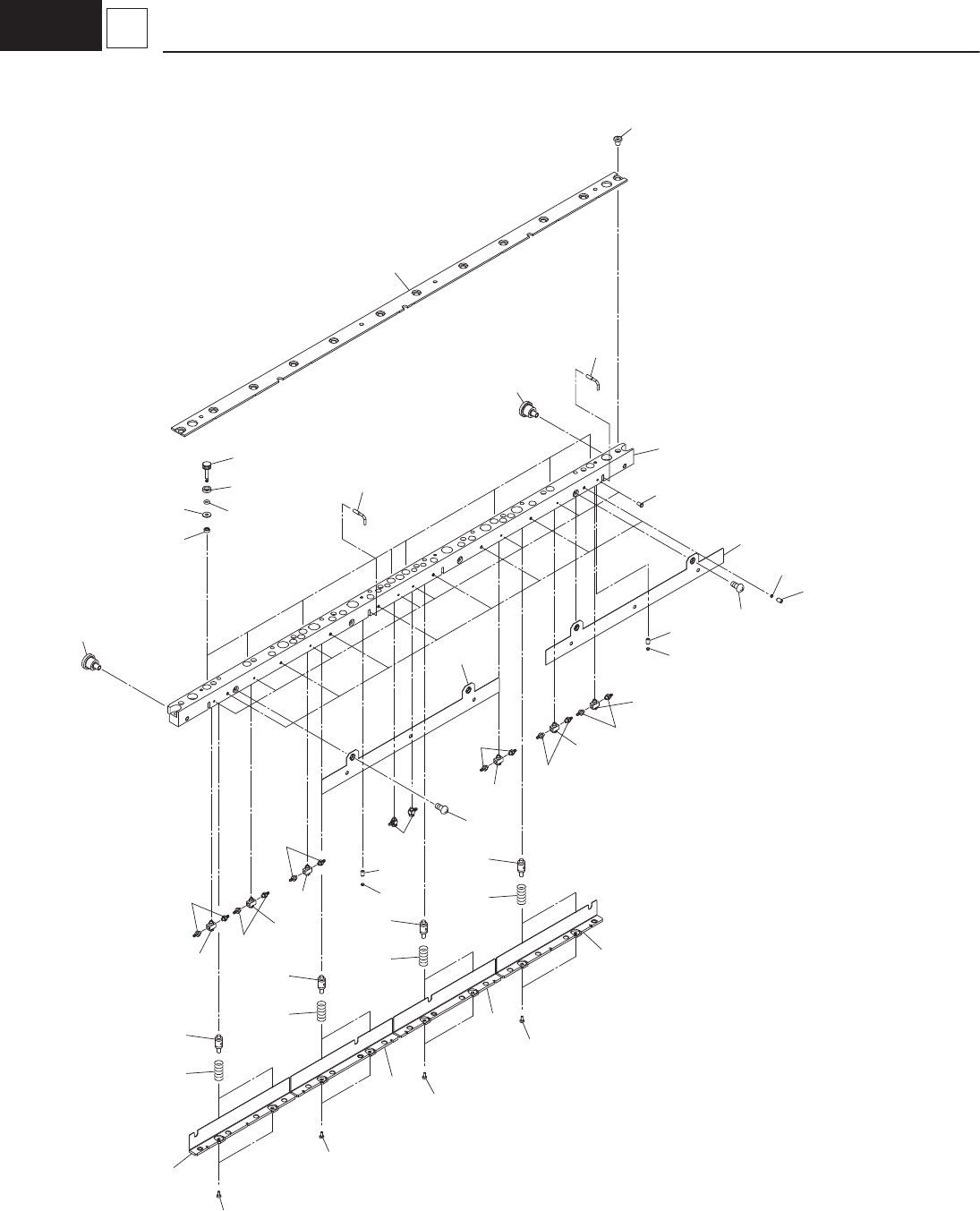

701 KYB-M911D-00 1012C05R CHUTE_1C 1
702 KYB-M911H-00 1012C09D CHUTE_PLATE 1
703 KYB-M91CV-00 223Q0663 PULLEY_TIMING 2
704 KYB-M917N-00 1012C05K Z-CRAMP_1R2L 1
705 KYB-M917P-00 1012C05L Z-CRAMP_1L2R 1
706 KYB-M917R-00 1012C05M Z-CRAMP_1CR2CL 1
707 KYB-M917S-00 1012C05N Z-CRAMP_1CL2CR 1
708 KYB-M91F1-00 226A0144 SEAL 8
709 KYB-M91CE-00 213A1378 SHAFT 8
710 KYB-M91EY-00 226A0074 SEAL 8
711 KYB-M91EX-00 226A0001 SEAL 8
712 KYB-M91CN-00 216Q0044 BUSH_LOCATE 8
713 KYB-M91CS-00 222M1297 SPRING_COMP 8
714 $M-3AU-3 225F0421 PIPE_FITTINGS 12
715 $M-3UT 225F0330 PIPE_FITTINGS 6
716 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
717 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 12
718 KYB-M917Y-00 1012C075 CHUTE_COVER 2
719 KYB-M9198-00 222C0133 GUIDE_SLIDE 8
720 KYB-M917H-00 1012C00R SENSOR_PELEC 2
721 90990-02J020 221CA001 SCREW,SET 10 SET M3L4
722 KYB-M91C4-00 211E1117 SPACER 10
723 90990-01J129 221A0443 BOLT,HEX.SOCKET HEAD 8 M2.5L5
724 KYB-M91E9-00 221D0201 MACHINE_SCREW 8 PAN M2L3.5
725 98702-03006 221DA106 SCREW,FLAT HEAD 4 FLT M3L6
