P-329-006_SIGMA-G5S - 第190页

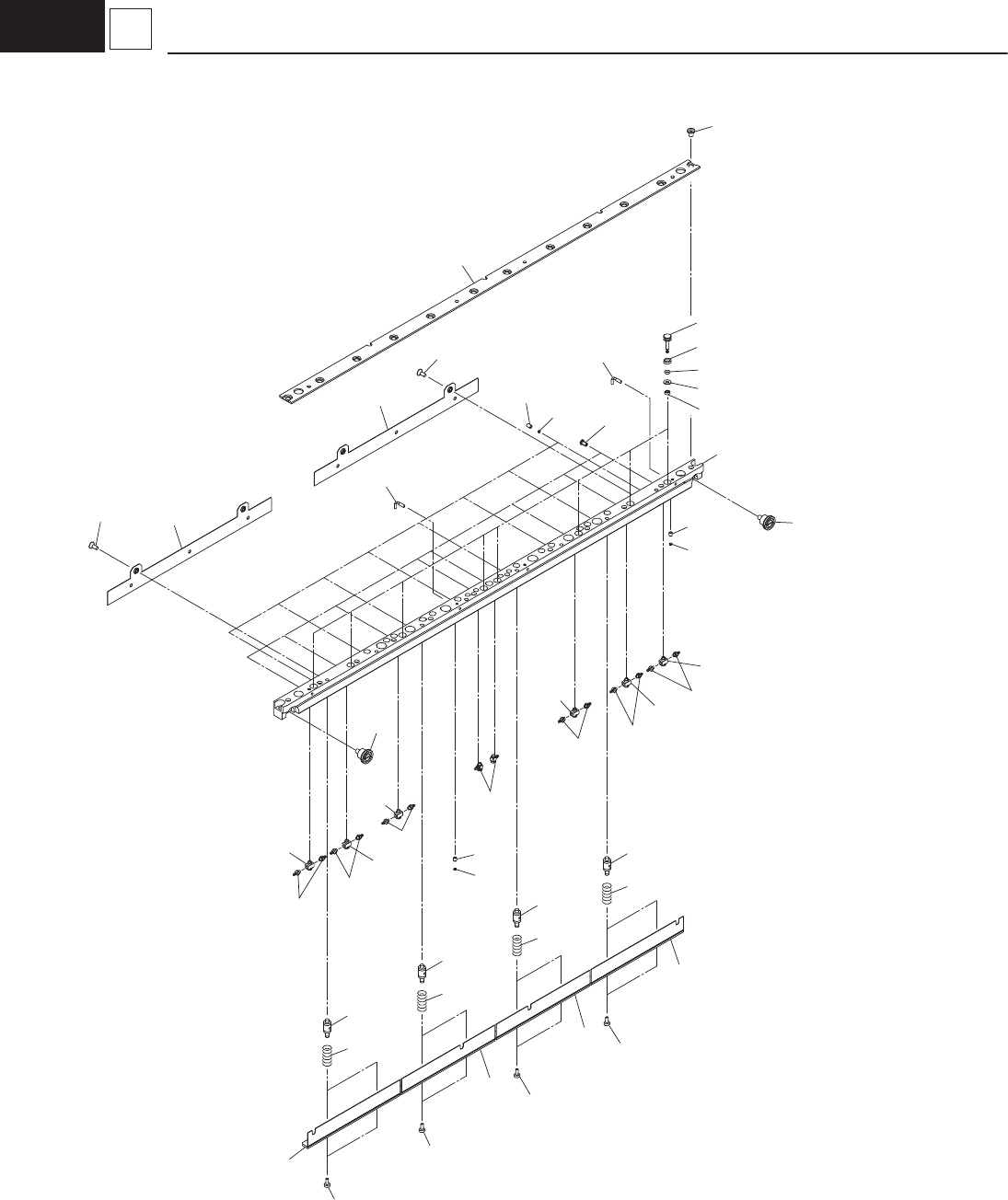

– 184 – H1 181 1-006 9 Moved Chute 823 823 823 823 804 806 807 805 814 814 814 814 814 814 815 815 815 816 826 822 826 822 820 803 815 815 815 803 801 808 812 8 11 810 822 802 825 821 824 809 817 825 818 818 820 813 819 …
– 183 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
701 KYB-M911D-00 1012C05R CHUTE_1C 1
702 KYB-M911H-00 1012C09D CHUTE_PLATE 1
703 KYB-M91CV-00 223Q0663 PULLEY_TIMING 2
704 KYB-M917N-00 1012C05K Z-CRAMP_1R2L 1
705 KYB-M917P-00 1012C05L Z-CRAMP_1L2R 1
706 KYB-M917R-00 1012C05M Z-CRAMP_1CR2CL 1
707 KYB-M917S-00 1012C05N Z-CRAMP_1CL2CR 1
708 KYB-M91F1-00 226A0144 SEAL 8
709 KYB-M91CE-00 213A1378 SHAFT 8
710 KYB-M91EY-00 226A0074 SEAL 8
711 KYB-M91EX-00 226A0001 SEAL 8
712 KYB-M91CN-00 216Q0044 BUSH_LOCATE 8
713 KYB-M91CS-00 222M1297 SPRING_COMP 8
714 $M-3AU-3 225F0421 PIPE_FITTINGS 12
715 $M-3UT 225F0330 PIPE_FITTINGS 6
716 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
717 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 12
718 KYB-M917Y-00 1012C075 CHUTE_COVER 2
719 KYB-M9198-00 222C0133 GUIDE_SLIDE 8
720 KYB-M917H-00 1012C00R SENSOR_PELEC 2
721 90990-02J020 221CA001 SCREW,SET 10 SET M3L4
722 KYB-M91C4-00 211E1117 SPACER 10
723 90990-01J129 221A0443 BOLT,HEX.SOCKET HEAD 8 M2.5L5
724 KYB-M91E9-00 221D0201 MACHINE_SCREW 8 PAN M2L3.5
725 98702-03006 221DA106 SCREW,FLAT HEAD 4 FLT M3L6
– 185 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYB-M911E-00 1012C05S CHUTE_2C 1
802 KYB-M911H-00 1012C09D CHUTE_PLATE 1
803 KYB-M91CV-00 223Q0663 PULLEY_TIMING 2
804 KYB-M917N-00 1012C05K Z-CRAMP_1R2L 1
805 KYB-M917P-00 1012C05L Z-CRAMP_1L2R 1
806 KYB-M917R-00 1012C05M Z-CRAMP_1CR2CL 1
807 KYB-M917S-00 1012C05N Z-CRAMP_1CL2CR 1
808 KYB-M91F1-00 226A0144 SEAL 8
809 KYB-M91CE-00 213A1378 SHAFT 8
810 KYB-M91EY-00 226A0074 SEAL 8
811 KYB-M91EX-00 226A0001 SEAL 8
812 KYB-M91CN-00 216Q0044 BUSH_LOCATE 8
813 KYB-M91CS-00 222M1297 SPRING_COMP 8
814 $M-3AU-3 225F0421 PIPE_FITTINGS 12
815 $M-3UT 225F0330 PIPE_FITTINGS 6
818 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
817 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 12
818 KYB-M917Y-00 1012C075 CHUTE_COVER 2
819 KYB-M9198-00 222C0133 GUIDE_SLIDE 8
820 KYB-M917H-00 1012C00R SENSOR_PELEC 2
821 90990-02J020 221CA001 SCREW,SET 10 SET M3L4
822 KYB-M91C4-00 211E1117 SPACER 10
823 90990-01J129 221A0443 BOLT,HEX.SOCKET HEAD 8 M2.5L5
824 KYB-M91E9-00 221D0201 MACHINE_SCREW 8 PAN M2L3.5
825 98702-03006 221DA106 SCREW,FLAT HEAD 4 FLT M3L6
826 90990-02J019 221CA026 SCREW,SET 2 SET M3L3
