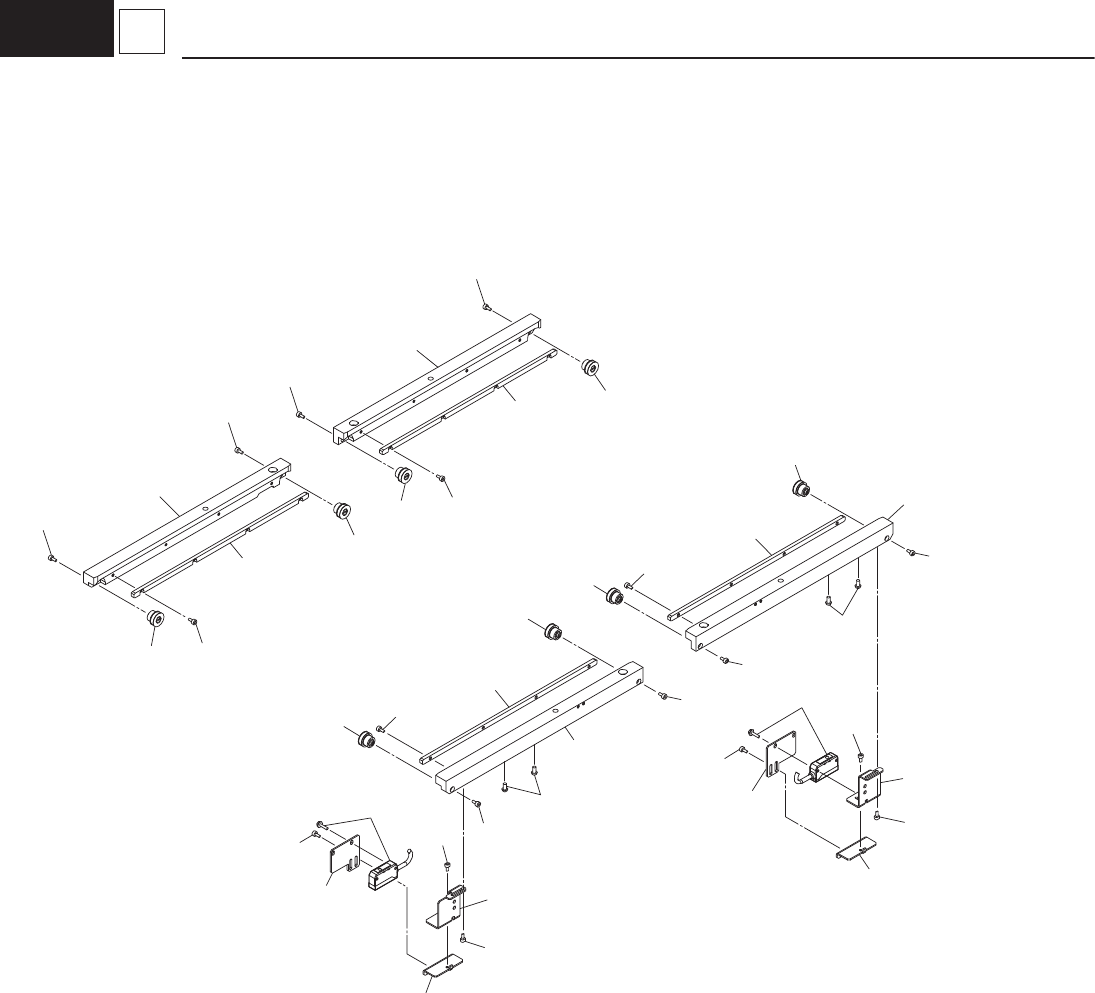

SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYB-M911E-00 1012C05S CHUTE_2C 1
802 KYB-M911H-00 1012C09D CHUTE_PLATE 1
803 KYB-M91CV-00 223Q0663 PULLEY_TIMING 2
804 KYB-M917N-00 1012C05K Z-CRAMP_1R2L 1
805 KYB-M917P-00 1012C05L Z-CRAMP_1L2R 1
806 KYB-M917R-00 1012C05M Z-CRAMP_1CR2CL 1
807 KYB-M917S-00 1012C05N Z-CRAMP_1CL2CR 1
808 KYB-M91F1-00 226A0144 SEAL 8
809 KYB-M91CE-00 213A1378 SHAFT 8
810 KYB-M91EY-00 226A0074 SEAL 8
811 KYB-M91EX-00 226A0001 SEAL 8
812 KYB-M91CN-00 216Q0044 BUSH_LOCATE 8
813 KYB-M91CS-00 222M1297 SPRING_COMP 8
814 $M-3AU-3 225F0421 PIPE_FITTINGS 12
815 $M-3UT 225F0330 PIPE_FITTINGS 6
818 $M-3ALU-3 225F0240 PIPE_FITTINGS 2
817 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 12
818 KYB-M917Y-00 1012C075 CHUTE_COVER 2
819 KYB-M9198-00 222C0133 GUIDE_SLIDE 8
820 KYB-M917H-00 1012C00R SENSOR_PELEC 2
821 90990-02J020 221CA001 SCREW,SET 10 SET M3L4
822 KYB-M91C4-00 211E1117 SPACER 10
823 90990-01J129 221A0443 BOLT,HEX.SOCKET HEAD 8 M2.5L5
824 KYB-M91E9-00 221D0201 MACHINE_SCREW 8 PAN M2L3.5
825 98702-03006 221DA106 SCREW,FLAT HEAD 4 FLT M3L6
826 90990-02J019 221CA026 SCREW,SET 2 SET M3L3
– 187 –
SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
901 KYB-M912S-00 1012C05P CHUTE_1R 1
902 KYB-M912T-00 1012C05Q CHUTE_1L 1
903 KYB-M917J-00 1012C00S CHUTE_BRACKET 2
904 KYB-M91AL-00 1007A097 PULLEY_TIMING 4
905 KYB-M919U-00 0917C41H BRACKET_R1 1
906 KYB-M919P-00 0917C41A BRACKET_LR 2
907 KYB-M919R-00 0917C41B BRACKET 2
908 KYB-M919T-00 0917C41G BRACKET_L1 1
909 KYB-M916A-00 10122303 ASSY-BOARD-DET 1
910 KYB-M916C-00 10122305 ASSY-BOARD-DET 1
911 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 12 M3L6
912 90990-01J139 221AA092 BOLT,HEX.S/H WW 4 M3L8 SW+FW
913 90990-01J138 221AA099 BOLT,HEX.S/H WW 6 M3L6 SW+FW
914 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 PAN M4L6 SW+FW
915 KYB-M65AW-00 23N30632 WIRING 4
921 KYB-M912V-00 1012C07P CHUTE_2R 1
922 KYB-M912U-00 1012C07N CHUTE_2L 1
923 KYB-M917J-00 1012C00S CHUTE_BRACKET 2
924 KYB-M91AL-00 1007A097 PULLEY_TIMING 4
925 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 12 M3L6
