– 201 – DU A L CONVEY OR S E CTI ON 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 1 KYB-M9122-00 0948C108 CHUTE2KL 1 2 KYB-M9123-00 0948C109 CHUTE2KR 1 3 KYB-M918K-00 1012CA0M MOTOR_STEPPING 2 4 KYB-M91CV…

100%1 / 284
– 200 –
H2
1811-006
5 LR F Fixed Chutes
7
21
4
4
3
3
11
16
15
15
14
17
19
16
10
18
5
25
22
23
8
6
6
16
16
12
14
17
9
2
23
13
18
19
25
24
5
20
7
21
4
4
1
20
24
22
– 201 –

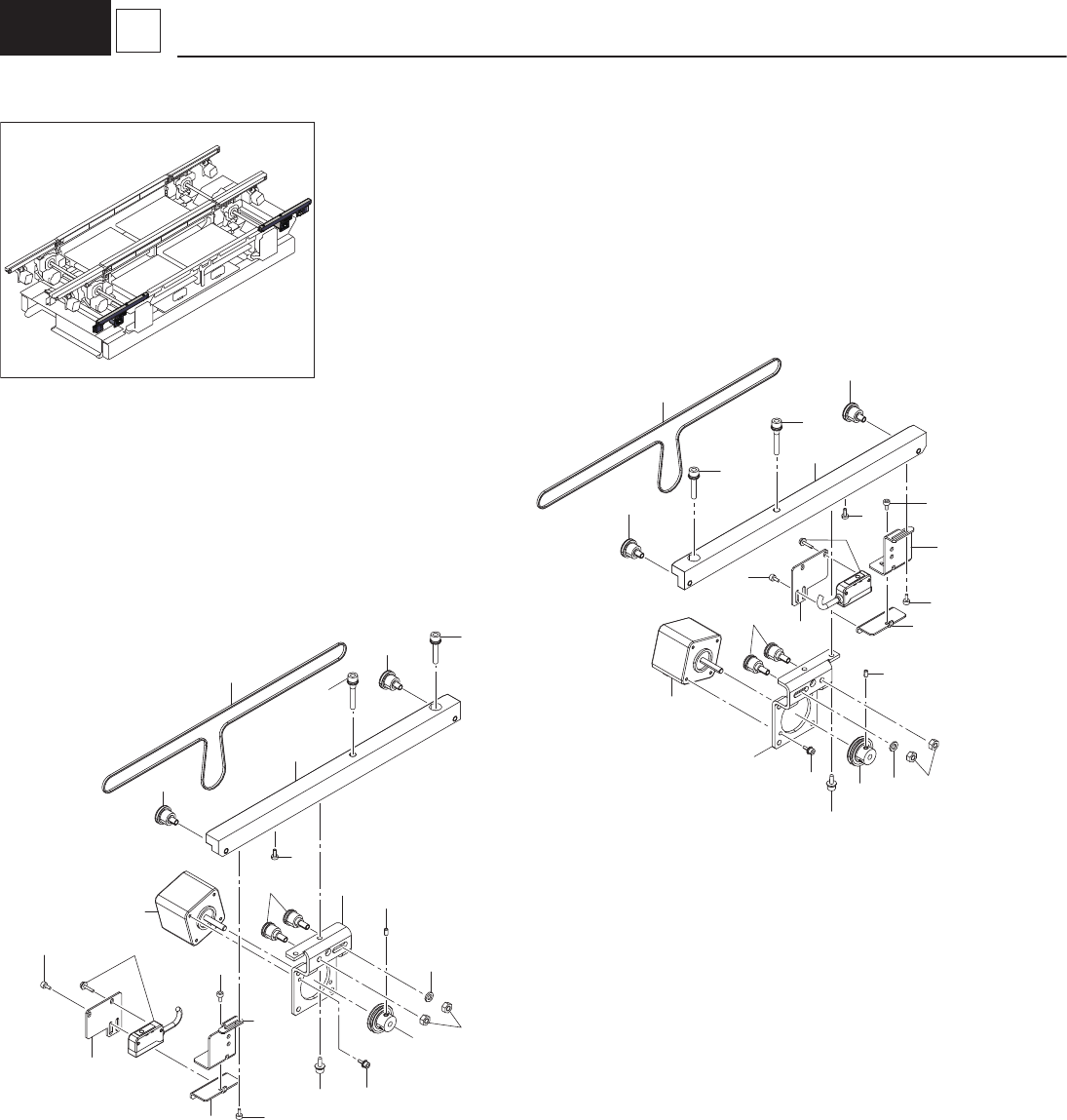

DUAL CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M9122-00 0948C108 CHUTE2KL 1
2 KYB-M9123-00 0948C109 CHUTE2KR 1
3 KYB-M918K-00 1012CA0M MOTOR_STEPPING 2
4 KYB-M91CV-00 223Q0663 PULLEY_TIMING 4
5 KYB-M91CW-00 223Q0749 PULLEY_TIMING 2
6 KYB-M91C2-00 1012CA10 PULLEY_FLAT 4
7 KYB-M919F-00 223L0384 BELT_TIMING 2
8 KYB-M913G-00 0948C417 MBRACKET(2L) 1
9 KYB-M919U-00 0917C41H BRACKET_R1 1
10 KYB-M919T-00 0917C41G BRACKET_L1 1
11 KYB-M916V-00 1012x3B6 ASSY-PCB-SEN-LB 1
12 KYB-M9170-00 1012x3BA ASSY-PCB-SEN-RB 1
13 KYB-M913H-00 0948C418 MBRACKET(2R) 1
14 KYB-M919P-00 0917C41A BRACKET_LR 2
15 KYB-M919R-00 0917C41B BRACKET 2
16 90990-01J138 221AA099 BOLT,HEX.S/H WW 6
17 90990-01J139 221AA092 BOLT,HEX.S/H WW 4
18 91312-03008 221AA006 BOLT HEX,SOCKET HEAD 4
19 91312-04010 221AA017 BOLT HEX,SOCKET HEAD 4
20 91312-05025 221AA033 BOLT HEX,SOCKET HEAD 2
21 91312-05030 221AA034 BOLT HEX,SOCKET HEAD 2
22 90990-66J012 221DA207 SCREW,TRUSS HEAD 2
23 90990-02J024 221CA005 SCREW,SET 4
24 95302-05600 221FA009 NUT, HEXAGON 4
25 92902-05200 221HA105 WASHER, PLAIN 2
