– 203 – DU A L CONVEY OR S E CTI ON 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 1 KYB-M9102-00 0948C105 CHUTE2K 1 2 KYB-M91CV -00 223Q0663 PULLEY_TIMING 2 3 KYB-M91 1P-00 21 1DE892 PLA TE 1 4 KYB-M918L-…

100%1 / 284
– 202 –
H2
1811-006

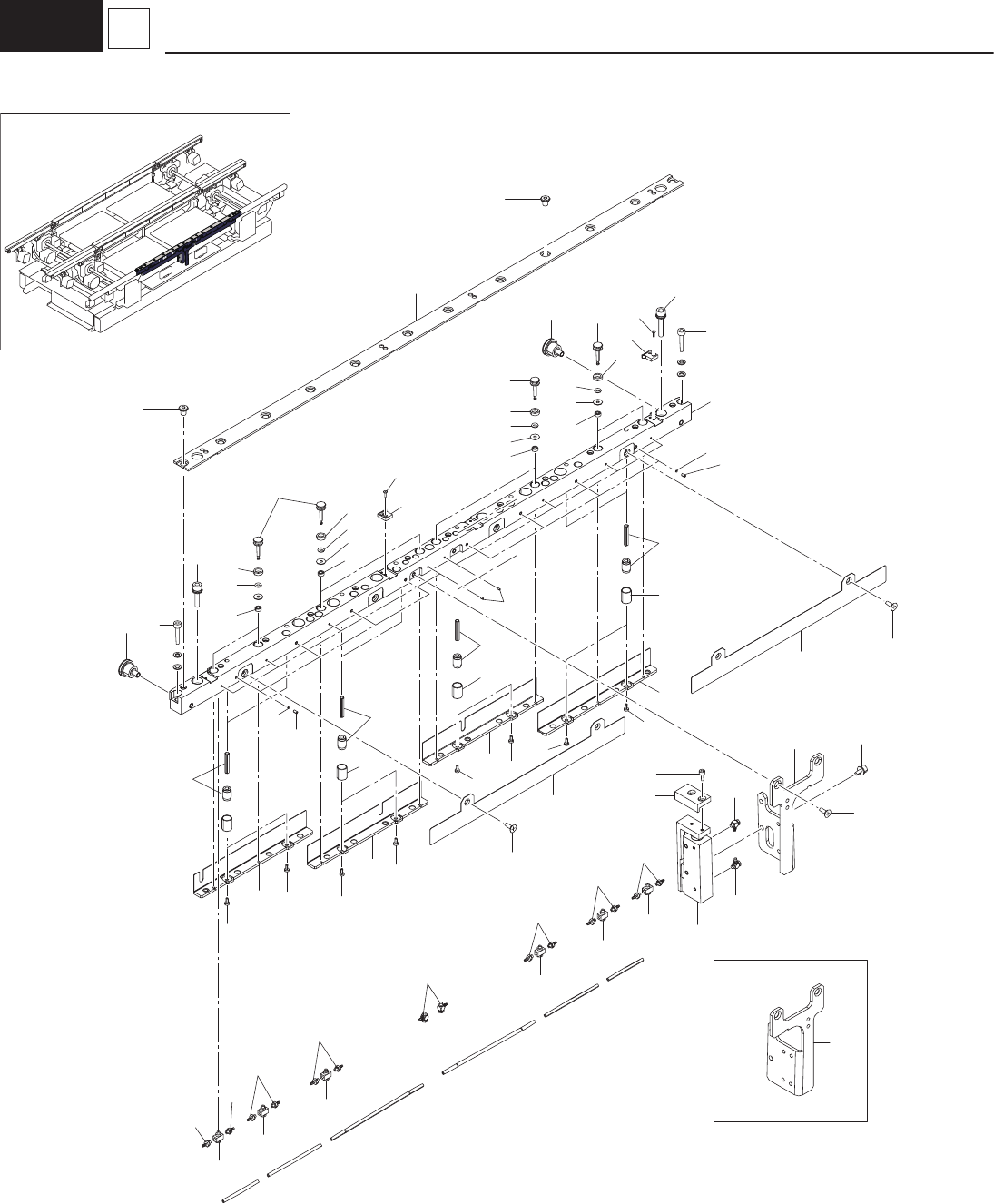

6 Chute Fixed
26
2
31
30
9
9
9
2
10
11
12
8
10
11
12
8
10
32
14
32
30
31
15
35
15
35
7
6
5
4
27
27
27
27
27
25
24
34
34
27
27
17
17
18
17
18
17
18
17
18
20
19
19
28
21
22
29
33
23
17
18
17
19
18
27
13
16
13
16
13
16
13
16
36
14
11
12
8
10
11
12
8
3
26
1
– 203 –
DUAL CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M9102-00 0948C105 CHUTE2K 1
2 KYB-M91CV-00 223Q0663 PULLEY_TIMING 2
3 KYB-M911P-00 211DE892 PLATE 1
4 KYB-M918L-00 1012CA0N Z_CRAMP_K2R 1
5 KYB-M918M-00 1012CA0P Z_CRAMP_K2CR 1
6 KYB-M918N-00 1012CA0Q Z_CRAMP_K2CL 1
7 KYB-M918P-00 1012CA0R Z_CRAMP_K2L 1
8 KYB-M91F1-00 226A0144 SEAL 8
9 KYB-M91CE-00 213A1378 SHAFT 8
10 KYB-M91EY-00 226A0074 SEAL 8
11 KYB-M91EX-00 226A0001 SEAL 8
12 KYB-M91CN-00 216Q0044 BUSH_LOCATE 8
13 KYB-M9198-00 222C0133 GUIDE_SLIDE 8
14 KYB-M91DC-00 23G00316 SENSOR_PELEC 2
15 KYB-M91C4-00 211E1117 SPACER 8
16 KYB-M91CS-00 222M1297 SPRING_COMP 8
17 $M-3AU-3 225F0421 PIPE_FITTINGS 12
18 $M-3UT 225F0330 PIPE_FITTINGS 6
19 $M-3ALU-3 225F0240 PIPE_FITTINGS 4
20 KYB-M917D-00 101223BP ASSY-STOPPER-LB 1
21 KYB-M91CD-00 211G5843 BLOCK 1
22 KYB-M913V-00 0996C105 BRACKET 1 L-R
23 KYB-M91MV-00 0996C10Y BRACKET 1 R-L
24 KYB-M913D-00 0948C10W CHUTE_COVER 1
25 KYB-M913E-00 0948C10X CHUTE_COVER_KR 1
26 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 12
27 90990-01J129 221A0443 BOLT,HEX.SOCKET HEAD 8
28 91312-03008 221AA006 BOLT HEX,SOCKET HEAD 2
29 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
30 91312-04020 221AA021 BOLT HEX,SOCKET HEAD 2
31 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2
32 90167-02J206 221DA102 SCREW,FLAT HEAD 4
33 98702-04008 221DA114 SCREW,FLAT HEAD 2
34 98702-03006 221DA106 SCREW, FLAT HEAD 4
35 90990-02J020 221CA001 SCREW,SET 8
36 90990-02J034 221C2001 SCREW,SET 8
– 204 –
H2
1811-006
7 Base
21
21
22
6
3
15
16
10
28
10
18
34
34
17
1
1
35
35
35
35
35
11
11
35
29
30
20
31
33
14
33
12
33
13
35
35
35
4
7
8
9
6
22
36
36
36
5
36
36
32
32
32
32
32
32
36
36
24
25
35
35
35
2
2
11
11
11
19
19
11
11
19
19
11
23
26
27
