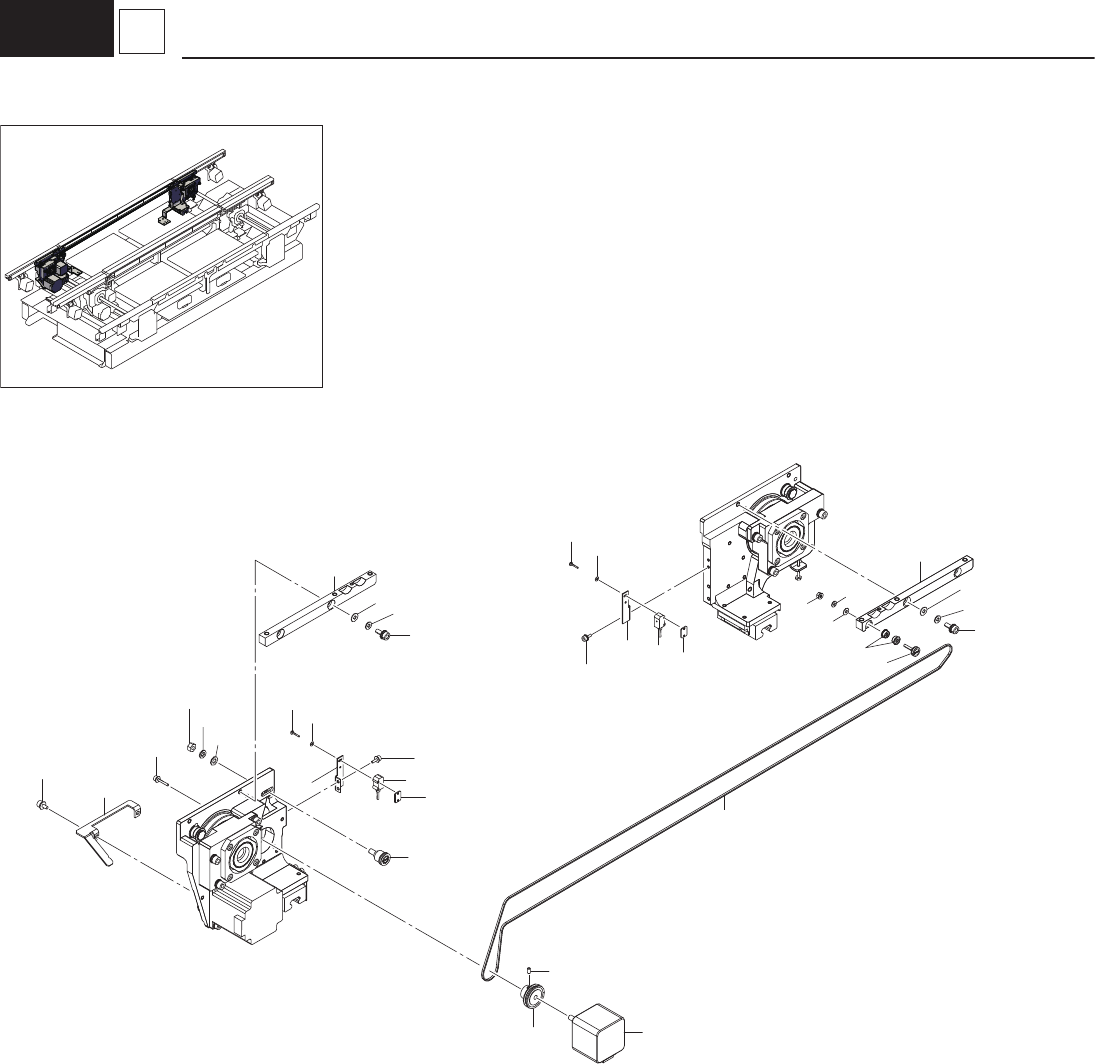

DUAL CONVEYOR SECTION

1811-006

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

1 KYB-M9122-00 0948C108 CHUTE2KL 1

2 KYB-M9123-00 0948C109 CHUTE2KR 1

3 KYB-M918K-00 1012CA0M MOTOR_STEPPING 2

4 KYB-M91CV-00 223Q0663 PULLEY_TIMING 4

5 KYB-M91CW-00 223Q0749 PULLEY_TIMING 2

6 KYB-M91C2-00 1012CA10 PULLEY_FLAT 4

7 KYB-M919F-00 223L0384 BELT_TIMING 2

8 KYB-M913G-00 0948C417 MBRACKET(2L) 1

9 KYB-M919U-00 0917C41H BRACKET_R1 1

10 KYB-M919T-00 0917C41G BRACKET_L1 1

11 KYB-M916U-00 101223B5 ASSY-PCB-SEN-LA 1

12 KYB-M916Y-00 101223B9 ASSY-PCB-SEN-RA 1

13 KYB-M913H-00 0948C418 MBRACKET(2R) 1

14 KYB-M919P-00 0917C41A BRACKET_LR 2

15 KYB-M919R-00 0917C41B BRACKET 2

16 90990-01J138 221AA099 BOLT,HEX.S/H WW 6

17 90990-01J139 221AA092 BOLT,HEX.S/H WW 4

18 91312-03008 221AA006 BOLT HEX,SOCKET HEAD 4

19 91312-04010 221AA017 BOLT HEX,SOCKET HEAD 4

20 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 2

21 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 2

22 92902-05200 221HA105 WASHER, PLAIN 2

23 90990-02J024 221CA005 SCREW,SET 4

24 95302-05600 221FA009 NUT, HEXAGON 4

25 90990-66J012 221DA207 SCREW,TRUSS HEAD 2
