– 225 –

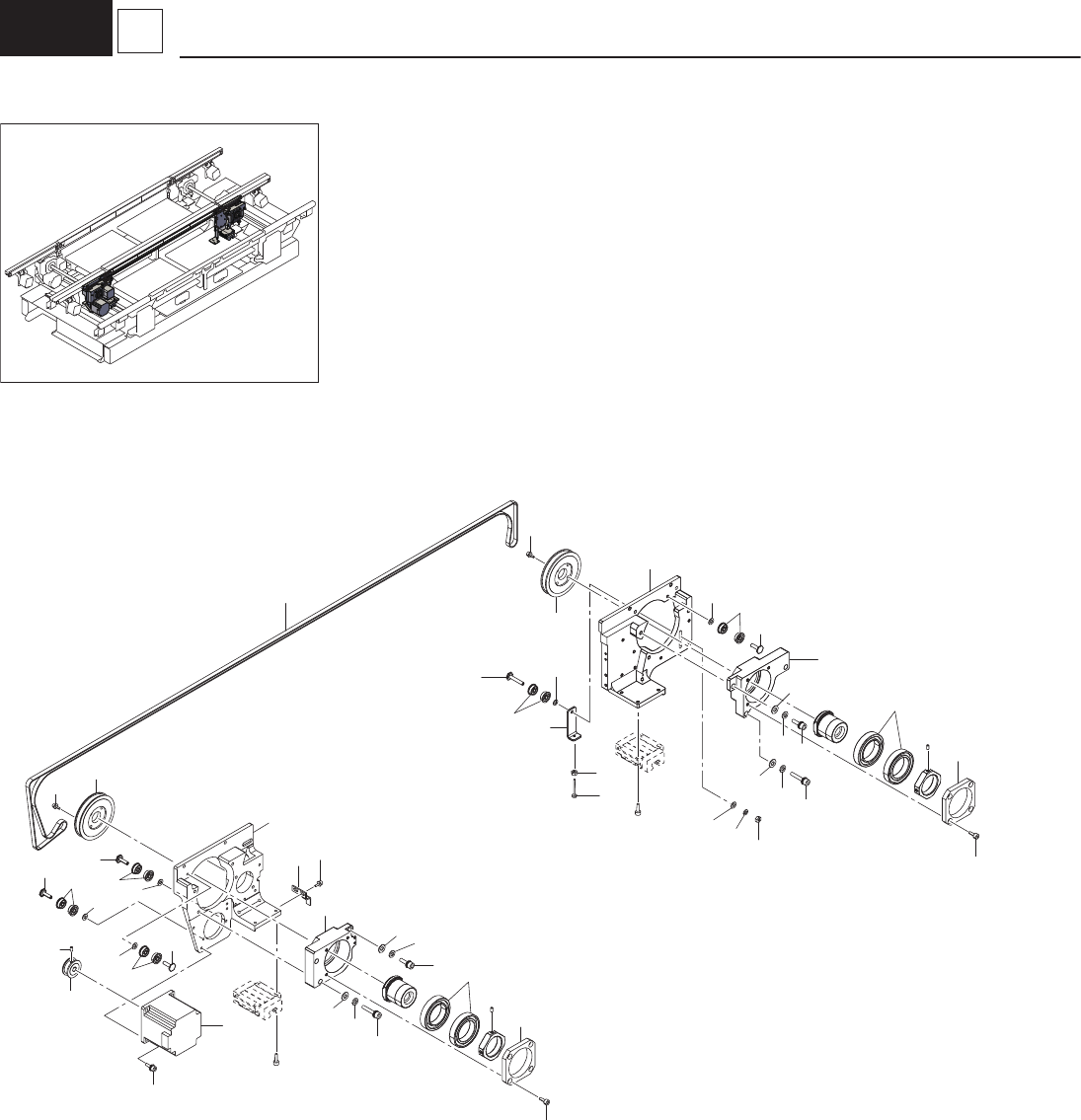

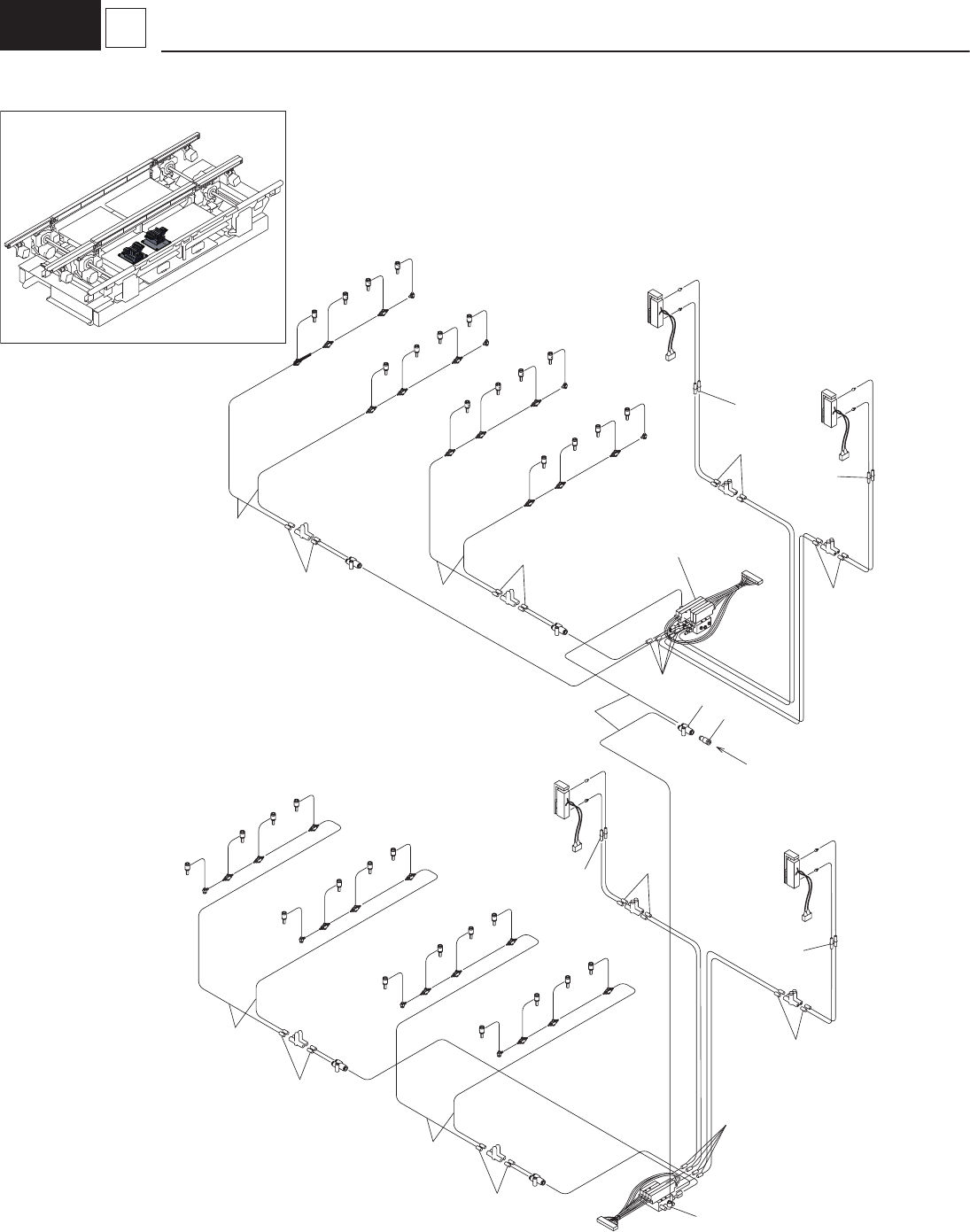

DUAL CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M911N-00 1012CA0J BLOCK_3L 1
2 KYB-M9104-00 0948C41E BLOCK(3R) 1
3 KYB-M91CM-00 216B1798 HOLDER 2
4 KYB-M91ER-00 222D0423 BEARING_ANGULAR 4
5 KYB-M91CA-00 211FD933 BRACKET(DOG3) 1
6 KYB-M91CT-00 223L0327 BELT_TIMING 1
7 KYB-M91D1-00 223Q0767 PULLEY_TIMING 2
8 KYB-M91CY-00 223Q0758 PULLEY_TIMING 1
9 KYB-M91CG-00 213A1581 SHAFT 4
10 KYB-M91A2-00 0948C40X TENSIONSHAFT 1
11 KYB-M917X-00 1012C074 MOTOR_STEPPING 1
12 KYB-M913K-00 0948C41F HOLDER(2R) 1
13 KYB-M9126-00 0948C40M HOLDER(3R) 1
14 KYB-M91A3-00 0948C40Y TENSIONBRACKET 1
15 90933-03J624 222D0017 BEARING_RADIAL 10
16 90990-07J006 221BA004 BOLT,HEXAGON 1
17 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
18 91312-03010 221AA007 BOLT HEX,SOCKET HEAD 8
19 91312-04010 221AA017 BOLT HEX,SOCKET HEAD 8
20 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 2
21 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 2
22 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 4
23 90990-02J024 221CA005 SCREW,SET 2
24 95302-03600 221FA005 NUT, HEXAGON 1
25 95302-04600 221FA007 NUT, HEXAGON 1
26 92902-05100 221HA005 WASHER,SPRING 6
27 92902-04100 221HA004 WASHER,SPRING 1
28 92902-05200 221HA105 WASHER, PLAIN 6
29 92902-04200 221HA104 WASHER, PLAIN 1
30 92902-04600 221HA204 WASHER,PLAIN 5
