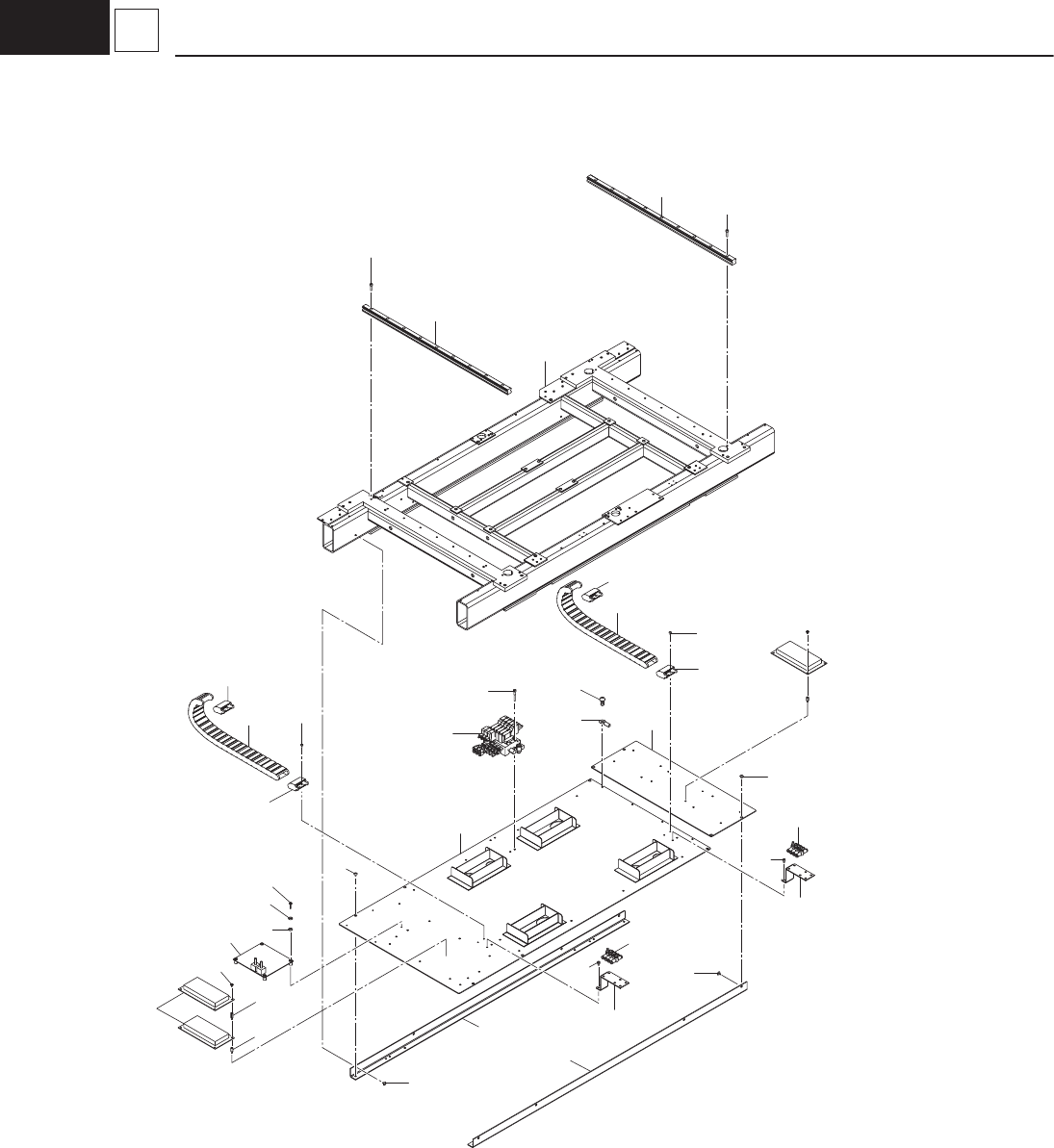

SINGLE CONVEYOR SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYX-M9108-00 BOTTOM BASE ASSY. 1
2 KYX-M910C-00 CONV L ASSY. 1
3 KYX-M910D-00 CONV C ASSY. 1
4 KYX-M910E-00 CONV R ASSY. 1
5 KYX-M910F-00 CHUTE 1 ASSY. 1
6 KYX-M910G-00 CHUTE 2 ASSY. 1
7 KYX-M910H-00 L/R FIXED ASSY. 1
8 KYX-M910J-00 L/R MOVED ASSY. 1
9 KYX-M910K-00 MOVED ASSY. 1
10 KYX-M910L-00 MOVED ASSY. 1
13 KYB-M916J-00 1012230B ASSY-STOPPER-R 1
14 KYB-M916H-00 1012230A ASSY-STOPPER-L 1
15 KYB-M91CD-00 211G5843 BLOCK 2
16 KYX-M91BK-00 BRACKET 1
17 $M-3ALU-3 225F0240 PIPE_FITTINGS 4
18 KYX-M91BV-00 BRACKET 1
19 KYX-M91CB-00 BRACKET 1
20 KYB-M916D-00 10122306 ASSY-FIBER-AMP 1
21 KYB-M916E-00 10122307 ASSY-FIBER-AMP 1
22 KYB-M911R-00 0917200F ASSY_NAMEPLATE 1
23 KYB-M91AN-00 101223A1 ASSY-CV-BU-NAME 1
25 KYX-M910R-00 MOTOR-W ASSY. 1
25-01 KYB-M913X-00 1007A007 MOTOR_STEPPING 1
25-02 KYX-M913L-00 BRACKET,MOTOR 1
25-03 KYA-M914V-00 1007A00J PULLEY_TIMING 1
25-04 90990-01J128 1007A018 BOLT,HEX.SOCKET HEAD 1
25-05 KYY-M914Y-00 COLLAR 3
25-06 90933-03J698 222D0118 BEARING_RADIAL 2
25-07 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 2
25-08 90990-02J027 221CA045 SCREW,SET 2
25-09 95302-08700 221FA014 NUT,HEXAGON 1
26 KYX-M914W-00 TIMING BELT 1
27 KYX-M915B-00 BLOCK 1
28 KYX-M912Y-00 COVER L 1
29 KYX-M9131-00 COVER R 1
30 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4
31 91312-06020 221AA044 BOLT,HEX.SOCKET HEAD 4
32 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 6
33 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 6
34 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 10
35 90990-66J012 221E0532 SCREW,TRUSS HEAD 8
36 90112-10J03 221AA096 BOLT,HEX.SOCKET HEAD 6
37 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 2
38 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2
40 KYX-M9109-00 UNDER BASE ASSY. 1
41 KYB-M916F-00 10122308 ASSY-CHUTE-ORG 1
42 97602-03312 221DA047 SCREW,PAN HEAD WW 2
43 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 4
44 KYB-M91DB-00 23G00312 BRACKET 2
