– 241 – SIN GLE C ONVEY OR SE CT ION 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 1 KYX-M91 10-00 BLOCK 2 2 3 KYX-M917V -00 BLOCK 2L 1 4 KYX-M917U-00 BLOCK 2R 1 20 KYX-M9183-00 BRACKET R 1 21 KYX-M9184-0…

– 240 –

1811-006

4 Moved Drive

– 241 –

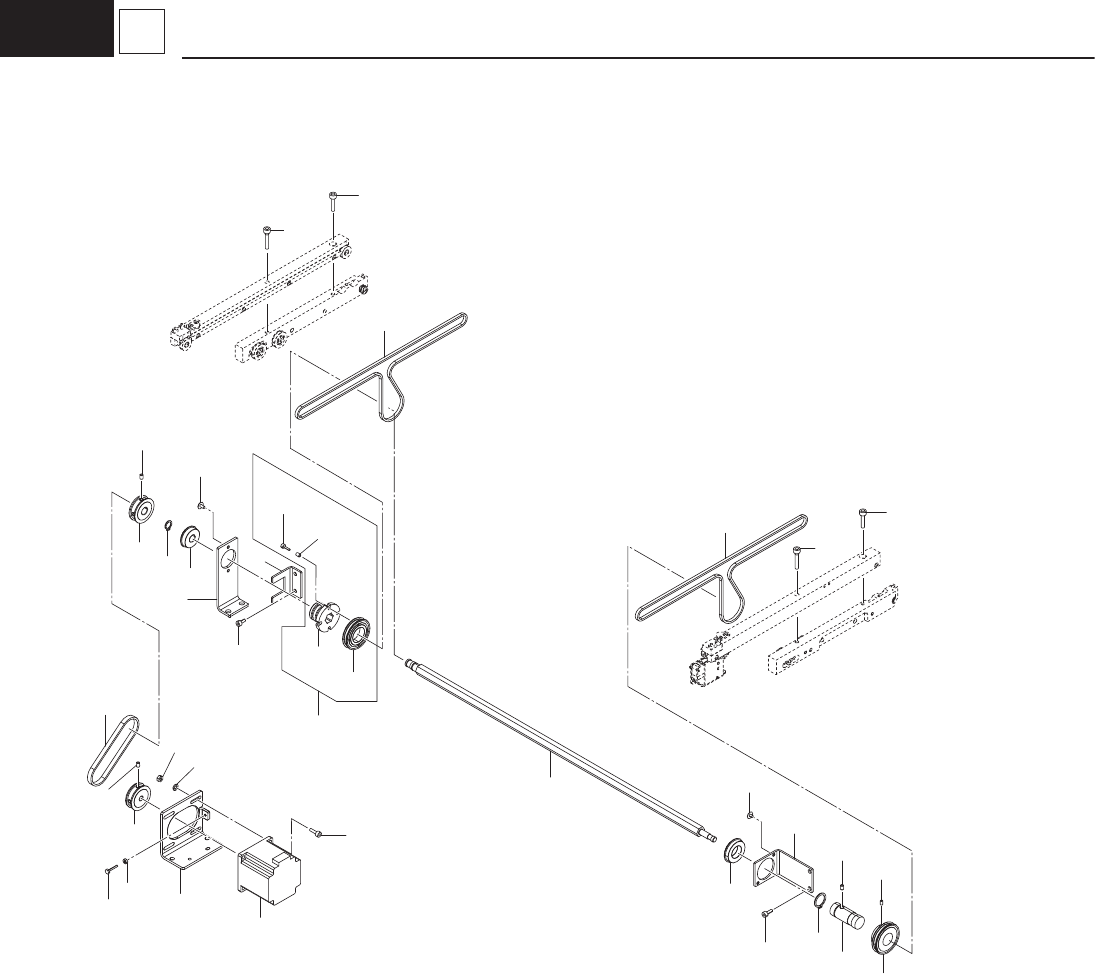

SINGLE CONVEYOR SECTION

1811-006

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

1 KYX-M9110-00 BLOCK 2 2

3 KYX-M917V-00 BLOCK 2L 1

4 KYX-M917U-00 BLOCK 2R 1

20 KYX-M9183-00 BRACKET R 1

21 KYX-M9184-00 BRACKET L 1

22 KYB-M91BJ-00 1012C07Y SENSOR_PLATE 1

24 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 4

25 92902-05100 221HA005 WASHER,SPRING 1

26 92902-05200 221HA105 WASHER,PLAIN 1

29 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 8

32 95302-03600 221FA005 NUT,HEXAGON 1

33 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2

34 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8

38 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4

40 KYB-M91B8-00 1012C071 PULLEY_FLAT 1

41 KYB-M91CX-00 223Q0755 PULLEY_TIMING 1

42 90933-03J693 222D0016 BEARING_RADIAL 2

43 92902-03100 221HA003 WASHER,SPRING 1

44 92902-03600 221HA203 WASHER,PLAIN 1

45 95302-05600 221FA009 NUT,HEXAGON 3

46 KYY-M914U-A0 PULLEY_FLAT 4

– 242 –

1811-006

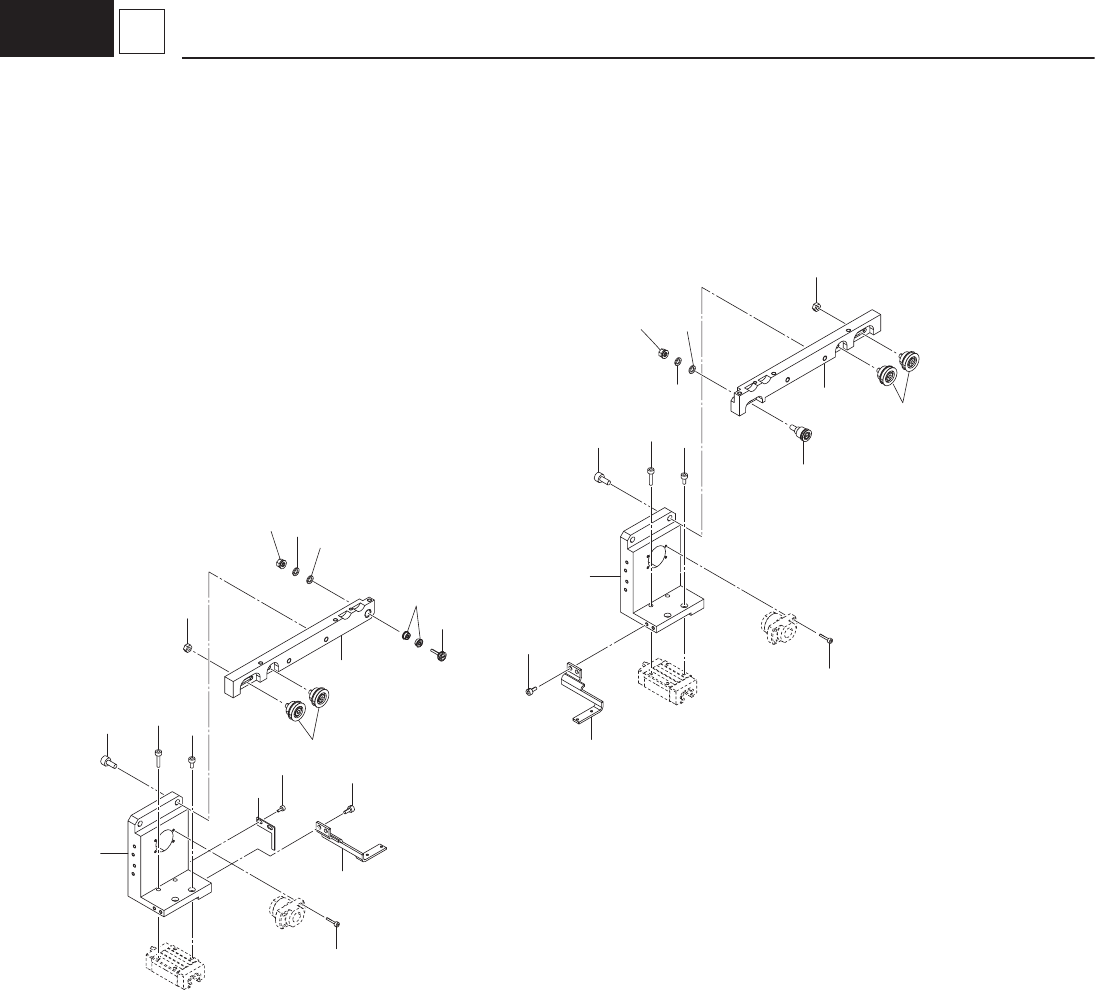

5 Conv L Section

13-01

13-02

13-03

13-04
