– 275 – BA CK - UP BASE UNI T ( SEL E CTI ON ) 181 1-006 No. Part No. Part Name Qty . Detail Y amaha Hitachi 301 KYB-M91 19-00 1 10121204X PLA TE 1 302 KYB-M919C-00 223B0456 BALL_SCREW 1 303 KYB-M917L-00 3101212050 SCREW…

100%1 / 284
– 274 –
J1
1811-006

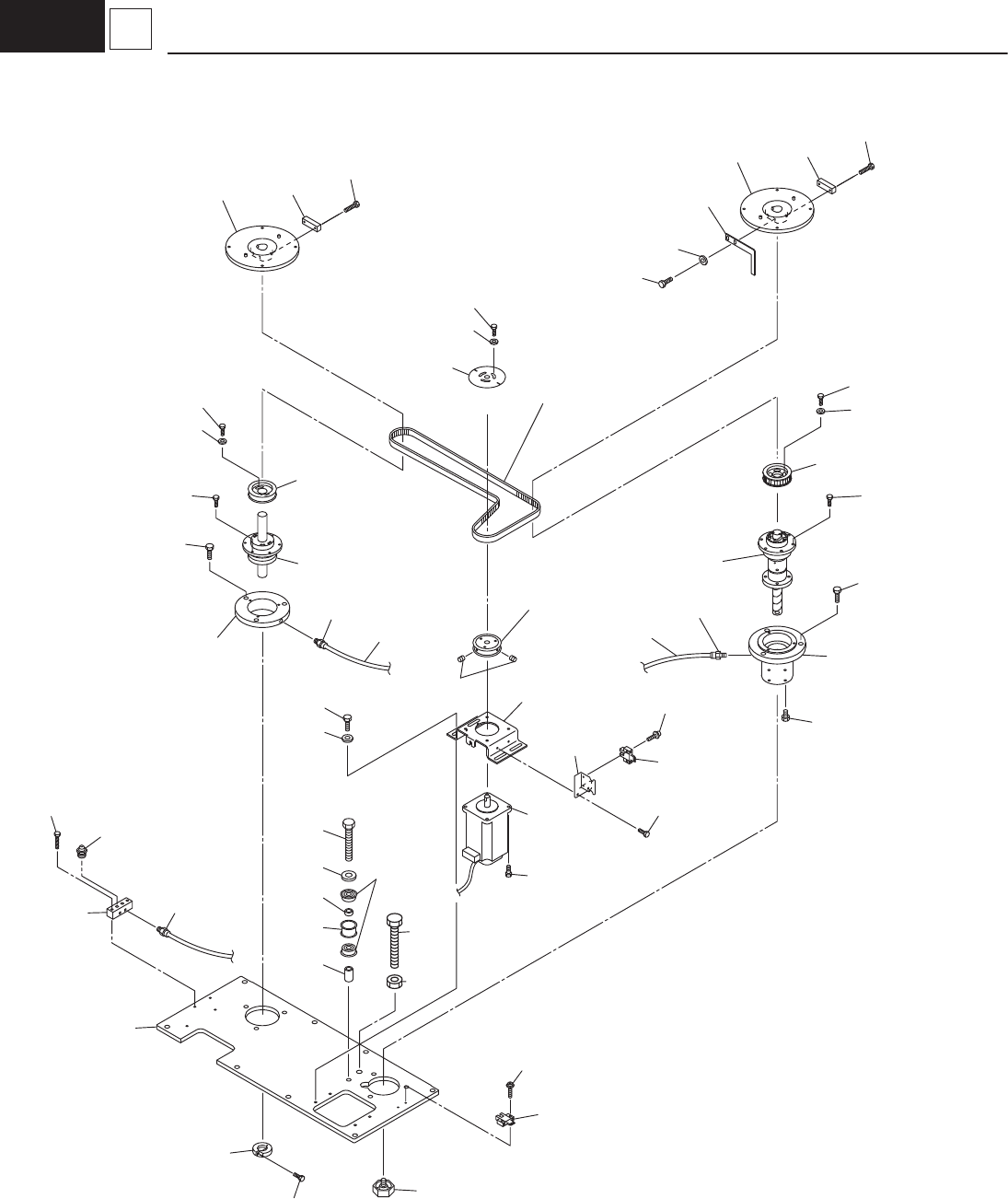

3 Back-up Base 2
322
328
333
305
312
309
319
338
314
345
346
306
344
301
326
325
327
324
332
334
323
329
B5401
310
318
321
303
306
309
311
308
305
312
309
310
306
337
307
337
320
311
313
308
302
304
315
316
317
330
331
335
336
M54
340
341
329
323
343
342
339
B5401
See Fig. J1-1
Key No.101
347
348
– 275 –
BACK-UP BASE UNIT (SELECTION)
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301 KYB-M9119-00 110121204X PLATE 1
302 KYB-M919C-00 223B0456 BALL_SCREW 1
303 KYB-M917L-00 3101212050 SCREW_HOLDER2 1
304 KYB-M919G-00 PULLEY_TIMING 1
305 KYB-M912N-00 210121204P DISK_BLOCK 2
306 KYB-M91AJ-00 4100510B17 PIPE FITTINGS 4
307 91312-04010 221AA017 ROHS:BOLT_HEX-SCT 4 M4L10
308 91312-04012 G221A10018 ROHS:BOLT_HEX-SCT 6
309 91312-04020 221AA021 ROHS:BOLT_HEX-SCT 6 M4L20
310 91312-06016 G221A10043 ROHS:BOLT_HEX-SCT 6
311 92902-04600 221HA204 WASHER 6 FWS4
312 KYB-M919X-00 0948C203 BLOCK(BACKUP) 2
313 91312-04016 G221A10020 ROHS:BOLT_HEX-SCT 4
314 KYB-M91BY-00 41012120AC STOPPER_BOLT 1
315 KYB-M913X-00 3100710007 MOTOR_STEPPING 1
316 KYB-M9191-00 211FD904 BRACKET 1
317 KYB-M91BL-00 4101212085 PULLEY_TIMING 1
318 KYB-M917T-00 310121205Z BALL_SCREW 1
319 KYB-M91C1-00 41012120AG STOPPER_COLLAR 1
320 KYB-M9130-00 2101212099 HOLDER 1
321 KYB-M913Y-00 310071000F PULLEY_TIMING 1
322 KYB-M91C5-00 211FD378 BRACKET 1
323 KYB-M261N-00 23G10001 SENSOR_PHOTO 2
324 90933-03J608 222D0343 BEARING_RADIAL 2
325 KYB-M91CH-00 216A1552 COLLAR 1
326 KYB-M91CJ-00 216A1586 COLLAR 1
327 KYB-M91CL-00 216A1631 COLLAR 1
328 91312-03006 221AA005 ROHS:BOLT_HEX-SCT 2 M3L6
329 97602-03312 G221D10047 MACHINE SCREW 4
330 91312-04010 G221A10017 ROHS:BOLT_HEX-SCT 2
331 91312-05016 221AA031 ROHS:BOLT_HEX-SCT 4 M5L16
332 91312-08055 221AA336 ROHS:BOLT_HEX-SCT 1 M8L55
333 92902-03200 221HA103 WASHER 2 FW3
334 92902-08200 221HA107 WASHER 1 FW8
335 KYB-M65AA-00 221HA303 ROHS:WASHER 4 BW5
336 90990-02J026 221CA007 SET SCREW 2 SET M5L6
337 KYB-M919K-00 0917C303 TUBE D4 2
338 91312-03012 G221A10008 ROHS:BOLT_HEX-SCT 1
339 KYB-M91BE-00 410121207R DISK 1
340 91312-04006 ROHS:BOLT_HEX-SCT 3
341 92902-04200 WASHER 3
342 KYB-M91BD-00 410121207Q BRACKET 1
343 91312-03006 G221A10005 ROHS:BOLT_HEX-SCT 2
344 KYB-M91AT-00 410121205W BLOCK 1
345 KYB-M91F2-00 G226B00002 GREASE_NIPPLE 2
346 91312-04020 G221A10021 ROHS:BOLT_HEX-SCT 2
347 90132-10J055 221BB008 ROHS:BOLT_HEX-SCT 2 M10L55
348 90189-02J106 221FA015 NUT_HEX 2 M10
