– 36 – D1 181 1-006 D1 ELECTRICAL SECTION 1 1 Frame 5 6 7 4 11 12 See Fig. D5-1 8 9 10 3

– 35 –

UNIT-3: LOWER FRAME SECTION

C4NCB4N

3NC

C4NCB4NC

CONTENTS

D1 ELECTRICAL SECTION 1 36

1 Frame 36

2 Fixed Screw 38

3 I/F Board 40

D2 CPU BOX SECTION 42

1 CPU 1 Box 42

2 CPU 2 Box 44

D3 ELECTRICAL SECTION 2 46

1 Fixed Screw 46

2 XY Servo Amp(B) 48

3 XY Servo Amp(F) 50

4 Panel 52

5 Driver Board 56

6 PCB 1 58

7 PCB 2 62

8 AC Cable 64

9 DC Cable 68

10 CPU Cable 72

D4 DC POWER SUPPLY SECTION 74

1 DC Power 74

2 ATX Power 76

3 Fan 78

D5 AIR SUPPLY SECTION 80

1 Frame Section 80

2 Air Combination Unit, Vaccum Pump 84

3 Solenoid Valve, Manifold 86

– 36 –

1811-006

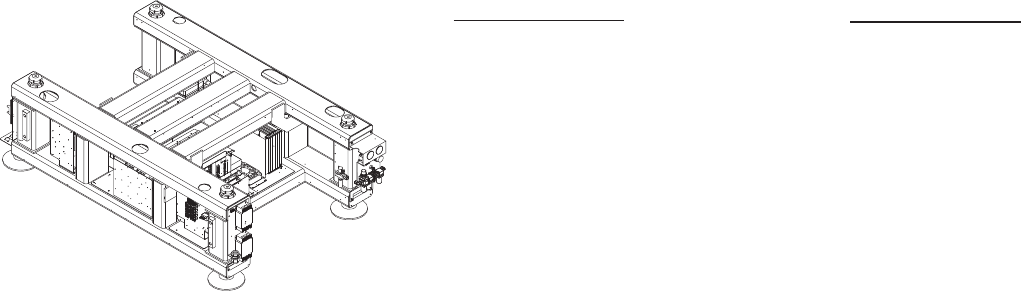

D1 ELECTRICAL SECTION 1

1 Frame

See Fig. D5-1

– 37 –

ELECTRICAL SECTION 1

1811-006

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

3 KYB-M1102-00 1010BZ0Q FRAME_CUT 1

4 KYB-M1103-00 1005BK06 PLATE_CONNECT 4

5 91312-08020 221AA056 BOLT,HEX.SOCKET HEAD 12 M8L50

6 92902-08100 221HA007 WASHER,SPRING 12 SW8

7 92902-08200 221HA107 WASHER,PLAIN 12 FW8

8 90112-12J030 221AA077 BOLT,HEX.SOCKET HEAD 4 M12L30

9 92902-12100 221HA009 WASHER,SPRING 4 SW12

10 92902-12600 221HA209 WASHER,PLAIN 4 FWS12

11 KYB-M1105-00 216A0334 COLLAR 4

12 90990-02J028 221CA010 SCREW,SET 4
