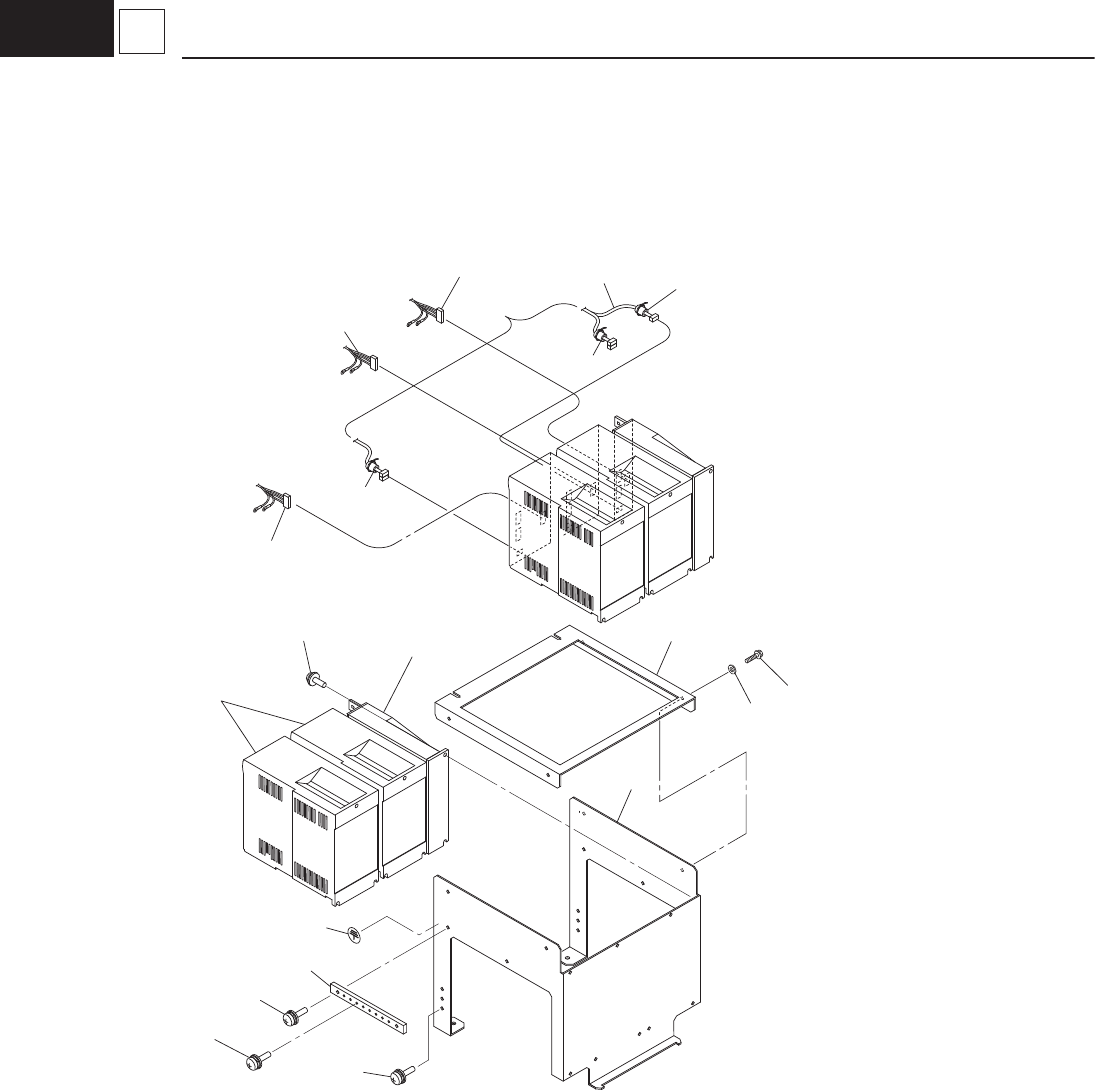

– 48 – D3 181 1-006 2 XY Servo Amp(B) 102 101 11 0 109 104 103 105 107 106 111 108 108 125 124 123 126 135 135 135
– 47 –
ELECTRICAL SECTION 2
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
8 KYB-M657A-00 1010BA0X BRACKET 2
9 KYB-M6506-00 1010BA31 PLATE BOTTOM L 1
10 KYB-M657C-00 1010BA15 BRACKET 1
11 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 24 M5L6
13 KYB-M6566-00 0914B32W ACCESS-WIRING 1
14 90990-66J015 221DA212 SCREW,TRUSS HEAD 2 TRS M5L6
15 92902-05200 221HA105 WASHER,PLAIN 2 FW5
16 90990-11J016 221DA053 SCREW,PAN HEAD WW 6
17 KYB-M65AB-00 226J0373 MOUNTING_BASE 6
18 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
19 KYB-M65A9-00 221HA302 ROHS_WASHER 2 BW4
24 KYB-M650S-00 1010BC8W HNS,H-SV-F 1
25 KYB-M658G-00 23N30586 ACCESSORY 2
27 KYB-M650R-00 1010BC8V HNS,H-SV-B 1
– 49 –
ELECTRICAL SECTION 2
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M6536-00 1010BA3N XY_PLATE 1
102 KYB-M650L-00 1010BA3P BRACKET XY 1
103 KYB-M652Y-00 1010BA1D UNIT-DRIVER 1
104 KYB-M6565-00 0914B32J UNIT-DRIVER 2
105 90990-11J022 221DA055 SCREW,PAN HEAD WW 8 PAN M5L12 SW+FW
106 KYB-M6579-00 1010BA0K EARTHBAR 1
107 90990-11J018 221DA052 SCREW,PAN HEAD WW 2 PAN M4L10 SW+FW
108 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
109 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4
110 92902-04200 221HA104 WASHER,PLAIN 4
111 KYB-M658X-00 6P450074 EARTH-MARK-SEAL 1
123 KYB-M653N-00 1010BC15 HNS,X-MOTOR-B 1
124 KYB-M653P-00 1010BC16 HNS,Y1-MOTOR-B 1
125 KYB-M653T-00 1010BC1A HNS,Y2-MOTOR-B 1
126 KYB-M654F-00 1010BC70 HNS,XY-ENC-B 1
135 KYB-M658H-00 23N30590 ACCESS-WIRING 3
