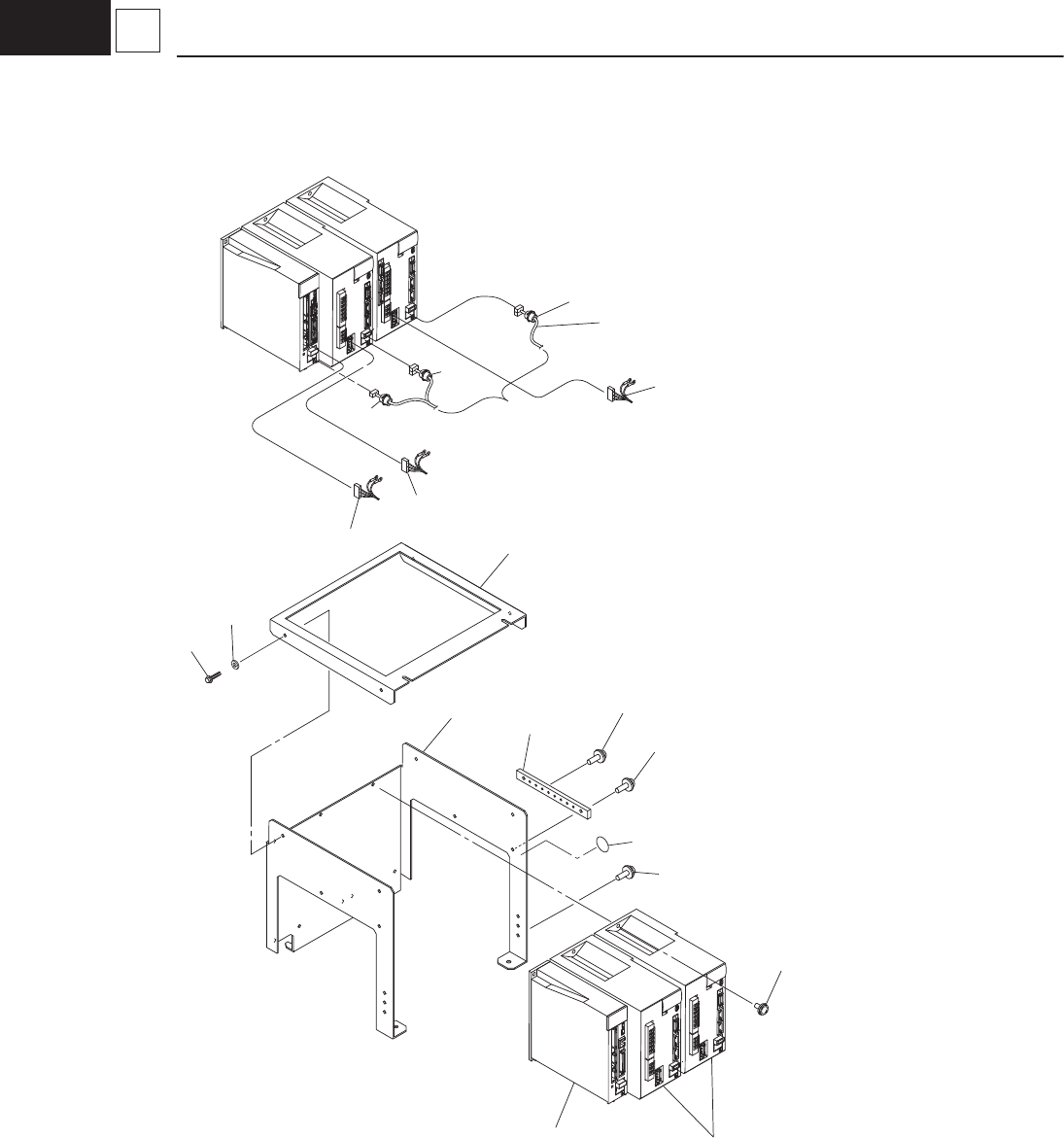

– 50 – D3 181 1-006 3 XY Servo Amp(F) 202 201 210 209 204 203 205 207 208 227 228 229 230 235 235 235 208 206 2 11
– 49 –
ELECTRICAL SECTION 2
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M6536-00 1010BA3N XY_PLATE 1
102 KYB-M650L-00 1010BA3P BRACKET XY 1
103 KYB-M652Y-00 1010BA1D UNIT-DRIVER 1
104 KYB-M6565-00 0914B32J UNIT-DRIVER 2
105 90990-11J022 221DA055 SCREW,PAN HEAD WW 8 PAN M5L12 SW+FW
106 KYB-M6579-00 1010BA0K EARTHBAR 1
107 90990-11J018 221DA052 SCREW,PAN HEAD WW 2 PAN M4L10 SW+FW
108 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
109 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4
110 92902-04200 221HA104 WASHER,PLAIN 4
111 KYB-M658X-00 6P450074 EARTH-MARK-SEAL 1
123 KYB-M653N-00 1010BC15 HNS,X-MOTOR-B 1
124 KYB-M653P-00 1010BC16 HNS,Y1-MOTOR-B 1
125 KYB-M653T-00 1010BC1A HNS,Y2-MOTOR-B 1
126 KYB-M654F-00 1010BC70 HNS,XY-ENC-B 1
135 KYB-M658H-00 23N30590 ACCESS-WIRING 3
– 51 –
ELECTRICAL SECTION 2
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYB-M6536-00 1010BA3N XY_PLATE 1
202 KYB-M650L-00 1010BA3P BRACKET XY 1
203 KYB-M652Y-00 1010BA1D UNIT-DRIVER 1
204 KYB-M6565-00 0914B32J UNIT-DRIVER 2
205 90990-11J022 221DA055 SCREW,PAN HEAD WW 8 PAN M5L12 SW+FW
206 KYB-M6579-00 1010BA0K EARTHBAR 1
207 90990-11J018 221DA052 SCREW,PAN HEAD WW 2 PAN M4L10 SW+FW
208 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
209 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4
210 92902-04200 221HA104 WASHER,PLAIN 4
211 KYB-M658X-00 6P450074 EARTH-MARK-SEAL 1
227 KYB-M653R-00 1010BC18 HNS,X-MOTOR-F 1
228 KYB-M653S-00 1010BC19 HNS,Y1-MOTOR-F 1
229 KYB-M653U-00 1010BC1C HNS,Y2-MOTOR-F 1
230 KYB-M6551-00 1010BC85 HNS,XY-ENC-F 1
235 KYB-M658H-00 23N30590 ACCESS-WIRING 3
