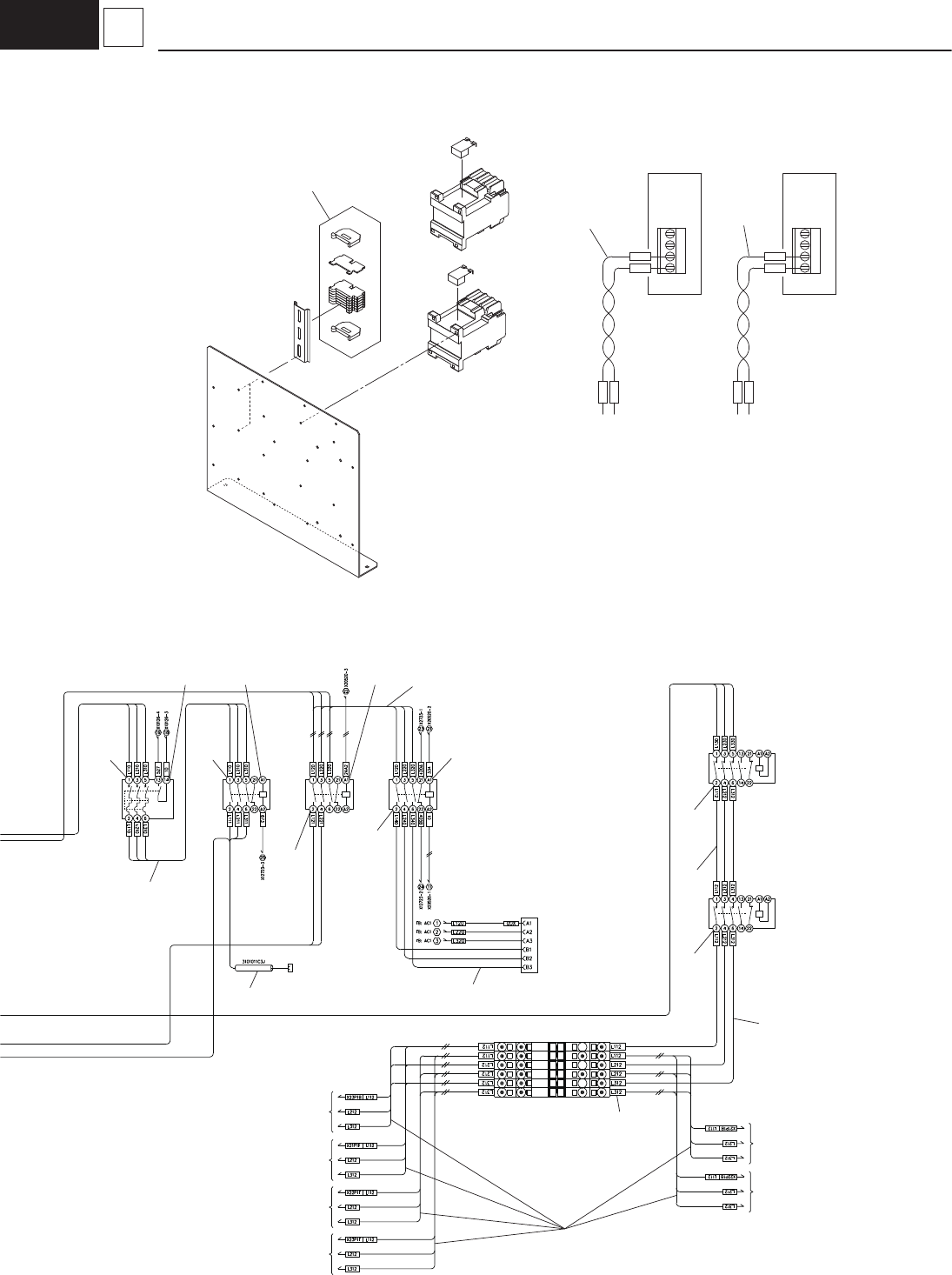

– 66 – D3 181 1-006 8 AC Cable P C P C P C P C L120 L220 E 3101011C8Z SD 703 723 730 723 730 723 730 724 707 712 732 710 724 704 709 705 704 703 703 706 706 706 706 706 707 724 724 724 724 726 720 726 724 718 725 721 724…
– 65 –
ELECTRICAL SECTION 2
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
701 KYB-M6542-00 1010BC30 HNS,PSU-IN-1 1
702 KYB-M6547-00 1010BC3J HNS,VP-2 1
703
KYB-M651X-00
4W204737 CORD-200V-POW 3
704 KYB-M654V-00 1010BC7V HNS,TRAY-POW 2
705 KYB-M6590-00 9W310109 CORD 2
706 KYB-M6568-00 0914B33X CORD 1
707 KYB-M657T-00 1010BC77 CORD 1
708 KYB-M655X-00 0798I12Y CODE 1
709 KYB-M655C-00 1010BC8Z HNS,G9-200V 1
710 KYB-M652M-00 1010BA01 ASSY-TERMINAL 1
711 KYB-M652N-00 1010BA02 ASSY-TERMINAL 1
712 KYB-M6577-00 10101A29 F200_ASSY 1
713 KYB-M652R-00 1010BA04 PANEL 1
718 KYB-M65BB-00 4J300207 CAB_JOINTTERMIN 12
719 KYB-M65B4-00 4J300049 CAB_JOINTTERMIN 17
720 KYB-M65B8-00 4J300169 CAB_JOINTTERMIN 3
721 KYB-M65B7-00 4J300116 CAB_JOINTTERMIN 21
723 KYB-M6596-00 225G1026 RIBBON TUBE 1
724 KYB-M6595-00 225G1023 VINIL TUBE 1
725 KYB-M6594-00 225G1021 VINIL TUBE 1
726 KYB-M6593-00 225G1019 MARKING TUBE 1
727 KYB-MD732-00 23K10022 CASE_CONN 1
728 KYB-M658M-00 4J300005 CABLE-JOINT-TERMINAL 1
729 KYB-M65B3-00 4J300016 CAB_JOINTTERMIN 1
730 KYB-M656C-00 0916D209 ACCESS-WIRING 30
732 90990-11J016 221DA053 SCREW,PAN HEAD WW 11 PAN M4L6 SW+FW
733 KYB-M65AB-00 226J0373 MOUNTING_BASE 7
