– 82 – D5 181 1-006 1 Frame Section 33 42 43 42 41 41 44 35 43 30 43 43 36 34 42 42 31 36 36 34 34 Feeder Base 1 Feeder Base 2 42 Positionig 1 Head 2 Vaccum Pump Vaccum Pump PCB S T PCB Z CLUM 41 41 42 42 Nozzle Stocker …
– 81 –
AIR SUPPLY SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
7 KYB-M65AB-00 226J0373 MOUNTING_BASE 1
8 98502-05008 221DA035 SCREW,PAN HEAD 1 PAN M5L8 SW+FW
21 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
22 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 4 M4L25
23 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 7 M5L8
24 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
25 92902-05600 221HA205 WASHER,PLAIN 4 FWS4
26 92902-04200 221HA104 WASHER,PLAIN 4 FW4
30 KYB-M91AH-00 1005AB03 PIPE_FITTINGS 4
31 KYB-M850T-00 1005AB00 PIPE_FITTINGS 3
32 KYB-M850X-00 1005AB05 PIPE_FITTINGS 1
33 KYB-M8514-00 1005AB0T PIPE_FITTINGS 5
34 KYB-M8515-00 1005AB0W PIPE_FITTINGS 1
35 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 3
36 KYB-M8516-00 1005AB0X PIPE_FITTINGS 2
37 KYB-M8511-00 1005AB08 PIPE_FITTINGS 2
38 KYB-M852A-00 225F0700 PIPE_FITTINGS 1
41 KYB-M850J-00 0914B203 TUBE_D6 1
42 KYB-M850K-00 0914B204 TUBE_D8 1
43 KYB-M850L-00 0914B205 TUBE_D10 1
44 KYB-M850M-00 0914B206 TUBE_D10_BU 1
51 KYB-M8519-00 1005BC5X CORD-DVI-5M 1
52 KYB-M851A-00 1005BC6T CORD-USB-A-A 1
60 KYB-M850E-00 1010BC96 HNS,HSIO-FB1 1
61 KYB-M8503-00 1010BZ0T FRAME(LOWER) 1
62 KYB-M851B-00 1005BK0B BOLT_CONNECT 4
63 KYB-M851C-00 1005BK0C NUT_CONNECT 4
64 KYB-M851F-00 221B0134 BOLT_HEX 4
65 KYB-M851G-00 221G0219 NUT 4

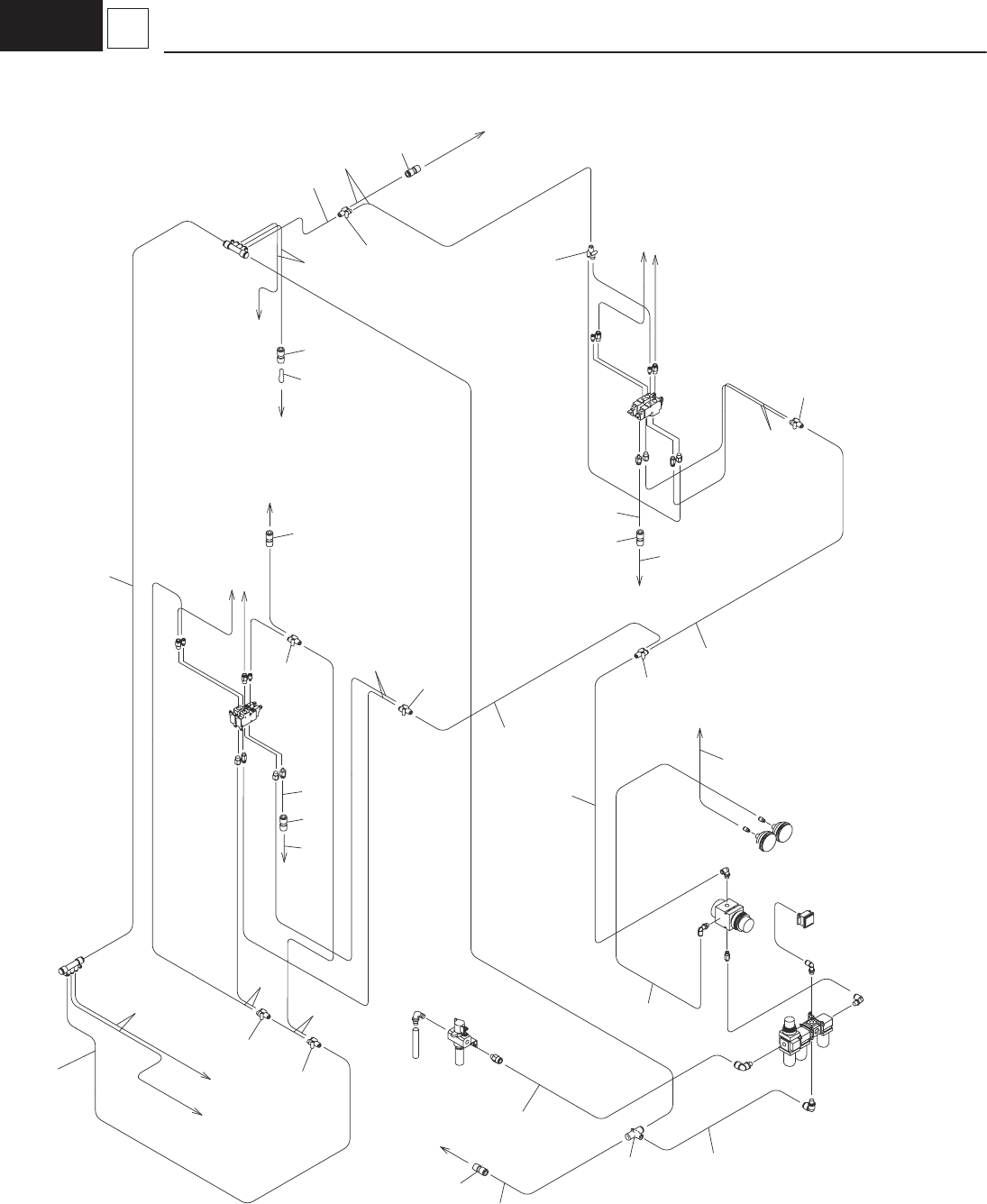

– 82 –
D5
1811-006
1 Frame Section
33
42
43
42
41
41
44
35
43
30
43
43
36
34
42
42
31
36
36
34
34
Feeder Base 1
Feeder Base 2
42
Positionig 1
Head 2
Vaccum Pump
Vaccum Pump
PCB S T
PCB Z CLUM
41
41
42
42
Nozzle Stocker 1
Positionig 2
Nozzle Stocker 2
32
39
31
Head 1
37
37
42
42
44
Vaccum
Pump
41
41
36
42
OPPE R
P
06-01
08-01
06-02
06-M5
06-M5
08-02
06-02
06-02
06-M5
06-M5
08-02
06-02
06-02
06-01
08-01
06-02
– 83 –
AIR SUPPLY SECTION
1811-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
7 KYB-M65AB-00 226J0373 MOUNTING_BASE 1
8 98502-05008 221DA035 SCREW,PAN HEAD 1 PAN M5L8 SW+FW
11 92902-05200 221HA105 WASHER,PLAIN 4 FW5
21 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
22 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 4 M4L25
23 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 7 M5L8
24 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2 M5L12
25 92902-05600 221HA205 WASHER,PLAIN 4 FWS4
26 92902-04200 221HA104 WASHER,PLAIN 4 FW4
30 KYB-M91AH-00 1005AB03 PIPE_FITTINGS 4
31 KYB-M850T-00 1005AB00 PIPE_FITTINGS 3
32 KYB-M850X-00 1005AB05 PIPE_FITTINGS 1
33 KYB-M8514-00 1005AB0T PIPE_FITTINGS 5
34 KYB-M8515-00 1005AB0W PIPE_FITTINGS 1
35 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 3
36 KYB-M8516-00 1005AB0X PIPE_FITTINGS 2
37 KYB-M8511-00 1005AB08 PIPE_FITTINGS 2
38 KYB-M852A-00 225F0700 PIPE_FITTINGS 1
41 KYB-M850J-00 0914B203 TUBE_D6 1
42 KYB-M850K-00 0914B204 TUBE_D8 1
43 KYB-M850L-00 0914B205 TUBE_D10 1
44 KYB-M850M-00 0914B206 TUBE_D10_BU 1
51 KYB-M8519-00 1005BC5X CORD-DVI-5M 1
52 KYB-M851A-00 1005BC6T CORD-USB-A-A 1
60 KYB-M850E-00 1010BC96 HNS,HSIO-FB1 1
61 KYB-M8503-00 1010BZ0T FRAME(LOWER) 1
62 KYB-M851B-00 1005BK0B BOLT_CONNECT 4
63 KYB-M851C-00 1005BK0C NUT_CONNECT 4
64 KYB-M851F-00 221B0134 BOLT_HEX 4
65 KYB-M851G-00 221G0219 NUT 4
