2 Retrofit instructions for third tape r eel adapter for component trolley R2, HF series / D3 Third tape reel adapter for compon ent trolley R2 06/2006 Edition 20 2.4.4 SMEMA 900 (with splice detection) The adapter is fi…
Third tape reel adapter for component trolley R22 Retrofit instructions for third tape reel adapter for component trolley R2, HF series / D3
06/2006 Edition
19

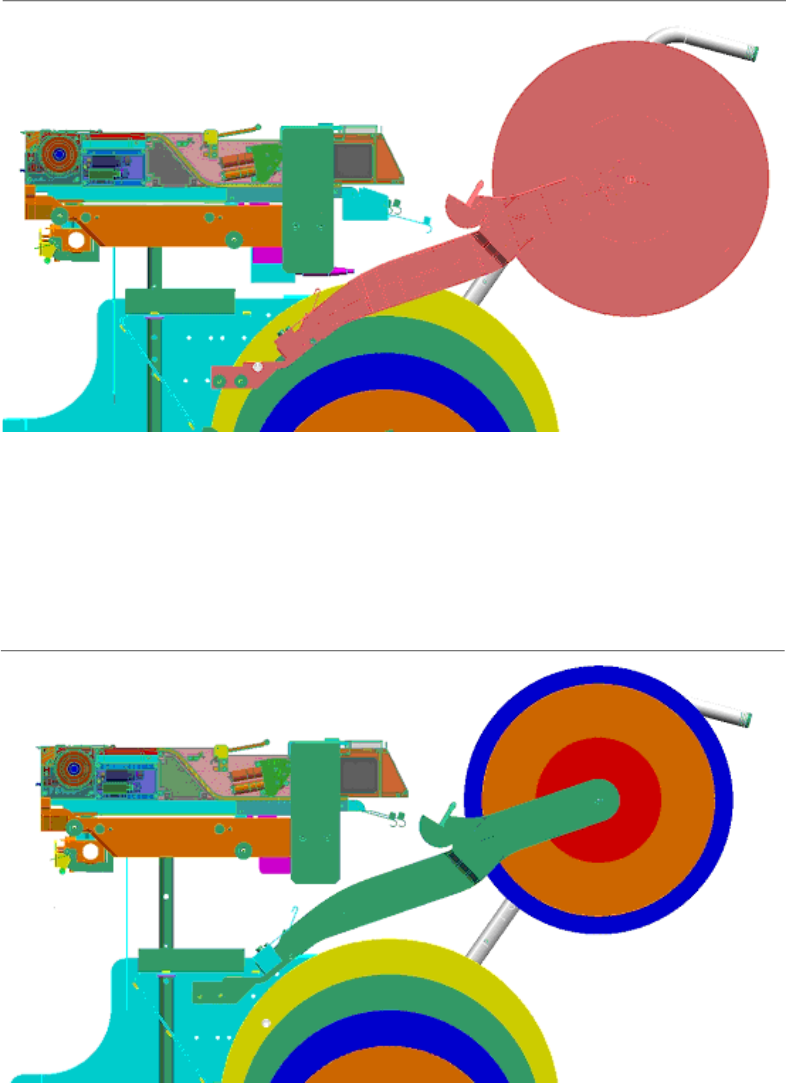

2.4.2 SMEMA 830 SD (with splice detection)
The adapter is fitted at the back two holes: 2
2
Tape reels up to 15 inches in diameter may be used. 2
2.4.3 SMEMA 900 (without splice detection)
The adapter is fitted at the front two holes: 2
2
Tape reels up to 19 inches in diameter may be used. 2
2 Retrofit instructions for third tape reel adapter for component trolley R2, HF series / D3 Third tape reel adapter for component trolley
R2
06/2006 Edition
20

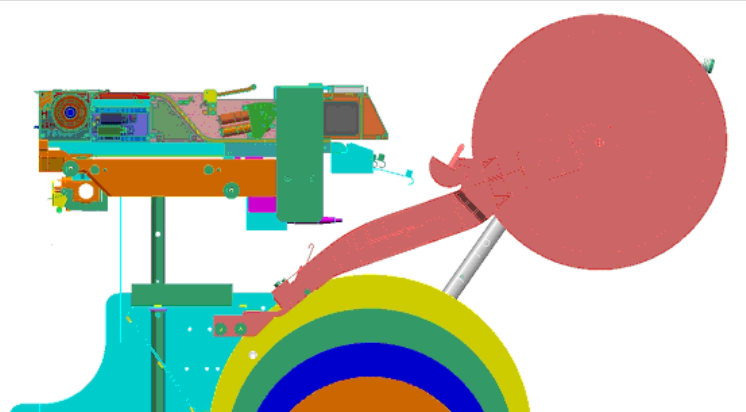

2.4.4 SMEMA 900 (with splice detection)
The adapter is fitted at the back two holes: 2
2
Tape reels up to 17 inches in diameter may be used. 2
2.5 Final tasks
: Set up the component trolley with tape reels.
: Dock the component trolley into the machine.
2
2
