MODEL TPM-100F/R 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 125 30 1 630 090 8541 BRACKET 1 748K--1 10-301 30 2 630 090 8589 BRACKET 1 748K--1 10-302 30 3 630 090 8596 BRACKET 1 748K--1 10-303 30 4 630 09…
MODEL TPM-100F/R
0102-001
124
メカ廻り MECHANICAL DISTRIBLITION SECTION

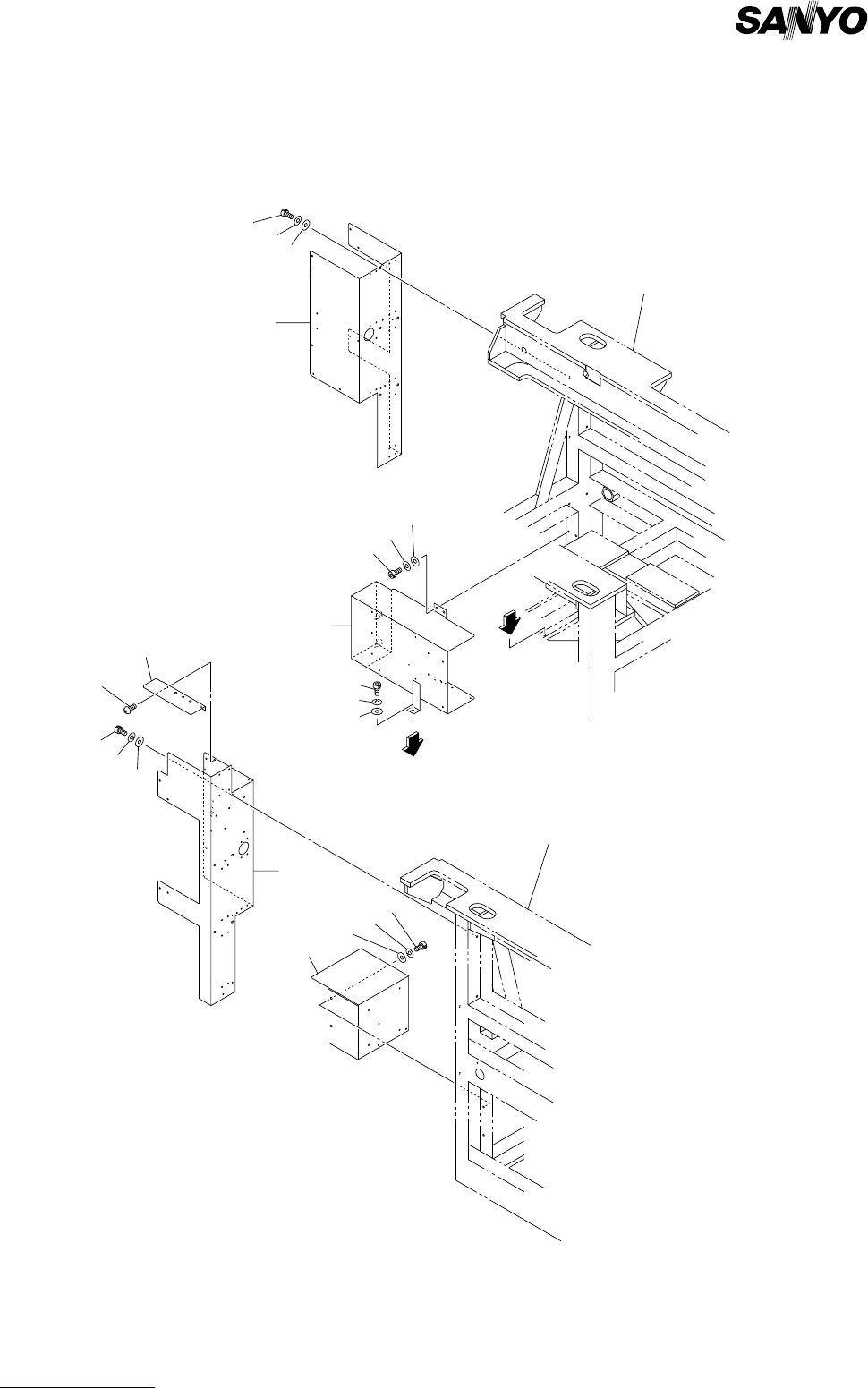

Fig. K-4 電装 1 Electrical Parts-1
366
361
365
302
370
308
365
366
361
303
See Fig.K-1
Key No.4
See Fig.K-3
Key No.201
365
366
361
367
370
306
368
362
361
309
310
367
368
364
370
366
365
367
301
307
369
368
363
305
A
A
304
Fig.K-4
TPM-100F/R
371
368
367
366
361
365
314
311
312
313
313
313
315
316
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
125
301 630 090 8541 BRACKET 1 748K--110-301
302 630 090 8589 BRACKET 1 748K--110-302
303 630 090 8596 BRACKET 1 748K--110-303
304 630 090 8602 BRACKET 1 748K--110-304
305 630 090 8619 BRACKET 1 748K--110-305
306 630 090 8657 BRACKET 1 748K--110-306
307 630 090 8688 BRACKET 1 748K--110-307
308 630 090 8503 BRACKET 1 748K--110-308
309 630 090 8510 BRACKET 1 748K--110-309
310 630 090 8442 PLATE 1 748K--110-310
311 630 091 0056 BRACKET 1 748K--110-311
312 630 092 8440 AIR LINE EQPT 1 748K--110-312
313 630 096 8170 PIPE FITTINGS 3 748K--110-313
314 630 092 8259 PIPE FITTINGS 1 748K--110-314
315 630 090 8923 COVER 1 748K--110-315
316 630 081 7485 PIPE FITTINGS 1 748K--110-316
361 630 000 7749 BOLT,HEX-SCT 14 748K--110-361
362 630 000 7671 BOLT,HEX-SCT 2 748K--110-362
363 630 000 7626 BOLT,HEX-SCT 2 748K--110-363
364 630 000 7602 BOLT,HEX-SCT 2 748K--110-364
365 411 141 4107 WASHER V 5X10X1 14 748K--110-365
366 411 141 6705 WASHER SPR 5 14 748K--110-366
367 411 141 4008 WASHER V 4X9X0.8 8 748K--110-367
368 411 141 2905 WASHER SPR 4 8 748K--110-368
369 411 140 8007 SCR TRS 5X6 2 748K--110-369
370 411 051 1708 SCR TRS 4X6 6 748K--110-370
371 630 000 7619 BOLT,HEX-SCT 2 748K--110-371
K-4
MODEL TPM-100F/R
0102-001
126
メカ廻り MECHANICAL DISTRIBLITION SECTION
Fig. K-5 電装 2 Electrical Parts-2
463
464
461
401
462
466
465
403
464
461
463
405
463
464
461
467
402
See Fig.K-1
Key No.4
See Fig.K-1
Key No.4
461
464
463
404
A
A
Fig.K-5
TPM-100F/R
