2 Assembly instructions Long Board Option SIPL ACE HS-50 HS-50 Modification Long Board Option 03/2007 Edition 32 : T est all the possible positions for the BERO. Make sure that the cables an d lines do not hang loose in …
HS-50 Modification Long Board Option 2 Assembly instructions Long Board Option SIPLACE HS-50
03/2007 Edition
31

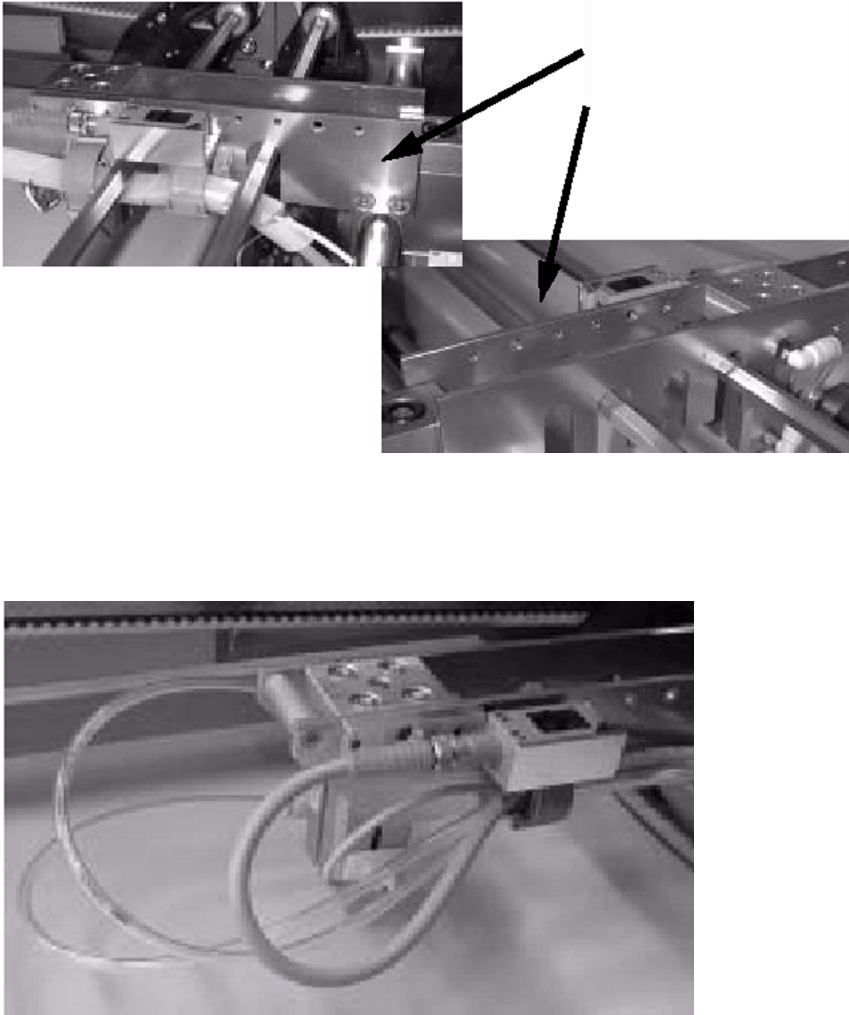

: Place the spiral hose around the cables to prevent them hanging out.
: Place the spiral hose in the cable clips.
2
Make sure that none of the cables sag in the PCB conveyor travelling range or touch moving parts.2
2
2
2
2
2
2
2
2
2
2
2
2
2
Cable clips
Spiral hose
2 Assembly instructions Long Board Option SIPLACE HS-50 HS-50 Modification Long Board Option
03/2007 Edition
32
: Test all the possible positions for the BERO. Make sure that the cables and lines do not hang
loose in any of the positions.
In position 1, the left-hand plate for positioning the scanning unit must be released.
2
Item 1: 2
2
Item 2: 2
2
HS-50 Modification Long Board Option 2 Assembly instructions Long Board Option SIPLACE HS-50
03/2007 Edition
33
Item 3: 2
2
2
Item 4: 2
2
2
2
Restriction at
position 3:
Minimum PCB width
set to 140 mm
