KHN_YG300_PL - 第11页
6 3 U-axis Assy Moving-axis KHN-080819 B,C T able B,C T able B,C T able B,C T able 17 18 16 20 19 21 32 17 18 16 20 19 21 32 8 6 28 33 5 9 9 28 1 1 41,42,43,44 10 10 24 34 1 29 38 13 14 50 29 27 27 15 35 40 22 28 28 25 4…
5
3

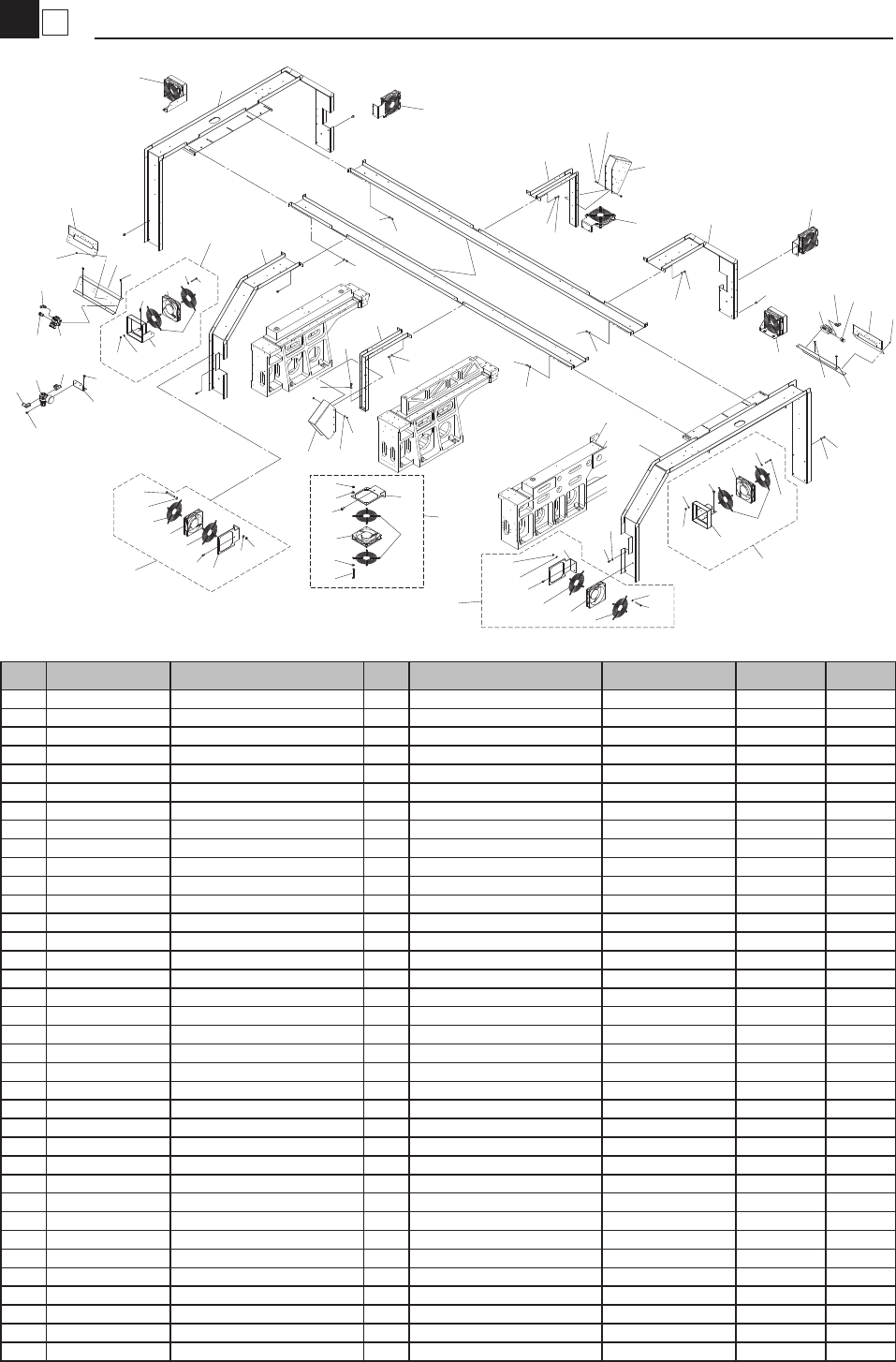

Y-axis (Frame)
Moving-axis
KHN-080819
1
6
7
2
8
5
16
22
21
8
2
8
7
10
14
9
17
22
18
23
24
13
1
27
6
29
32
28
22
17
31
31
35
30
34
17,22
15
3
17
22
8
34
8
28
28
28
8
16
22
16
22
22
16
22
16
4
5
17
3
22
15
22
17
21
13
23
24
18
9
10
14
29
32
32
32
28
31
31
31
31
31
31
30
35
35
30
34
29
29
35
30
28
33
28
29
32
31
31
35
30
20
26
25
12
19
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M26F1-00X FRAME 1 2
2 KHN-M26F2-00X FRAME 2 2
3 KHN-M26F3-00X FRAME 3 2
4 KHN-M26F4-00X FRAME 4 2
5 KHN-M11EE-00X BRACKET 1,BOARD 2
6 KHN-M263A-A0X FAN 1 ASSY 2
7 KHN-M263B-A0X FAN 2 ASSY 2
8 KHN-M263C-A0X FAN 3 ASSY 6
9 KHN-M2696-00X DUCT 2
10 KHN-M269A-00X BRKT.,TERMINAL BOARD 2
11 KHN-M2699-00X STAY,REGULATOR 1
12 KHN-M2949-00X REGULATOR 1
13 KH2-M7815-00X VALVE 2
13-1 KHN-M2972-30X VALVE, MANIFOLD 3 2 (2007/8/23) MD80029 OK
14 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
15 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
16 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
17 91312-05012 BOLT HEX.SOCKET HEAD 28 M5X12
18 91317-04008 BOLT HEX.SOCKET HEAD 8 M4X8
19 91317-06006 BOLT HEX.SOCKET HEAD 2 M6X6
20 91317-06010 BOLT HEX.SOCKET HEAD 2 M6X10
21 92902-04200 WASHER PLAIN 17
22 92902-05200 WASHER PLAIN 44
23 $KM-11 MUFFLER 2
24 $TL6-01 JOINT 2
25 $TL10-02 JOINT 1
26 $PHW6-02 JOINT 1
27 KHN-M263A-00X BRACKET 1,FAN 1
28 KGA-M4187-00X FAN GUARD 119MM 2
29 91317-04040 BOLT HEX.SOCKET HEAD 4 M4X4
30 91317-05008 BOLT HEX.SOCKET HEAD 2 M5X8
31 92907-04200 WASHER PLAIN 8
32 95307-04600 NUT HEXAGON 4
33 KHN-M263B-00X BRACKET 2,FAN 1
34 KHN-M263C-00X BRACKET 3,FAN 1
35 KHN-M6185-10X FAN MOTOR ASSY 8
6
3

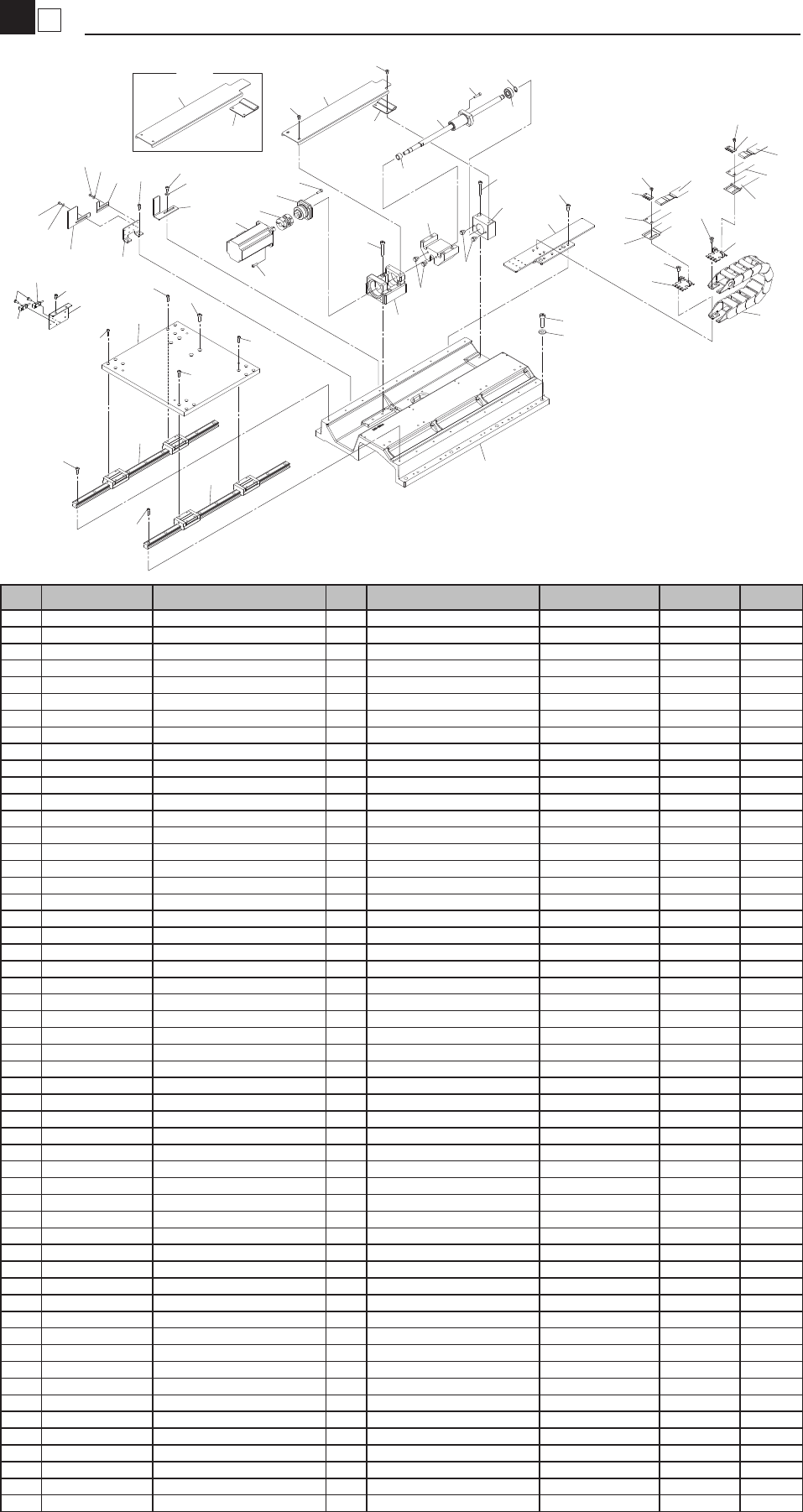

U-axis Assy
Moving-axis
KHN-080819
B,C Table
B,C Table
B,C Table
B,C Table
17
18
16
20
19
21
32
17
18
16
20
19
21
32
8
6
28
33
5
9
9
28
11
41,42,43,44
10
10
24
34
1
29
38
13
14
50
29
27
27
15
35
40
22
28
28
25
4
7
2
3
25
12
25
25
45
26
31
11
A,D Table
49
48
51
47
47
46
29
23
36
30
30
36
22
39
37
22
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M2801-00X FRAME U AXIS 1
2 KHN-M2820-00X HOLDER,MOTOR U 1
3 KHN-M2822-00X PLATE,MOTOR 1
4 KHN-M2823-00X HOLDER,BRG. U 1
5 KHN-M2802-00X SLEEVE,BRG. 1
6 KHN-M2803-00X SCREW BALL,U AXIS 1
7 KHN-M2804-00X HOLDER,NUT 1
8 KHN-M2807-00X COVER,BS 1
9 KHN-M2808-00X BOLT,STOPPER 2
9-1 90990-33J025 BOLT,STOPPER 2 (2008/6/18) ME20019 OK
10 KHN-M2877-S0X GUIDE SET,U AXIS 1
11 KG2-M2604-00X SUPPORT UNIT 1
12 KM0-M2220-00X COUPLING, X-AXIS 1
13 KHN-M2805-00X PLATE,DUCT 1
14 KHN-M2806-00X TAPE,DUCT 1
15 KHN-M2821-00X DUCT,CABLE 1
16 KHN-M2829-00X TAPE,OUTSIDE 1
17 KHN-M2830-00X TAPE,INSIDE 1
18 KHN-M2831-00X TAPE,MIDDLE 1
19 KHN-M291C-00X T2 DUCT BRACKET 1 2
20
KHN-M2266-00X LOW HEAD C.S. 8
20-1
90990-01J032 BOLT,HEX.SOCKET HEAD 8 (2007/10/29) MD00030 OK
21 KHN-M291D-00X T2 DUCT BRACKET 2 2
22 KHN-M2826-00X DOG,ORIGIN 1
22-1 KHN-M2826-01X DOG,ORIGIN 1 (2008/7/3) ME60155 NG
23 KHN-M2827-01X DOG,2ND LIMIT 1
23-1 Delete (2008/7/3) ME60155
24 91317-08030 BOLT HEX.SOCKET HEAD 10 M8X30
25 91312-06020 BOLT HEX.SOCKET HEAD 16 M6X20
26 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
27 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
28 91312-04014 BOLT HEX.SOCKET HEAD 40 M4X14
29 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
30 91312-03006 BOLT HEX.SOCKET HEAD 4
30-1 Delete (2008/7/3) ME60155
31 98902-04008 SCREW,BINDING HEAD 4
32 98902-03005 SCREW,BINDING HEAD 4
33 92903-04100 WASHER SPRING 4
34 92907-08200 WASHER PLAIN 10
35 92907-04200 WASHER PLAIN 2
35-1 92902-04200 WASHER PLAIN 2 (2007/9/17) MD70177 OK
35-2 92902-04200 WASHER PLAIN 4 (2008/7/3) ME60155 OK
36 92902-03200 WASHER PLAIN 4
36-1 Delete (2008/7/3) ME60155
37 KHN-M2825-00X BRACKET A,DOG 2 for A,D Table
37-1 Delete (2008/7/3) ME60155
38 KHN-M2828-01X DOG A 1 for A,D Table
39 KHN-M2825-10X BRACKET B,DOG 2 for B,C Table
39-1 Delete (2008/7/3) ME60155
40 KHN-M2828-11X DOG B 1 for B,C Table
41 90K63-611350 AC SERVO MOTOR 1 for A Table
42 90K63-611351 AC SERVO MOTOR 1 for B Table
43 90K63-611352 AC SERVO MOTOR 1 for C Table
44 90K63-611353 AC SERVO MOTOR 1 for D Table
45 99009-10400 CIRCLIP 1
46 KHN-M652A-30X SENSOR,U ORG 1 (2007/12/6) MD00003
47 98902-03008 SCREW BINDING HEAD 2
48 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
49 KHN-M9128-00X BRACKET A,SENSOR 2 for A,D Table
50 KHN-M9128-10X BRACKET B,SENSOR 2 for B,C Table
51 KHN-M652B-20X SENSOR,U OT 1 (2007/12/6) MD00003
7
3

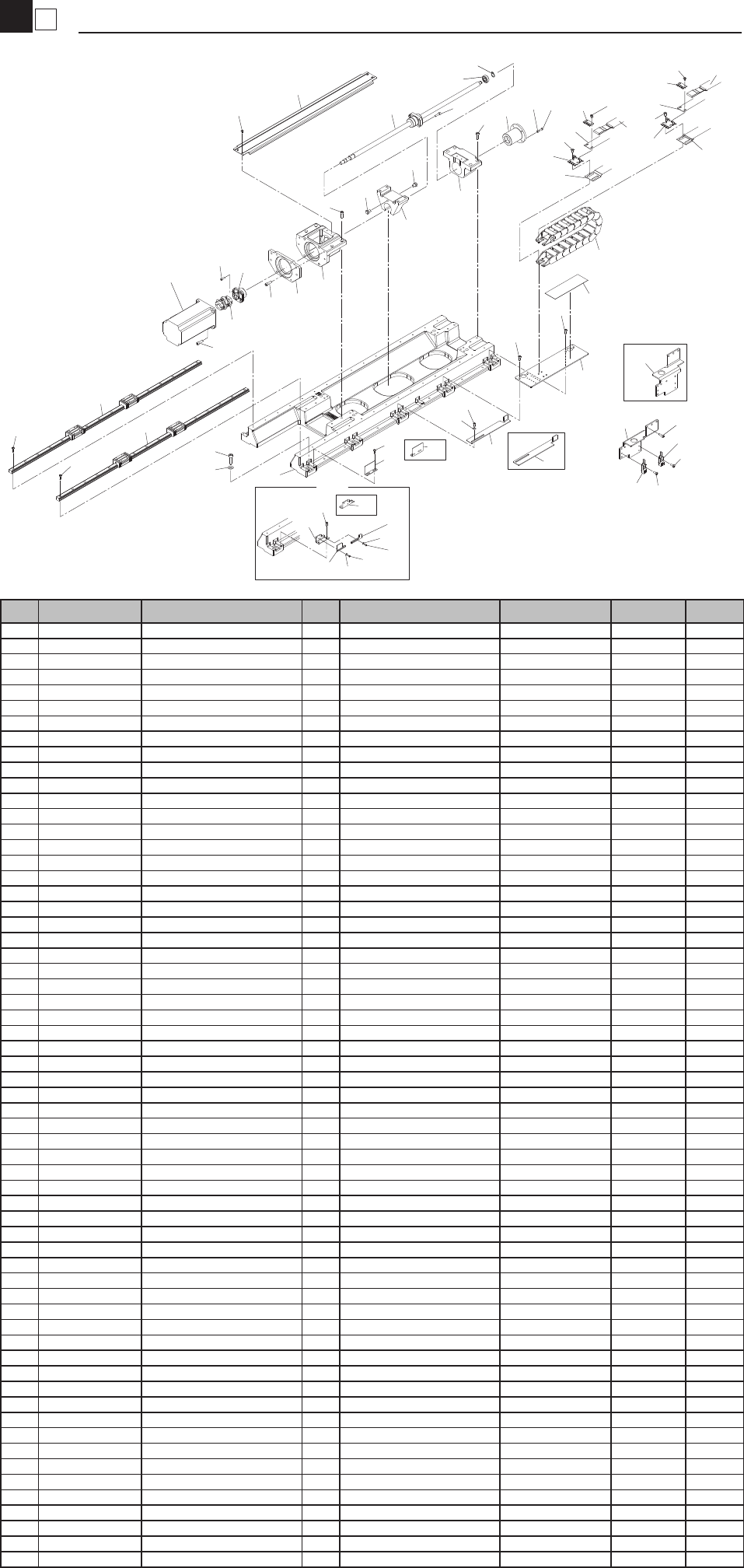

UL/R-axis Assy
Moving-axis
KHN-080820
48
44
46
45
47
36
41
36
41
25
26
34
33
1
27
39
16
38
21
22
31
3
29
11
10
8
32
7
13
4
28
5
5
38
22
20
20
21
2
17
17
19
19
18
18
33
14
6
14
35
40
35
12
12
49
49
33
9
15
42,43
33
33
33
33
30
37
37
24
23
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M2A01-00X FRAME UR 1
2 KHN-M2A02-00X HOLDER,MOTOR UR 1
3 KHN-M2A03-00X HOLDER,BRG. UR 1
4 KHN-M2A04-00X HOLDER,NUT 1
5 KHN-M9131-00X BOLT,STOPPER 4
5-1 90990-33J024 BOLT,STOPPER 4 (2008/6/18) ME20019 OK
6 KHN-M2A05-00X PLATE BASE 2 1
7 KHN-M9C00-00X BALL SCREW UR 1
8 KHN-M2A06-00X COLLAR UR BS 1
9 KW3-M2208-00X
SUPPORT UNIT 1
10 90933-01J000 BEARING 1
11 99009-10400 CIRCLIP 1
12 KHN-M2A07-00X COVER,BS 1
12-1 KHN-M2A07-01X COVER,BS 1 (2007/8/2) MD60013 NG
12-3
KHN-M2A07-02X COVER,BS 1 (2007/8/22) MD70137 NG
13 KHN-M2A08-01X PLATE,DUCT 1
14 KHN-M2A09-00X LM RAIL & BLOCK ASSY 2
15 KHN-M2A0A-00X COUPLING 1
16 KHN-M2A0B-00X DUCT,CABLE 1
17 KHN-M2A0C-00X TAPE,OUTSIDE 1
18 KHN-M2A0D-00X TAPE,INSIDE 1
19 KHN-M2A0E-00X TAPE,MIDDLE 1
20 KHN-M291C-00X T2 DUCT BRACKET 1 2
21
KHN-M2266-00X LOW HEAD C.S. 8
21-1
90990-01J032 BOLT,HEX.SOCKET HEAD 8 (2007/10/29) MD00030 OK
22 KHN-M291D-00X T2 DUCT BRACKET 2 2
23 KHN-M2A0F-00X BRACKET,DOG 1
24 KHN-M2A0G-00X DOG,ORIGIN 1
25 KHN-M2A0H-00X DOG,2ND LIMIT 1
26 KHN-M2A0J-00X DOG UR 1
27 91317-08030 BOLT HEX.SOCKET HEAD 8 M8X30
28 91312-06035 BOLT HEX.SOCKET HEAD 4 M6X35
29 91312-05035 BOLT HEX.SOCKET HEAD 2 M5X35
30 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
31 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
32 91312-04018 BOLT HEX.SOCKET HEAD 4 M4X18
33 91312-04014 BOLT HEX.SOCKET HEAD 38 M4X14
34 91312-04012 BOLT HEX.SOCKET HEAD 4 M4X12
35 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
36 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
37 98902-04008 SCREW,BINDING HEAD 4
38 98902-03005 SCREW,BINDING HEAD 4
39 92907-08200 WASHER,PLAIN 8
40 92902-04200 WASHER,PLAIN 2
41 92902-03200 WASHER,PLAIN 4
42 90K63-311355 AC SERVO MOTOR 1 <UR>
43 90K63-311354 AC SERVO MOTOR 1 <UL>
44 KHN-M652B-40X SENSOR,ULR OT 1 E2S-W22B 2nd Limit (2007/12/6) MD00003
45 KHN-M652A-10X SENSOR,ULR ORG 2 E2S-W22 Origin (2007/12/6) MD00003
46 KHN-M9511-00X BRACKET,SENSOR 1
47 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
48 98902-03008 SCREW,BINDING HEAD 3
49 KHN-M2A0K-00X PLATE,SPRING 1 (2007/8/2) MD60013
49-1 KHN-M2A0K-01X PLATE,SPRING 1 (2007/8/22) MD70137 NG
