KHN_YG300_PL - 第19页
4 4 Feeder Holder 8 (CLI/IND) Feeder Holder KHN-080821 37 28 Q side P side 3 28 37 35 35 41 1 31 40 31 20 9 19 29 13 17 1 1 30 34 39 34 15 34 34 32 38 36 29 4 5 32 27 22 23 7 33 33 33 6 8 9 21 38 29 36 34 29 30 14 34 34 …
3
4
Feeder Holder 8 (STD/IND)
Feeder Holder
KHN-080821
3
17
23
23
17
26
26
25
1
19
19
10
9
20
24
22
18
28
27
4
5
24
22
18
20
16
12
7
21
21
21
21
6
8
9
11
24
18
22
14
13
16
15
29
2
24
18
22
IND TYPE
30 - 33
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-C3X PLATE C,FEEDER 1
2 KM0-M3402-C0X GUIDE C-1,TAPE 1
3 KHN-M3403-C0X GUIDE C-2,TAPE 1
4 KM0-M3405-03X STAND,1 1
5 KM0-M3406-02X STAND,2 1
6 KM0-M3408-C0X BRACKET C VALVE 1
7 KL0-M3409-C1X COVER C VALVE 1
8 KGA-M3410-80X VALVE ASSY,8-R 1
9 KM0-M3417-00X GUIDE 4 SEL. 2
10 KGS-M3E10-00X GUIDE TAPE BRACKET,R 1
11 KGS-M3E11-00X GUIDE TAPE BRACKET,L 1
12
KGS-M3430-00X LABEL,FEEDER 24 1 1-24/101-148
KGS-M3430-10X LABEL,FEEDER 24 1 2-48/101-147
KHN-M3430-00X LABEL,FEEDER 24 1
12-1
KGS-M3430-01X LABEL,FEEDER 24 1 1-24/25-48 (2007/12/24) MDY0110 OK
KGS-M3430-11X LABEL,FEEDER 24 1 2-23/26-48 (2007/12/24) MDY0110 OK
KGS-M3430-20X LABEL,FEEDER 24 1 101-148 (2007/12/24) MDY0110
KGS-M3430-30X LABEL,FEEDER 24 1 101-147 (2007/12/24) MDY0110
KHN-M3430-00X LABEL,FEEDER 24 1 201-248/301-348
13 KG2-M3407-A0X AIR JOINT 8
14 $BF4BU JOINT 8
15 KM5-M34B0-01X FEEDER PLATE ASSY 8 1
16 91317-03006 BOLT HEX.SOCKET HEAD 4 M3X6
17 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
18 91317-04010 BOLT HEX.SOCKET HEAD 8 M4X10
19 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
20 91317-08020 BOLT HEX.SOCKET HEAD 4 M8X20
21 90990-12J005 SCREW,BIN. HEAD W/W 10
22 92907-04200 WASHER PLAIN 11
23 92907-04600 WASHER,PLAIN (S) 2
24 92990-04400 WASHER EXTL.TOOTHED 8
24-1 90172-00J040 WASHER,EXTL.TOOTHED 8 (2008/4/15) ME40115 OK
25 KHN-M3E04-C0X GUIDE C-3,TAPE 1
26 98907-03008 SCREW, BINDING HEAD 4
27 KGS-M3E01-00X LIGHT GUIDE 1
28 KGS-M4576-01X FDR LED BOARD ASSY 1
29 KG2-M3403-C1X GUIDE C-2,TAPE 1
30 KHN-M66X4-00X HNS,INDI,A1 1 for A Table
31 KHN-M66X7-00X HNS,INDI,B1 1 for B Table
32 KHN-M66X2-00X HNS,INDI,C1 1 for C Table
33 KHN-M66X9-00X HNS,INDI,D1 1 for D Table
4
4

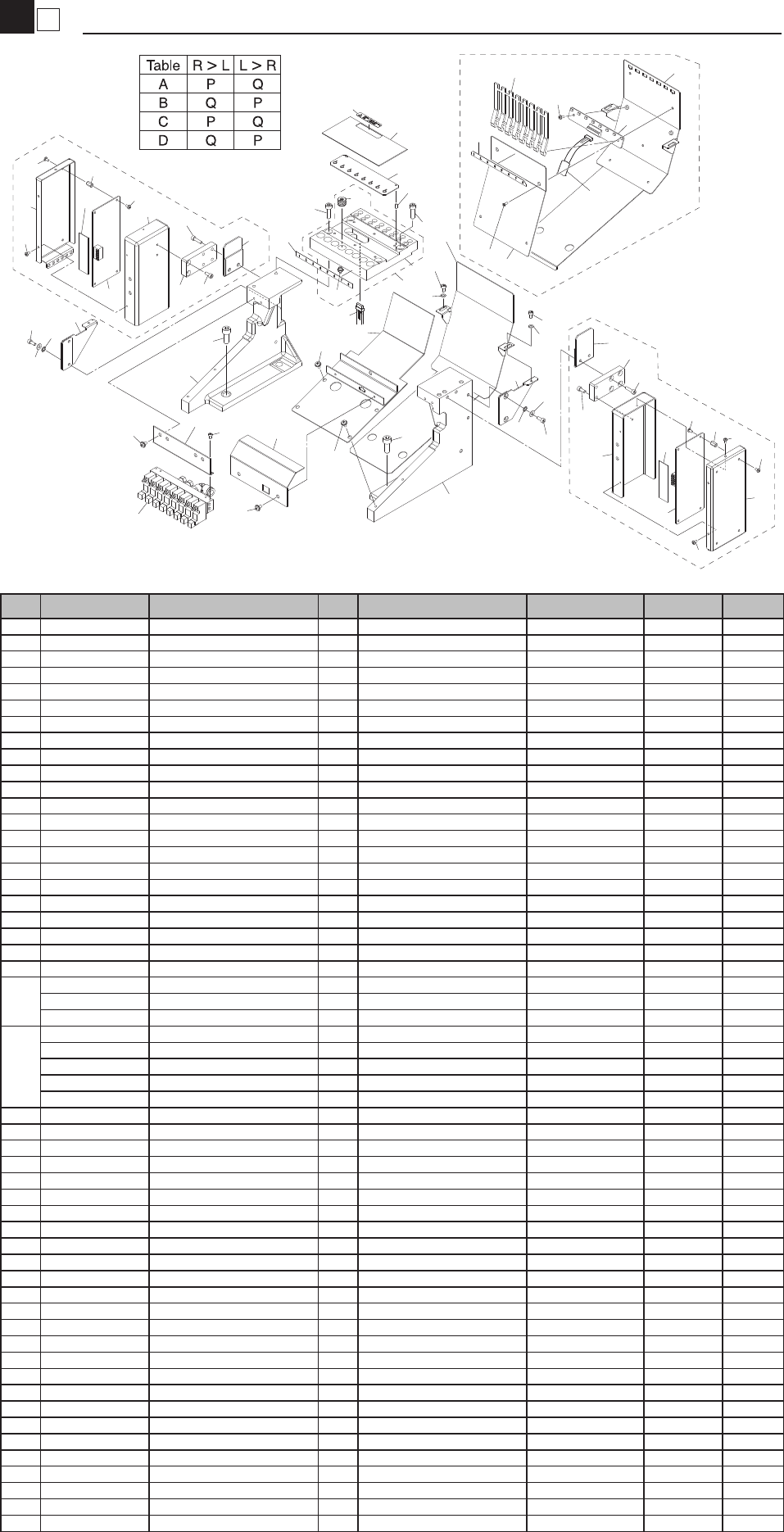

Feeder Holder 8 (CLI/IND)
Feeder Holder
KHN-080821
37
28
Q side
P side
3
28
37
35
35
41
1
31
40
31
20
9
19
29
13
17
11
30
34
39
34
15
34
34
32
38
36
29
4
5
32
27
22
23
7
33
33
33
6
8
9
21
38
29
36
34
29
30
14
34
34
39
16
17
11
19
25
24
23
33
26
2
48
18
10
12
42
43
44 - 47
IND TYPE
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M3C01-C0X PLATE C,FEEDER-8 1
2 KM0-M3402-C0X GUIDE C-1,TAPE 1
3 KHN-M3E03-C0X GUIDE C-2,TAPE 1
4 KGA-M3C05-01X STAND,1 1
5 KGA-M3C06-01X STAND,2 1
6 KM0-M3408-C0X BRACKET C VALVE 1
7 KL0-M3409-C1X COVER C VALVE 1
8 KGA-M3410-80X VALVE ASSY,8-R 1
9 KM0-M3417-00X GUIDE 4 SEL. 2
10 KGR-M4452-12X ID READER BOARD ASSY 1
11 KGR-M4476-06X READER CTRL BD. ASSY 1
12 KGA-M3C20-10X PLATE 1
13 KHN-M3C21-00X BOX R 1
14 KHN-M3C21-10X BOX L 1
15
KGA-M3C22-00X COVER R 1
16 KGA-M3C22-10X COVER L 1
17 KGA-M3C23-00X WINDOW 1
18 KGA-M3C24-00X SEAL,CAUTION 1
19 KHN-M3C25-00X SPACER,E/L BOX 1
20 KGS-M3E10-00X GUIDE TAPE BRACKET,R 1
21 KGS-M3E11-00X GUIDE TAPE BRACKET,L 1
22 KGR-M66T7-10X HNS,ANT CTRL 1
23
KGS-M3430-00X LABEL,FEEDER 24 1 1-24/101-148
KGS-M3430-10X LABEL,FEEDER 24 1 2-48/101-147
KHN-M3430-00X LABEL,FEEDER 24 1
23-1
KGS-M3430-01X LABEL,FEEDER 24 1 1-24/25-48 (2007/12/24) MDY0110 OK
KGS-M3430-11X LABEL,FEEDER 24 1 2-23/26-48 (2007/12/24) MDY0110 OK
KGS-M3430-20X LABEL,FEEDER 24 1 101-148 (2007/12/24) MDY0110
KGS-M3430-30X LABEL,FEEDER 24 1 101-147 (2007/12/24) MDY0110
KHN-M3430-00X LABEL,FEEDER 24 1 201-248/301-348
24 KG2-M3407-A0X AIR JOINT 8
25 $BF4BU JOINT 8
26 KHN-M3CA0-C0X FEEDE PLATE 8 ASSY 1
27 91317-03006 BOLT HEX.SOCKET HEAD 4 M3X6
28 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
29 91317-04010 BOLT HEX.SOCKET HEAD 8 M4X10
30 91317-04016 BOLT HEX.SOCKET HEAD 2 M4X16
31 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
32 91317-08020 BOLT HEX.SOCKET HEAD 4 M8X20
33 90990-12J005 SCREW, BIN. HEAD W/W 10
34 98907-03006 SCREW BINDING HEAD 11
35 98907-03008 SCREW BINDING HEAD 4
36 92907-04200 WASHER PLAIN 11
37 92907-04600 WASHER,PLAIN (S) 2
38 92990-04400 WASHER EXTL.TOOTHED 6
38-1 90172-00J040 WASHER,EXTL.TOOTHED 6 (2008/4/15) ME40115 OK
39 90562-03J100 SPACER 4
40 99480-03008 PIN,PARALLEL 2
41 KHN-M3E04-C0X GUIDE C-3,TAPE 1
42 KGS-M3E01-00X LIGHT GUIDE 1
43 KGS-M4576-01X FDR LED BOARD ASSY 1
44 KHN-M66X4-00X HNS,INDI,A1 1 for A Table
45 KHN-M66X7-00X HNS,INDI,B1 1 for B Table
46 KHN-M66X2-00X HNS,INDI,C1 1 for C Table
47 KHN-M66X9-00X HNS,INDI,D1 1 for D Table
48 KHN-M3403-C0X GUIDE C-2,TAPE 1
A,D Table
A,D Table
S.T.D
B,C Table
F.E.S
B,C Table
A Table
B Table
C Table
D Table
15
15
6
12
9
13
11
15
10
16
17
3
3
4
5
14
11
1
10
11
17
16
12
11
8
4
5
16
17
15
15
6
14
11
10
12
11
3
12
15
6
15
4
17
16
14
2
11
10
5
9
11
13
2
7
16
16
1
14
6
15
4
5
3
5
4
Feeder Floating Det.-Op-
Feeder Holder
KHN-080821
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M3901-10X BRACKET SENSOR 2 for Left setting
2 KHN-M3901-20X BRACKET SENSOR 2 for Right setting
3 KG2-M3903-10X SEAL,LASER 4
4 KHN-M3906-00X BRACKET 6 4
5 KHN-M3910-00X BRACKET SENSOR 1 4
6 KGS-M3911-00X SQUARE WASHER 4
7 KGS-M3941-00X BRACKET 4-1,SENSOR R 1 for Right setting
8 KGS-M3942-00X BRACKET 4-2,SENSOR R 1 for Left setting
9 KGS-M3790-00X SENSOR BRACKET 2 for F.E.S
10 KHN-M3951-00X PLATE SENSOR 4
11
KHN-M653E-10X SENSOR,LSR-24 A-R 1 A-Table 24 R>L
KHN-M653E-20X SENSOR,LSR-8 A-R 1 A-Table 8 R>L
KHN-M653E-30X SENSOR,LSR-24 B-R 1 B-Table 24 R>L
KHN-M653E-40X SENSOR,LSR-8 B-R 1 B-Table 8 R>L
KHN-M653E-50X SENSOR,LSR-24 C-R 1 C-Table 24 R>L
KHN-M653E-60X SENSOR,LSR-8 C-R 1 C-Table 8 R>L
KHN-M653E-70X SENSOR,LSR-24 D-R 1 D-Table 24 R>L
KHN-M653E-80X SENSOR,LSR-8 D-R 1 D-Table 8 R>L
KHN-M653E-90X SENSOR,LSR-24 A-L 1 A-Table 24 L>R
KHN-M653E-A0X SENSOR,LSR-8 A-L 1 A-Table 8 L>R
KHN-M653E-B0X SENSOR,LSR-24 B-L 1 B-Table 24 L>R
KHN-M653E-C0X SENSOR,LSR-8 B-L 1 B-Table 8 L>R
KHN-M653E-D0X SENSOR,LSR-24 C-L 1 C-Table 24 L>R
KHN-M653E-E0X SENSOR,LSR-8 C-L 1 C-Table 8 L>R
KHN-M653E-F0X SENSOR,LSR-24 D-L 1 D-Table 24 L>R
KHN-M653E-G0X SENSOR,LSR-8 D-L 1 D-Table 8 L>R
12 90115-02J005 BOLT HEX.SOCKET HEAD 8
13 90115-02J006 BOLT HEX.SOCKET HEAD 4 for F.E.S
14 91317-03012 BOLT HEX.SOCKET HEAD 8 M3X12
15 91317-04010 BOLT HEX.SOCKET HEAD 16 M4X10
16 91317-04012 BOLT HEX.SOCKET HEAD 16 M4X12
17 92907-04200 WASHER,PLAIN 8
