KHN_YG300_PL - 第24页
3 5 R-Assy Head KHN-080829 3 22 12 1 2 10 27 27 20 24 20 6 14 13 14 22 2 10 18 20 6 17 17 1 12 26 5 15 21 4 5 16 22 21 18 14 14 13 14 1 1 21 19 19 23 22 7 23 9 8 23 20 27 14 13 14 20 25 3 14 13 14 1 1 20 27 14 13 14 20 2…
2
5

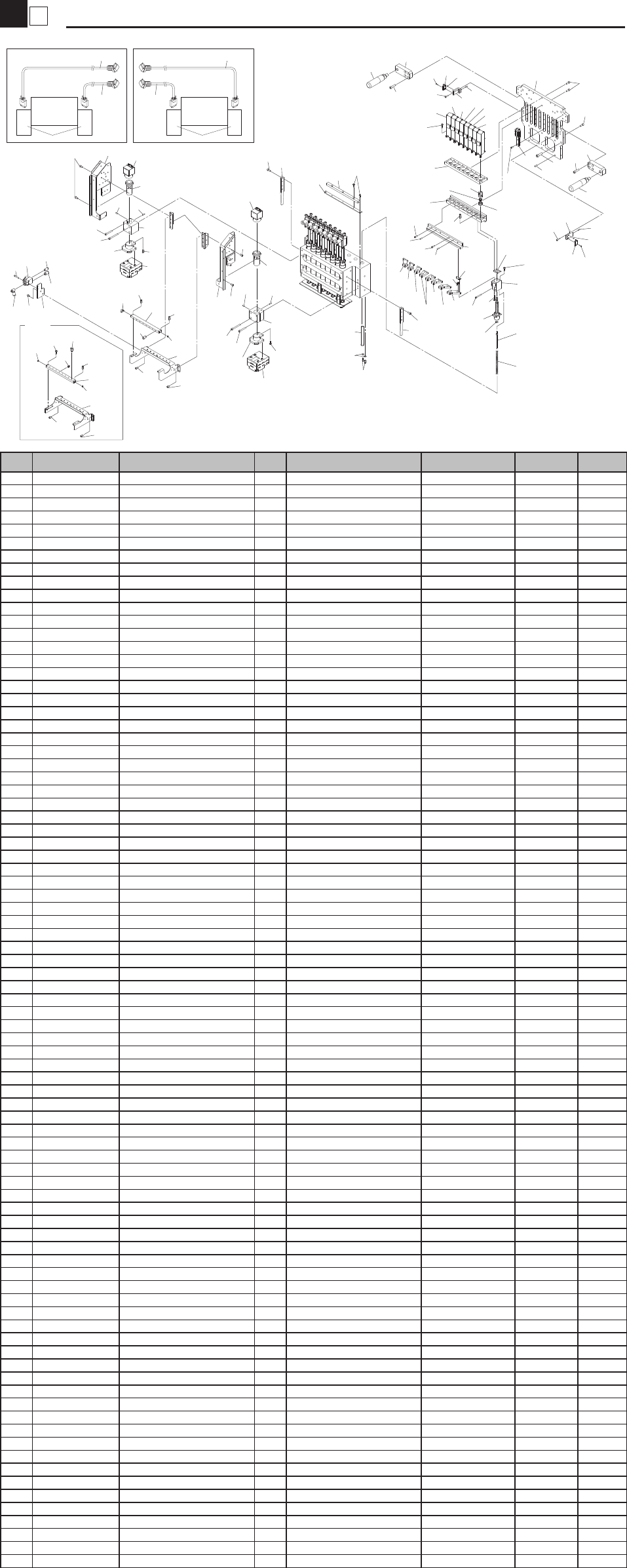

Head Combination
Head
KHN-080821
A,D Table
KHN-N66N3-10X
KHN-N66N3-00X
Head
Camera
B,C Table
KHN-N66N3-10X
KHN-N66N3-00X
Head
Camera
69
1
4
34
33
32
31
30
29
28
27
17
15
72
61
12
3
2
25
55
55
61
61
60
14
18
59
19
21
20
18
19
20
55
24
61
10
6
7
57
60
58
5
54
54
5
11
10
58
61
64
11
12
35
16
22
23
26
65
8
41
60
77
47
42
46
43
66
67
45
37
63
75
74
75
74
60
48
44
38
66
66
41
60
OLD
48
60
40
48
44
38
66
66
51
52
49
60
55
52
51
67
54
49
60
53
9
68
68
9
53
71
70
71
36
67
70
50
50
54
55
39
69
8
56
76
73
13
4
72
62
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M7111-00X PLATE,HEAD 1
2 KHN-M7113-00X PLATE,SCREW Z 1
3 KHN-M7114-00X PLATE,MOTOR Z 1
4 KHN-M7115-00X STAY,HANDLE 2
5 KHN-M7116-00X STAY,SENSOR 2
6 KHN-M712E-00X DAMPER2 1
7 KHN-M712H-00X PLATE,DAMPER Z 1
8 KGS-M2256-00X GRIP 2
9 KHN-M71E2-00X HOLDER,MULTI MACS 2
10 KHN-M652L-10X SENSOR Z-DOWN SAFETY 1
11 KV8-M71VS-00X COLLAR,SENSOR 4
11-1 90990-41J066 COLLAR 4 (2008/4/17) ME20197 OK
12 KHN-M7121-00X BALL SCREW 8
13 KHN-M7122-A0X GUIDE 8
14 KHN-M7123-00X BLOCK,SCREW 8
15 KHN-M712A-00X BEARING 8
16 KHN-M712K-00X GUIDE,SPRING 8
17 KHN-M712M-00X COUPLING 8
18 KHN-M7126-00X ARM 1 8
19 KHN-M7127-00X ARM 2 8
20 KHN-M7128-00X ARM 3 8
21 KHN-M7129-00X ARM 4 8
22 KHN-M712B-00X SPRING,RETURN 8
23 KHN-M712C-00X COLLAR SPRING 8
24 KHN-M712D-00X DAMPER1 8
25 KHN-M712F-00X BLOCK,STOPPER SF 1
26 KHN-M712G-00X PLATE BEARING 8
27 90K20-012003 AC SERVO MOTER Z1 1
28 90K20-012204 AC SERVO MOTER Z2 1
29 90K20-011805 AC SERVO MOTER Z3 1
30 90K20-011906 AC SERVO MOTER Z4 1
31 90K20-011507 AC SERVO MOTER Z5 1
32 90K20-011808 AC SERVO MOTER Z6 1
33 90K20-011509 AC SERVO MOTER Z7 1
34 90K20-011910 AC SERVO MOTER Z8 1
35 99009-07800 CIRCLIP : 8
36 KHN-M7173-01X BRACKET,EJECTOR R 1
37 KHN-M7174-01X BRACKET,EJECTOR L 1
38 KHN-M7175-00X BRACKET,HNS. VALVE 1
38-1 KHN-M7175-10X BRACKET,HNS. VALVE 1 (2008/5/23) ME30096 NG
39 KHN-M7177-00X BRACKET,VALVE 2
40 $BF4BU-M3 JOINT 1
40-1 Delete (2008/5/23) ME30096
41 $TSH4-M3M JOINT 8
42 $KM-05 MUFFLER 1
43 $SLH4-M5 JOINT 1
44 KHN-M717A-00X MANIFOLD,BLOW 1
44-1 KHN-M717A-10X MANIFOLD,BLOW 1 (2008/5/23) ME30096 NG
45 KHN-M7179-00X PLATE VALVE 1
46 KGS-M7176-00X VALVE 1
47 $TSH6-M5M JOINT 1
48 $PFS-M3 PLUG 2
48-1 $PFS-M3 PLUG 1 (2008/5/23) ME30096 OK
49 KHN-M71B3-00X HOLDER,LENS 2
50 KHN-M71B4-00X STAY,FID LIGHT 2
51 KHN-M7210-00X CCD CAMERA 2
51-1 KHN-M7210-01X CCD CAMERA 2 (2007/10/1) MD90031 OK
52 KHN-M7211-00X LENS FID. 1
52-1 KHY-M7211-00X LENS FID. 1 (2008/8/19) ME80076 OK
53 KHN-M7600-00X FIDUCIAL LIGHT ASSY. 2
54 99480-03008 PIN,PARALLEL 8
55 99480-03010 PIN,PARALLEL 24
56 99480-04010 PIN PARALLEL: 4X10 6
57 92907-03200 WASHER PLAIN 16
58 90115-02J008 BOLT HEX.SOCKET HEAD 4
59 91317-03008 BOLT HEX.SOCKET HEAD 5 M3X8
60 91317-03010 BOLT HEX.SOCKET HEAD 60 M3X10
61 91317-03012 BOLT HEX.SOCKET HEAD 22 M3X12
62 91317-03014 BOLT HEX.SOCKET HEAD 32 M3X14
63 91317-03018 BOLT HEX.SOCKET HEAD 2 M3X18
64 91317-03020 BOLT HEX.SOCKET HEAD 16 M3X20
65 91317-03025 BOLT HEX.SOCKET HEAD 32 M3X25
66 91317-04006 BOLT HEX.SOCKET HEAD 6 M4X6
67 91317-04008 BOLT HEX.SOCKET HEAD 14 M4X8
68 91317-04010 BOLT HEX.SOCKET HEAD 4 M4X10
69 91317-04012 BOLT HEX.SOCKET HEAD 16 M4X12
70 91317-04030 BOLT HEX.SOCKET HEAD 4 M4X30
71 91317-04040 BOLT HEX.SOCKET HEAD 4 M4X40
72 91317-05020 BOLT HEX.SOCKET HEAD 8 M5X20
73 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
74 KHN-M66N3-00X HNS,FID CAMERA 1 1
75 KHN-M66N3-10X HNS,FID CAMERA 2 1
76 91312-03008 BOLT HEX.SOCKET HEAD 32 M3X8
77 $TL4-M3M JOINT
1
(2008/5/23) ME30096
3
5
R-Assy
Head
KHN-080829
3
22
12
1
2
10
27
27
20
24
20
6
14
13
14
22
2
10
18
20
6
17
17
1
12
26
5
15
21
4
5
16
22
21
18
14
14
13
14
11
21
19
19
23
22
7
23
9
8
23
20
27
14
13
14
20
25
3
14
13
14
11
20
27
14
13
14
20
25
13
14
20
24
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M7131-00X PULLY R MOTOR 2
2 KHN-M7132-00X BLOCK1 STOPPER 2
2-1 KHN-M7132-A0X BLOCK STOPPER ASSY 2 (2014/2/12) MK80067 OK
3 KHN-M7133-00X BELT 4
4 KHN-M7134-00X PLATE,MOTOR R 1
5 KHN-M7135-00X FLANGE,MOTOR 2
6 KHN-M7136-00X BLOCK,ADJUST 4
7 KHN-M7137-00X PLATE TENSION 2
8 KHN-M7138-00X BRACKET,STOPPER 2
9 KHN-M7139-00X STOPPER R 2
10 KGV-M7157-00X BLOCK2,STOPPER R 2
11 KHN-M713B-00X COLLAR TENSION 2
12 KGV-M7154-00X PIN 2
12-1 90990-19J016 NEEDLE,PIN 2 (2007/11/30) MD00140 OK
13 KV8-M7115-00X SHAFT 1,TENSION 8
14 90933-03J128 BEARING 16
15 90K21-036011 AC SERVO MOTOR R1 1
16 90K21-035512 AC SERVO MOTOR R2 1
17 99480-03010 PIN,PARALLEL 2
18 92A08-04305 SET SCREW M4X5 4
19 95307-03700 NUT HEXAGON 4
20 92907-04200 WASHER PLAIN 12
21 91317-03008 BOLT HEX.SOCKET HEAD 12 M3X8
22 91317-03010 BOLT HEX.SOCKET HEAD 14 M3X10
23 91317-03012 BOLT HEX.SOCKET HEAD 8 M3X12
24 91317-04010 BOLT HEX.SOCKET HEAD 4 M4X10
25 91317-04014 BOLT HEX.SOCKET HEAD 2 M4X14
26 91317-04016 BOLT HEX.SOCKET HEAD 2 M4X16
27 91317-04022 BOLT HEX.SOCKET HEAD 6 M4X22
1
6
Nozzle Selection
Nozzle
KHN-1201
NOZZLE 302A ASSY.
7
4>19
6
8
5
NOZZLE 301A ASSY.
1
4>18
6
2
5
NOZZLE 303A/314A ASSY.
10
4
6
11
5
NOZZLE 306A/317A ASSY.
13
4
6
14
5
NOZZLE 309A ASSY.
16
4
6
17
5
10 13
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M7710-A0X NOZZLE 301A ASSY. 1
1-1 KHN-M7710-A1X NOZZLE 301A ASSY. 1 (2007/10/10) MD90040 OK
1-2 KHN-M7710-A2X NOZZLE 301A ASSY. 1 (2009/10/1) MF90155 OK
1-3 KHN-M7710-A3X NOZZLE 301A ASSY. 1 (2010/7/8) MG60126 OK
1-4 KHN-M7710-A4X NOZZLE 301A ASSY. 1 TYPE 301A (2011/11/25) MHX0059 OK
2 KHN-M7711-01X BODY,NOZZLE 301 1
2-1 KHN-M7711-02X BODY,NOZZLE 301 1 (2009/1/6) MEY0134 OK
2-2 KHN-M7711-03X BODY,NOZZLE 301 1 (2009/10/1) MF90155 OK
2-3 KHN-M7711-04X BODY,NOZZLE 301 1 (2010/7/8) MG60126 OK
2-4 KHN-M7711-05X BODY,NOZZLE 301 1 (2011/11/25) MHX0059 OK
4 KHN-M7713-00X SPRING 1 Black
5 KHN-M7714-00X PIN 1
6 KHN-M7715-00X CLIP 1
7 KHN-M7720-A0X NOZZLE 302A ASSY. 1
7-1 KHN-M7720-A1X NOZZLE 302A ASSY. 1 (2007/10/10) MD90040 OK
7-2 KHN-M7720-A2X NOZZLE 302A ASSY. 1 (2010/7/8) MG60126 OK
7-3 KHN-M7720-A3X NOZZLE 302A ASSY. 1 TYPE 302A (2011/11/25) MHX0059 OK
8 KHN-M7721-01X BODY,NOZZLE 2 1
8-1 KHN-M7721-02X BODY,NOZZLE 302 1 (2009/1/6) MEY0134 OK
8-2 KHN-M7721-03X BODY, NOZZLE 302 1 (2010/7/8) MG60126 OK
8-3 KHN-M7721-04X BODY, NOZZLE 302 1 (2011/11/25) MHX0059 OK
10 KHN-M7730-00X NOZZLE 303A 1
10-1 KHY-M7740-A0X NOZZLE 303A/314A ASSY. 1 (2008/7/8) ME60268 OK
11 KHY-M7741-00X BODY,NOZZLE 303/314 1
12
13 KHN-M7760-00X NOZZLE 306A 1
13-1 KHY-M7770-A0X NOZZLE 306A/317A ASSY. 1 (2008/7/8) ME60268 OK
14 KHY-M7771-00X BODY,NOZZLE 306/317 1
15
16 KHN-M7790-A0X NOZZLE 309A ASSY. 1
16-1 KHN-M7790-A1X NOZZLE 309A ASSY. 1 (2007/10/10) MD90040 OK
17 KHN-M7791-01X BODY,NOZZLE 9 1
18 KHN-M7713-10 SPRING 1 White (2011/3/9) MH30013 OK
19 KHN-M7713-10 SPRING 1 White (2011/9//7) MH90007 OK
