KHN_YG300_PL - 第29页
48 19 33 25 32 16 4 4 2 37 41 25 43 34 35 43 43 7 7 30 25 43 30 34 35 3 42 14 15 27 24 26 1 16 13 32 45 5 40 43 41 27 2 37 20 22 22 22 22 20 20 20 23 23 23 23 1 1 22 22 8 12 44 31 31 31 31 3 42 14 15 26 24 9 43 40 13 5 4…
8
4
38
2
3
5
10
1
31
36
14
12
26
29
29
21
25
29
29
21
24
21
26
26
34
25
27
21
26
29
21
24
16
15
30
13
35
23
28
25
24
22
40
*Part sale from1 to 28 is impossible
34
17
11
19
37
39
34
18
34
20
33
32
31
6
9
7
9
1
7
Multi Camera & Light
Camera
KHN-080829
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M73A0-00X MULTI CAM. SUB ASSY 1
2 KGR-M7301-10X STAND,CAMERA 1
3 KHN-M7302-00X SPACER 1
4 KHN-M7303-00X HOLDER,CAMERA 1 1
5 91317-04020 BOLT HEX.SOCKET HEAD 4 M4X20
6 91317-06020 BOLT HEX.SOCKET HEAD 2 M6X20
7 91317-06040 BOLT HEX.SOCKET HEAD 2 M6X40
8 91317-05045 BOLT HEX.SOCKET HEAD 2 M5X45
9 92907-06200 WASHER PLAIN 4
10 99480-04008 PIN,PARALLEL:4X8 2
11 KHN-M7510-00X HALF MIRROR 1
12 KHN-M7512-00X COVER,GLASS 1
13 KHN-M7513-00X DIFFUSER,COAX 1
14 KHN-M7516-00X COVER,LIGHT UNIT 1
15 KHN-M7517-00X FRAME,BASE 1
16 KHN-M7518-00X FRAME,MAIN LIGHT 1
17 KHN-M7519-00X PLATE,HALF MIRROR 1
18 KGR-M7520-00X GROMMET 1
18-1 90990-23J010 GROMMET 1 (2007/12/4) MDX0031 OK
19 KHN-M7534-00X ADHESIVE TAPE 2
20 KHN-M7539-00X STAND,LIGHT 1
21 KGR-M7540-00X ISOLATE WASHER 12
21-1 90990-28J043 WASHER,PLAIN 12 (2007/12/4) MDX0031 OK
22 KHN-M7542-00X AR SHEET 1
23 KHL-M66N2-00X HNS,M.LIGHT COAX. 1
24 KHL-M66N6-00X HNS,M.LIGHT MAIN 1
25 KHL-M66N9-00X HNS,M.LIGHT SUB CX. 1
26 KHL-M7554-00X M.LIGHT MAIN ASSY 4
27 KHL-M7556-00X M.LIGHT SUB CX. ASSY 2
28 KHL-M7558-01X M.LIGHT COAX. ASSY 1
29 90166-02JA04 SCREW PAN HEAD 12
30 90563-03J050 SPACER BOLT 4
31 92907-04200 WASHER PLAIN 8
32 91317-04008 BOLT HEX.SOCKET HEAD 4 M4X8
33 91317-04006 BOLT HEX.SOCKET HEAD 4 M4X6
34 98507-04006 SCREW PAN HEAD 12
35 98507-03004 SCREW PAN HEAD 4
36 90K41-000240 SEAL,DON'T TOUCH 1
37 KHN-M6417-00X LABEL LIGHT 1
38 KHN-M7300-00X MULTI CAMERA ASSY 1
39 KHN-M7500-00X MULTI LIGHT ASSY 1
40 KHN-M73C0-00X C+L W25-H263-FF-NON 4 38+39
48
19
33
25
32
16
4
4
2
37
41
25
43
34
35
43
43
7
7
30
25
43
30
34
35
3
42
14
15
27
24
26
1
16
13
32
45
5
40
43
41
27
2
37
20
22
22
22
22
20
20
20
23
23
23
23
11
22
22
8
12
44
31
31
31
31
3
42
14
15
26
24
9
43
40
13
5
47
6
6
46
47
42
42
21
21
11
17
17
10
39
39
46
36
38
18
26
27
26
29
36
27
28
27
1
8

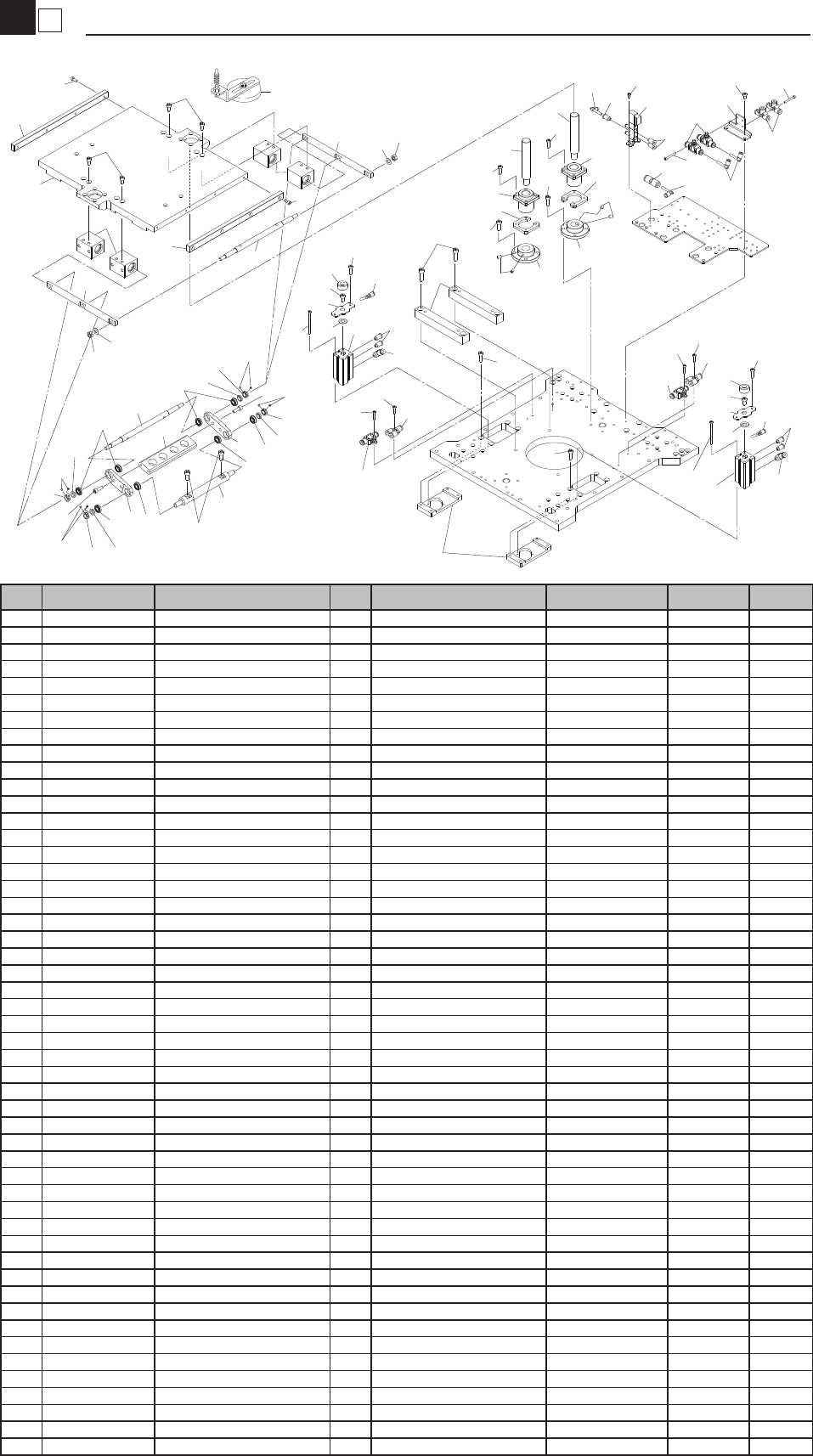

Push Up
Conveyor Unit
KHN-080829
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M9201-00X BRKT. CYL. 2
2 KHN-M9202-00X CYLINDER 2
3 KHN-M9203-00X CONNECTOR,CYL. 2
4 KHN-M9204-00X HOLDER,SHAFT 2
5 KHN-M9205-00X SHAFT 2
6 KHN-M9206-00X ROD 2
7 KHN-M9207-00X LINK 4
8 KHN-M9208-00X BAR,JOINT 2
9 KHN-M9209-00X SPACER BASE 2
10 KHN-M920A-00X
PLATE,PU 1
11 KHN-M9210-00X SHAFT,LINK 3
12 KHN-M9211-00X SHAFT,PIVOT 2
13 KHN-M9212-00X BUSH 2
14 KHN-M9213-00X PLATE,CONNECTOR 2
15
KHN-M9214-00X WASHER 2
16 KHN-M9215-00X PLATE,NUT 2
17 KHN-M9216-00X BAR,PU 2
18 KHN-M9217-00X STAY,JOINT 1
19 KHN-M9218-00X VALVE 1
20 KC5-M223E-00X COLLAR 2 8
21 KGT-M920A-00X LINEAR BUSH 4
22 KGT-M920W-00X BEARING 16
22-1 90933-03J148 BEARING 16 (2007/9/24) MD80067 OK
23 KV8-M7108-00X NUT 8
24 $SL4-M5 JOINT 2
25 $SSU4 SPEED CONTROLLER 4
26 $TSH4-M5M JOINT 7
27 $ULA4M JOINT 6
27-1 $ULA4M JOINT 8 (2007/10/31) MD00134 OK
28 $USD6-4 JOINT 1
29 $UT4 JOINT 2
30 $UY4 JOINT 2
31 90152-03J030 SCREW CROS.COUN:OVAL 16
32 90152-05J080 SCREW CROS.COUN:OVAL 4
33 91312-03006 BOLT,HEX.SOCKET HEAD 2 M3X6
34 91312-03014 BOLT,HEX.SOCKET HEAD 2 M3X14
35 91312-03016 BOLT,HEX.SOCKET HEAD 4 M3X16
36 91312-03025 BOLT,HEX.SOCKET HEAD 4 M3X25
37 91312-03050 BOLT,HEX.SOCKET HEAD 4 M3X50
38 91312-04008 BOLT,HEX.SOCKET HEAD 2 M4X8
39 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
40 91312-04014 BOLT HEX.SOCKET HEAD 8 M4X14
41 91312-04016 BOLT HEX.SOCKET HEAD 4 M4X16
42 91312-05010 BOLT HEX.SOCKET HEAD 10 M5X10
43 91312-05016 BOLT HEX.SOCKET HEAD 24 M5X16
44 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
45 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
46 92902-06200 WASHER PLAIN 6
47 95302-06600 NUT HEXAGON 6
48 KV1-M921D-20X PUSH UP PIN UNIT 6
2
8
Clamp Assy
Conveyor Unit
KHN-080829
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M9116-00X FRAME,CLAMP 2
2 KHN-M9115-A0X LINEAR GUIDE 2
3 KHN-M915T-00X HOLDER,PIN 4
4 KHN-M9117-00X BAR,CLAMP 2
5 KHN-M9120-00X GUIDE 1,END 2
6 KHN-M9120-10X GUIDE 2,END 2
7 KHN-M9118-10X GUIDE 1 5
8 KHN-M9118-20X GUIDE 2 3
9 KHN-M9118-30X GUIDE 3 1
10 KHN-M9118-40X GUIDE 4 1
11 KGT-M916W-01X PIN 38
11-1 90990-43J014 PIN 38 (2008/6/3) ME30136 OK
12 KHM-M917C-10X LOW HEAD CAP SCREW 12
12-1 90990-01J020 BOLT,HEX.SOCKET HEAD 12 (2007/10/29) MD00030 OK
13 KHN-M9123-00X BLOCK,STOPPER 4
14 KHN-M9133-00X BOLT,STOPPER 4
15 KGT-M9171-00X SCREW, STOPPER 4
16
17
18 KV5-M7848-00X TUBE 6000 MM
19 92A08-03303 SET,SCREW 5 M3X3
20 91312-04014 BOLT HEX.SOCKET HEAD 16 M4X14
21 91312-04012 BOLT HEX.SOCKET HEAD 18 M4X12
22 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
23 91317-03008 BOLT HEX.SOCKET HEAD 8 M3X8
23-1 91312-03008 BOLT HEX.SOCKET HEAD 10 M3X6 (2007/9/17) MD70177 OK
24 91317-03006 BOLT HEX.SOCKET HEAD 42 M3X8
24-1 91312-03006 BOLT HEX.SOCKET HEAD 32 M3X6 (2007/9/17) MD70177 OK
25 KHN-M652E-10X SENSOR,TWIN ASSY 1 UNIT A,D ENT/EXIT (2007/12/6) MD00003
26 KHN-M652E-20X SENSOR,TWIN ASSY 1 UNIT B,C ENT/EXIT (2007/12/6) MD00003
27 KHN-M652D-20X SENSOR,MASTER ASSY 1 UNIT A,D RCV (2007/12/6) MD00003
28 KHN-M652D-30X SENSOR,MASTER ASSY 1 UNIT B,C RCV (2007/12/6) MD00003
29 KHN-M1934-00X SPRING.CLAMP ASSY 4
2
13
13
21
21
24
24
18
25
5
3
19
4
4
22
21
21
24
13
21
23
8
7
3
1
20
14
2
24
24
14
20
3
2
1
12
12
23
11
25
18
15
23
6
9
22
12
27
18
7
10
15
15
14
3
15
20
20
5
11
8
23
12
11
7
22
25
19
19
18
27
18
14
11
11
11
21
13
2
24
12
12
11
7
8
6
11
23
7
22
18
25
19
19
29
29
29
29
23
27
26
26
26
27
26
R>L B,D Table
L>R A,C Table
R>L A,C Table
L>R B,D Table
