ALD7700S SERIES Inline AOI based on i3D technology Beyond Innovation LEADING THE WAY FOR INSPECTION SOLUTIONS The ALD7700S series includes the high speed inline AOI system utilizing state-of-art i3D technology powered by…

100%1 / 2
ALD7700S SERIES
Inline AOI based on i3D technology
Beyond Innovation
LEADING THE WAY FOR INSPECTION SOLUTIONS

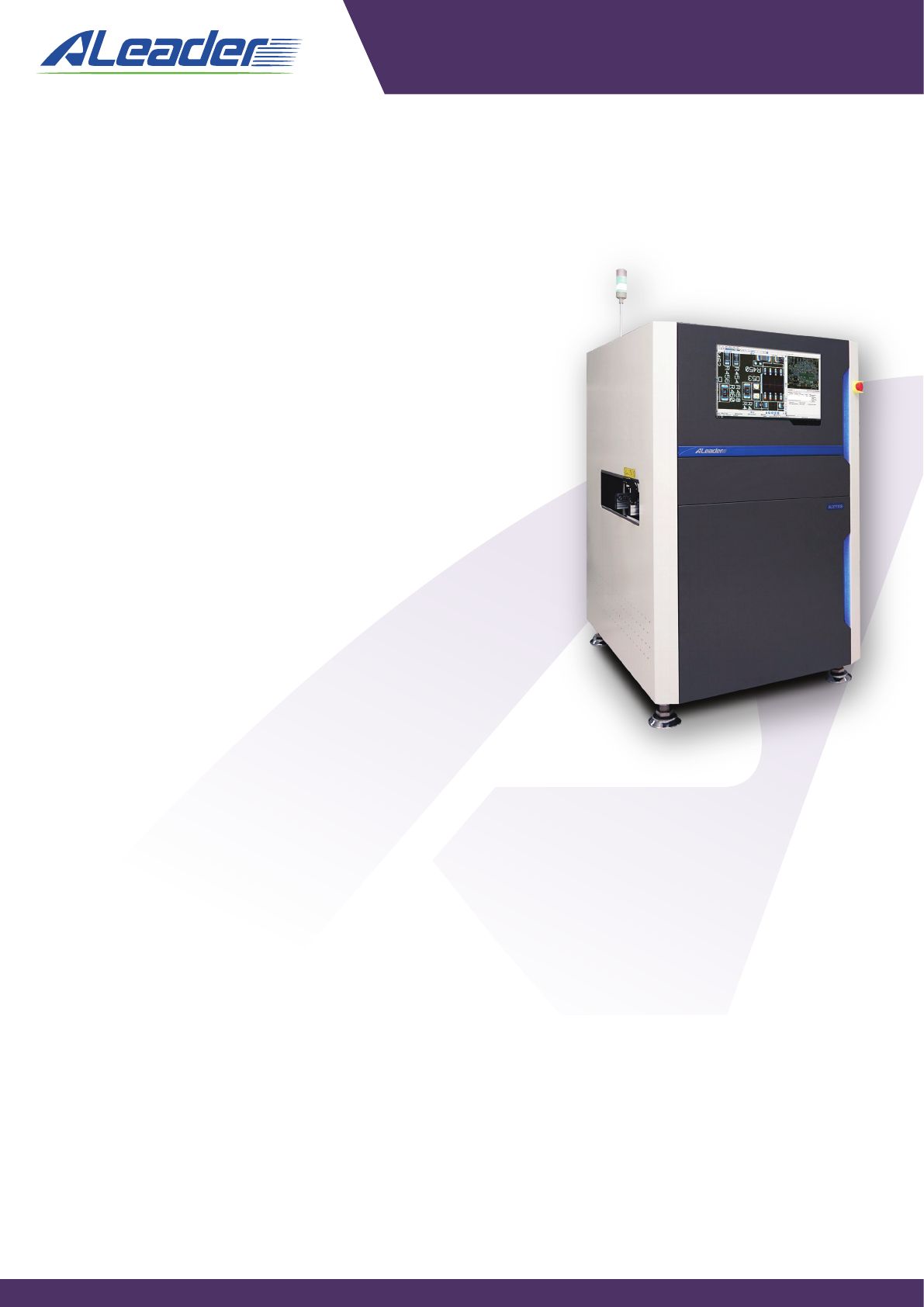

The ALD7700S series includes the high speed inline AOI system utilizing state-of-art i3D
technology powered by a high-speed telecentric camera and a newly designed G5
multidirectional LED lighting module. While further enhancing all the features of the previous
models and preserving their advantages, ALD7700S system introduces a number of new
features and improvements, which take the level of performance and ease-of-use to new
heights. These new features includes a new and powerful debug-free OCR function, which is
capable of reading the full range of component marks on a variety of materials without
requiring additional study or adjustment.
The system is designed to inspect the most complicated and challenging PCB assemblies
with no escapes, and at a very low false alarm rate. High-level technical skills are not
required for the development of a top-quality program; easy, transparent and straight-
forward programming allows achieving the best performance within a short time.
Similarly to all ALD models, the ALD7700S boasts a vast range of capabilities, and is
designed to overcome all PCB inspection challenges, including shadows, various component
colors, transparency, board warpage and many more. The system also provides support
for offline programming and debugging. Integrated barcode reading, various traceability
options, software process controls and additional features are also available. The repair
station delivers a clear image of the defect as well as an image of a good sample, to allow
quick verification and to prevent operator errors.
i3D technology
High-speed camera with telecentric lens
Extremely low FA rate, high FPY, and no escapes
100% inspection coverage
Ideal for inspecting 0201 and 01005
components, 0.3 mm pitch
Debug-free OCR algorithms
Fast and accurate inspection
Shadow-free, warpage-free solution,
insensitive to board color
Fast programming, intuitive user interface
Effective quality verification
Process control for defect prevention
High MTBF, low maintenance cost
►
►
►
►
►
►
►
►
►
►
►
►
08.2021
ALeader Europe Ltd.
International Marketing-Training Center-Support Center
Industrial Zone Netser Sereni, 7039500 Israel | Tel: +972-89208844 Fax: +972-89207711 | www.aleader-europe.com
Beyond Innovation
down, tombstone, damaged, wrong component, lifted leads, open,
Special features
Supports auto-change program, mul-boards (include bad mark)
and mul-program inspecon modes
Barcode system
Auto read barcode with camera - 1D and 2D; External reader reads
back side barcode(opon)
Server mode Central server mulple machines data handling
Remote control
Remote control through TCP/IP for verificaon, system operaon
and program adjustment
Addional Opons
Conveyor
Automac clamp, auto load and unload, automatic width
adjustment
Conveyor direcon/me Left to Right or Right to Le in/out me 4 sec
X/Y driver
Display 23.6 inch TFT LCD
Power Supply AC230V 50/60Hz <1.5KVA
Compressed air 0.4-0.8 MPA
Equipment communicaon SMEMA
Operaonal condions
10~35˚
C, 35∼80％ RH (no dew）
Weight
Dimensions
1000x1340x1610mm (ALD7710S), 1000x1540x1610mm (ALD7710D),
1200x1540x1610mm (ALD7730S, ALD7730D), 2100x1210x1550 mm (ALD7750S)
Conveyor height 880-950 mm
Inspecon method
i3D technology
Camera
Lighng system
Program creaon
CAD file import, central library, part number links, auto
programming
Applicaons
Post reflow, pre-
reflow (including 2D paste inspecon), wave
soldering
Operang system Windows 10 professional, 64 bit
PCB type All colors and all pad finishes
PCB size range
PCB warpage <5mm, warpage-free technology
PCB thickness range
Clamping system edge
clearance
Top 2.5mm, Boom 3mm
PCB weight Up to 3kg
Underside/Topside clearance
60/40mm (ALD7710S, ALD7730S), 65/40mm (ALD7750S), 40/40mm (ALD7710D, ALD7730D)
Min component size 01005, 0.3 mm pitch
Resoluon/range/speed
15µ, FOV: 61.44 x 45mm (7µ, FOV 28.62 x 21mm - opon), Test speed 230 ms/FOV
Inspecon coverage
100% inspecon coverage, all components are inspected for all
types of the defects: missing, misalignment, billboard, up -side-
insufficient/excessive solder, shorts, wrong component, polarity,
solder balls, etc...
Shadow effect
Component color
Component color and transparency do not affect system
performance, but can be used for wrong component inspecon
OCV/OCR Standard on each machine
Double side check Idenfies and automacally changes side
Dimensions and Weight
Functional Specifications
Inspection Board Specications
Inspection Performance
Features and Options
Hardware
12M pixel high-speed camera telecentric lens
Mul-direconal LED lighng module
Applicaons - Site Dashboard, First Arcle Inspection, Package Link
SPC, repair staon, Offline program, External barcode scanner
Pin Support
Screw and AC servo driver, Accuracy <10µ; Approved by CTQ PCB
fix, camera moves X/Y
780 kg
0.3mm to 5mm
Shadow-free technology
Min 50 x 50mm, Max 450 x 500mm (ALD7710S) 650 x 710mm (ALD7730S)
1500 x 450 mm(ALD7750S) 450 x 330/610mm(ALD7710D) 650 x 330/610mm(ALD7730D)

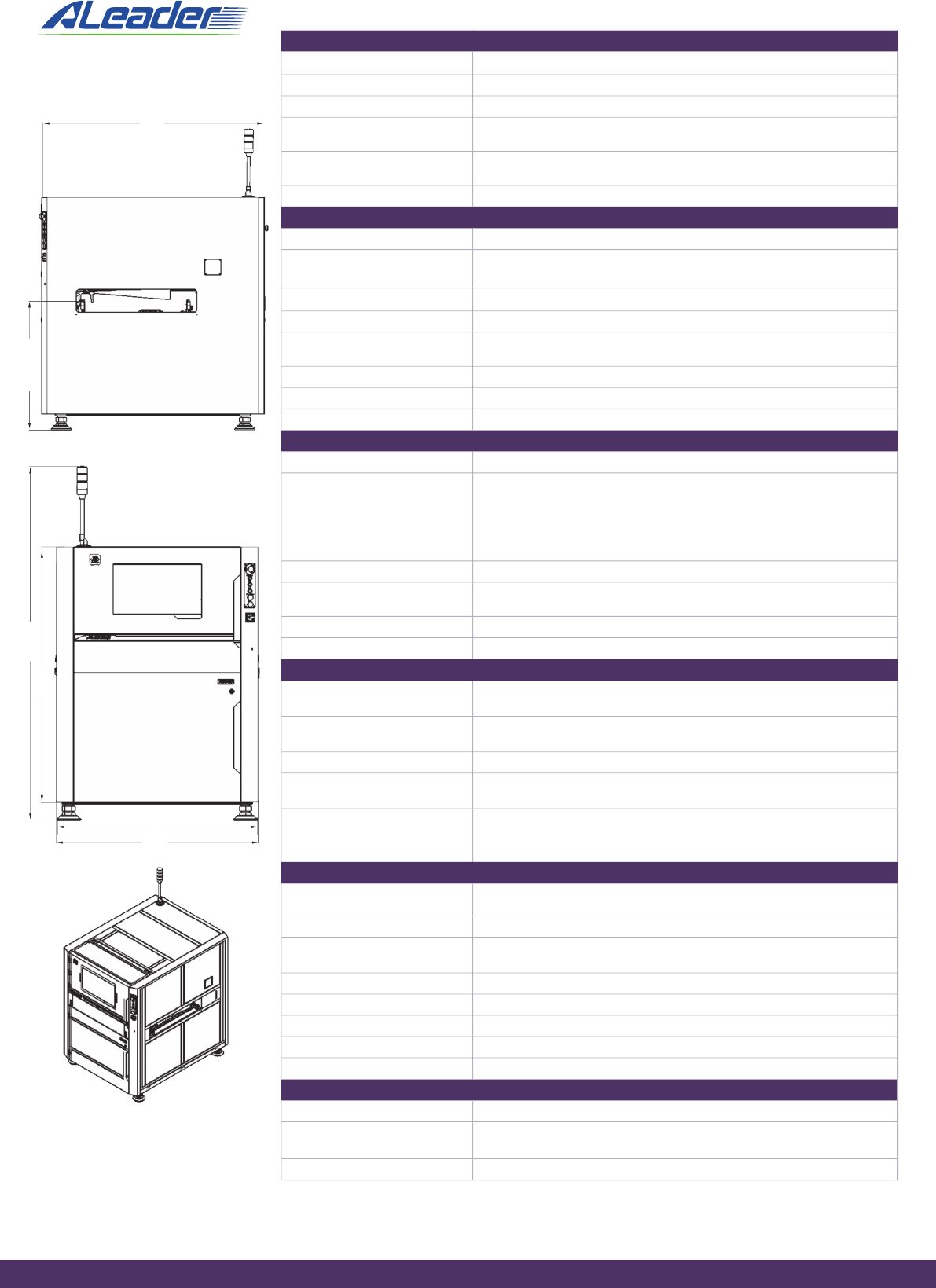

System footprint dimensions are shown for
model ALD7730S. For other models please
refer to the specificaon table
1180
1200
1610
2085
1540
880~950mm
Above specificaons are subject to change without noce. Images used in the brochure are for illustrave purposes only
