X-Series COT Insert 3.7.6 Replacing the Empty-Tape Duct Assembly [03021207-xx]
200 Service Manual SIPLACE X Series
3.7.6
3.7.6 Replacing the Empty-Tape Duct Assembly [03021207-xx]
Replacing the Empty-Tape Duct Assembly [03021207-xx]
Removal/installation
3.7.7
3.7.7 Replacing the Control Valve [03003489-xx]
Replacing the Control Valve [03003489-xx]
Removal/installation
See also
3.7.1 Replacing the X-Series COT Insert [03015680-xx] [ ➙ 195]

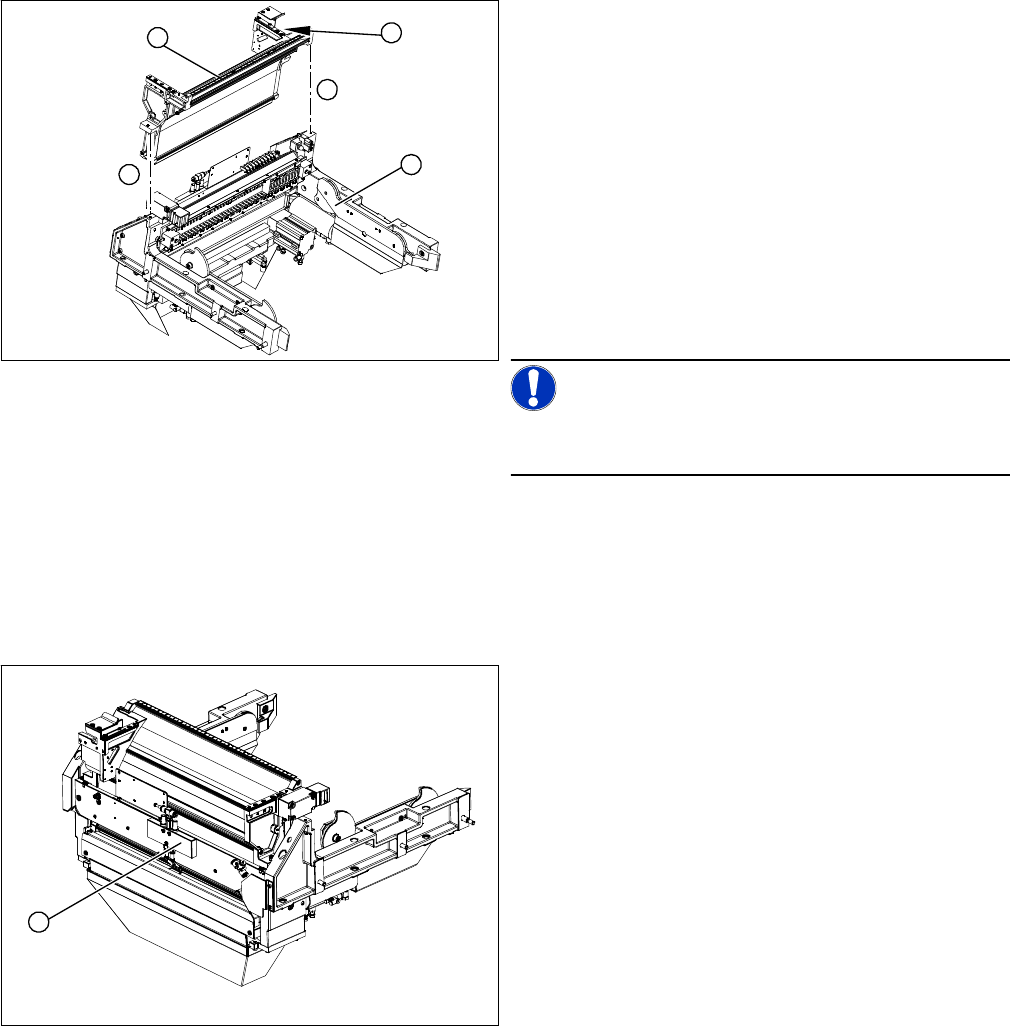

1. COT insert assembly
2. Empty-tape duct assembly
3. Position of the sensors
► Mark the position of the sensors (3) (reed contacts)
and remove these from the reject container.
► Loosen the two screws (4) holding the empty-tape
duct assembly (2).
► Carefully lift the empty-tape duct (2) out of the COT
insert (1).
► Fit the sensors (reed contacts) for the reject contain-
er.
NOTICE!
These sensors are installed in different positions, accord-
ing to the configuration of the machine.
► Fit the empty-tape duct.
4
1
4
3
2
► Remove the complete COT insert from the machine
and place it on a suitable surface.
► Unplug the electricity and compressed air cables
from the control valve (1).
► Loosen the fastening screws and remove the control
valve (1).
► Install the new control valve (1).
► Reconnect to the electrical and compressed air sys-
tems.
► Fit the complete COT insert in the machine.
1
Service Work
3.7.8 Replacing the Baffles [03002191-xx] X-Series COT Insert
Service Manual SIPLACE X Series 201
3.7.8
3.7.8 Replacing the Baffles [03002191-xx]
Replacing the Baffles [03002191-xx]
Overview
Removal/installation
► Replace the individual baffles as described below:
► Loosen the four screws (5) fastening the "baffle, outside" on both side panels.
► Loosen the four screws(6) fastening the "baffle, inside" on both side panels.
► Loosen the two screws (7) fastening the baffle insert.

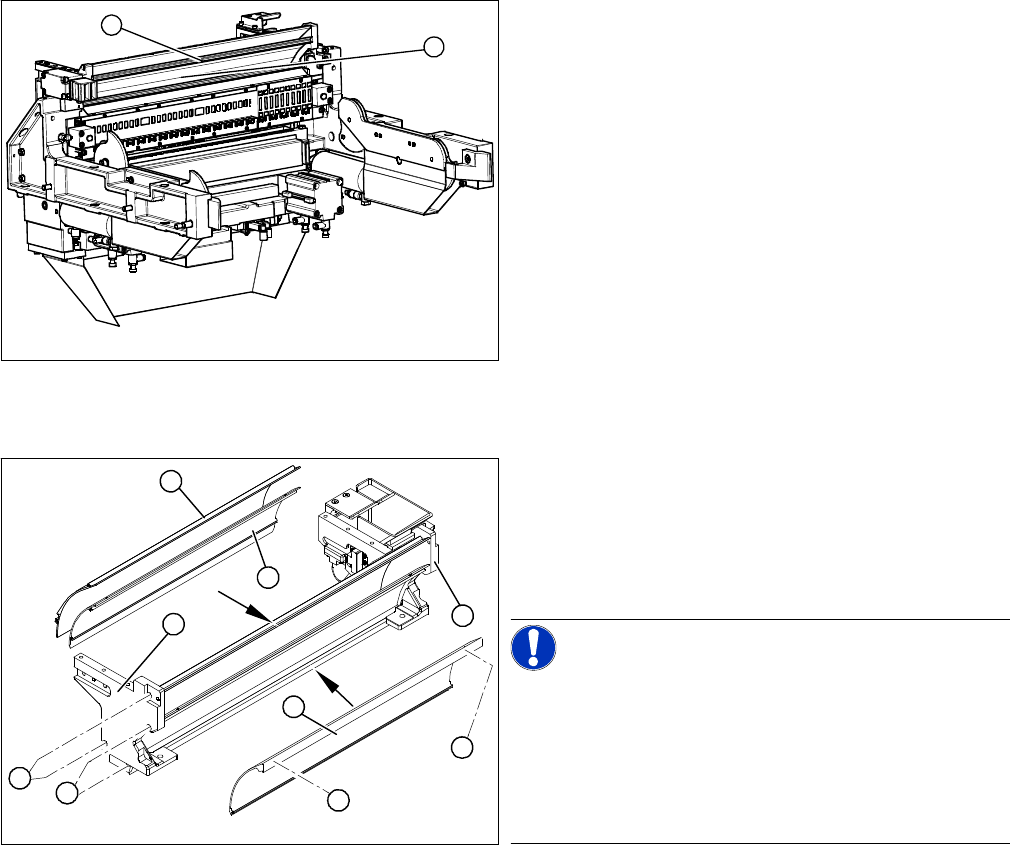

1. Empty-tape duct assembly
2. Baffles
1
2
1. Baffle outside
2. Baffle, inside
3. Baffle insert
4. Side panels
NOTICE!
Inner baffle
When using tape reels with deep pockets, you may need
to remove the inner (center) baffle (2). Refer to the oper-
ating instructions for the relevant SIPLACE machine.
All screws are accessible in the installed state. The baf-
fles can therefore be replaced inside the machine.
1
4
3
2
7
6
5
4
7
Service Work
COT Insert HF R2 3.8.1 Replacing the COT Insert Assembly [03000811-xx]
202 Service Manual SIPLACE X Series
3.8
3.8 COT Insert HF R2
COT Insert HF R2
3.8.1
3.8.1 Replacing the COT Insert Assembly [03000811-xx]
Replacing the COT Insert Assembly [03000811-xx]
Remove the safety cover.
Removing the COT insert
► Open the cable duct in which all connections cables and compressed air hoses have been run.
► Carefully pull these cables and hoses out through the opening in the machine base, until you can
access all the press-fit connections.
► Mark the allocation of all press-fit connections so that you can restore the connections later, with the
new cables.
► The following table shows the plugs and cables for each location:
► Remove the cover for the press-fit connections (3).
► Remove the screws (1) / (2) on the safety cover.
► Unplug the press-fit connections (1) and disconnect
the ground cable. Please see the table below for plug
and cable allocation details.
► Pull out the safety cover (2).
► Disconnect the compressed air hose for the COT in-
sert.
► Seal the hose with a plug.
1
3
2
1
2
Connector Cable
X2*h [03006857]-W2
X120 [03005794]
X1*h [03006857]-W3
X118 [03003973]
X119 [03003974]
