Service Work 3.8.7 Replacing the Baffles [03002191-xx] COT Insert HF R2 Service Manual SIPLACE X Series 209 3.8.7 3 . 8 . 7 R e p la c in g t h e B a f f le s [ 0 3 0 0 2 1 9 1 - x x ] Replacing the Baff les [03002191-xx…
Service Work
COT Insert HF R2 3.8.6 Replacing the Empty-Tape Duct Assembly [03003725-xx]
208 Service Manual SIPLACE X Series
3.8.6
3.8.6 Replacing the Empty-Tape Duct Assembly [03003725-xx]
Replacing the Empty-Tape Duct Assembly [03003725-xx]
Removal/installation

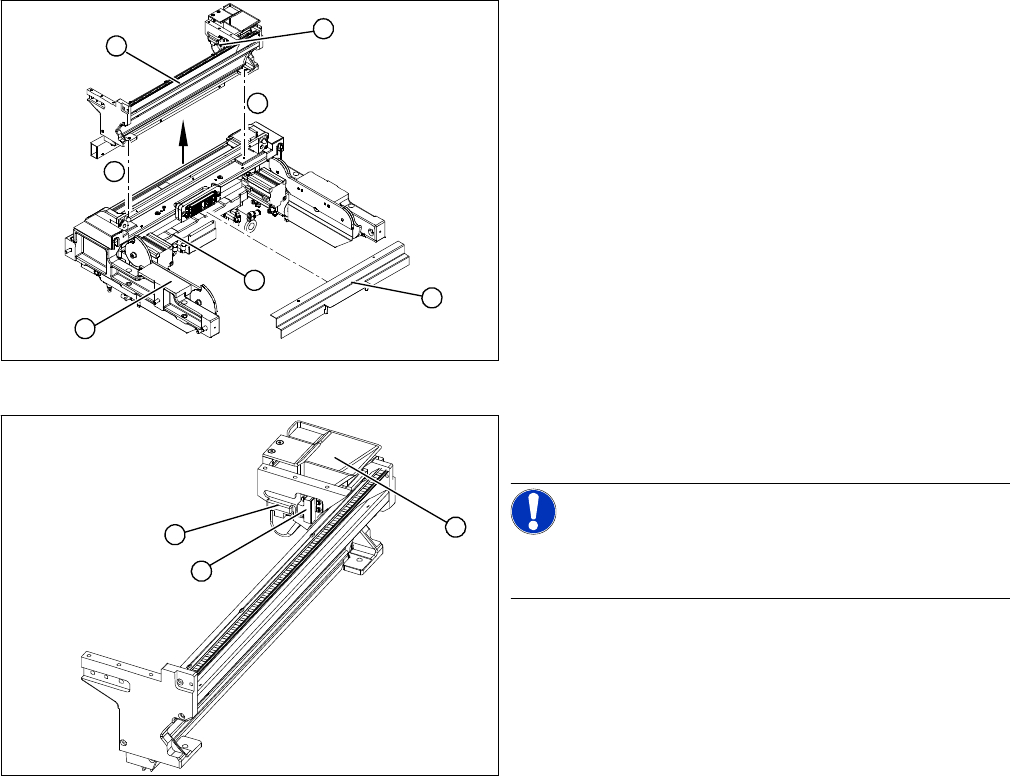

1. COT insert assembly
2. Cutter, complete
3. Empty-tape duct assembly
► Remove the complete COT insert from the machine.
► Loosen the screws fastening the centering bar (4).
► Remove the centering bar (4).
► Mark the position of the sensors (6) (reed contacts)
and remove these from the reject container.
► Loosen the screws (5) holding the empty-tape duct
assembly (3).
► Carefully lift the empty-tape duct (3) out of the COT
insert (1).
► Fit the sensors (1) (reed contacts) for the reject con-
tainer (2).
NOTICE!
These sensors are installed in different positions, accord-
ing to the configuration of the machine.
► Fit the empty-tape duct and the centering bar.
1
3
6
5
4
5
2
1
1
2
Service Work
3.8.7 Replacing the Baffles [03002191-xx] COT Insert HF R2
Service Manual SIPLACE X Series 209
3.8.7
3.8.7 Replacing the Baffles [03002191-xx]
Replacing the Baffles [03002191-xx]
Overview
Removal/installation

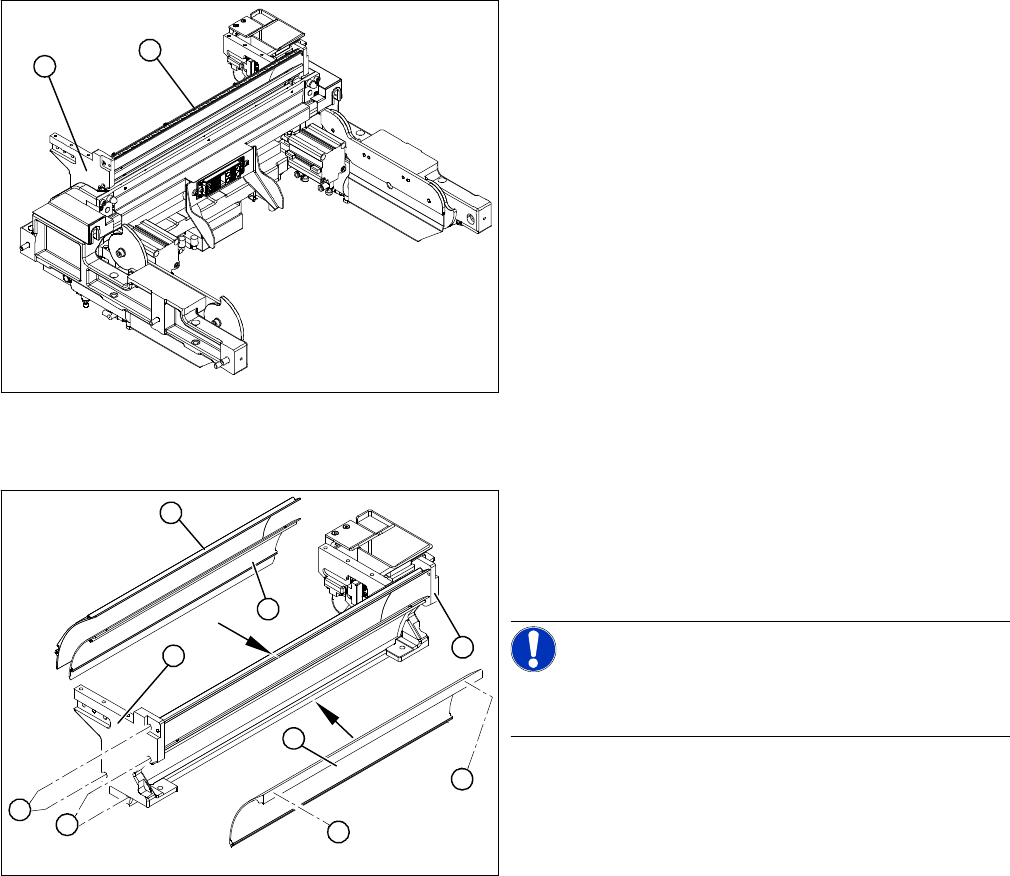

1. Empty-tape duct assembly
2. Baffles
1
2
1. Baffle, outside
2. Baffle, inside
3. Baffle insert
4. Side panels
NOTICE!
All screws are accessible in the installed state. The baf-
fles can therefore be replaced inside the machine.
► Replace the individual baffles as described below:
► Loosen the four screws (5) fastening the "baffle, out-
side" on both side panels.
► Loosen the four screws (6) fastening the "baffle, in-
side" on both side panels.
► Loosen the two screws (7) fastening the baffle insert.
1
4
3
2
7
6
5
4
7
Service Work
Cutter 3.8.7 Replacing the Baffles [03002191-xx]
210 Service Manual SIPLACE X Series
3.9
3.9 Cutter
Cutter
The removal procedure for the cutter may differ, depending on the COT insert used.
Observe the specifications for the relevant COT insert.
Cutter on HF R2 COT insert
Cutter on X-Series COT insert
See also
3.9.1 Replacing the Cutter [03052900-xx] on the R2 COT Insert [ ➙ 211]
3.9.2 Replacing the Cutter [03052900-xx] on the X-Series COT Insert [ ➙ 213]

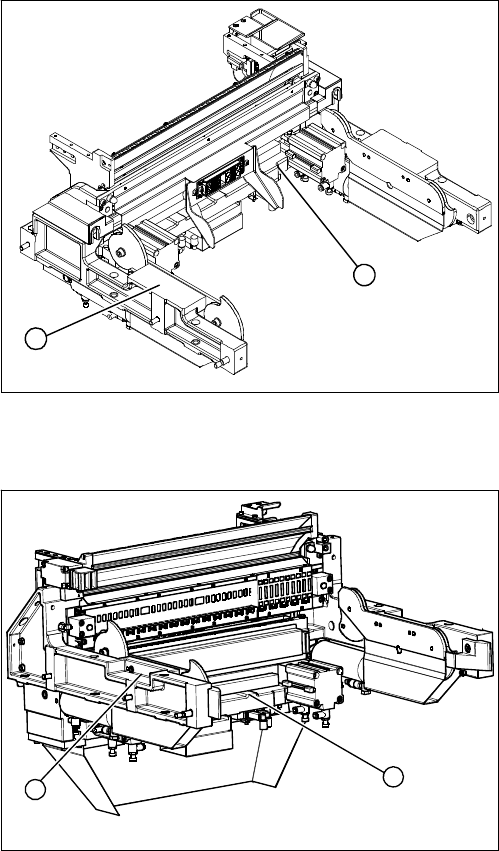

1. COT Insert HF R2
2. Cutter
1
2
1. X-Series COT Insert
2. Cutter
1
2
