Overview of the Modules Service Manual SIPLACE X Series 23 2 2 O v e r v ie w o f t h e M o d u le s Overview of the Modules SIPLACE X3 - top view 1 Sector 1 8 Computer unit 2 Sector 2 (main distributor) 9 Lo cation for …
Introduction
Abbreviations 1.3.7 SIPLACE on the World Wide Web (WWW)
22 Service Manual SIPLACE X Series
Overview of the Modules
Service Manual SIPLACE X Series 23
2
2 Overview of the Modules
Overview of the Modules

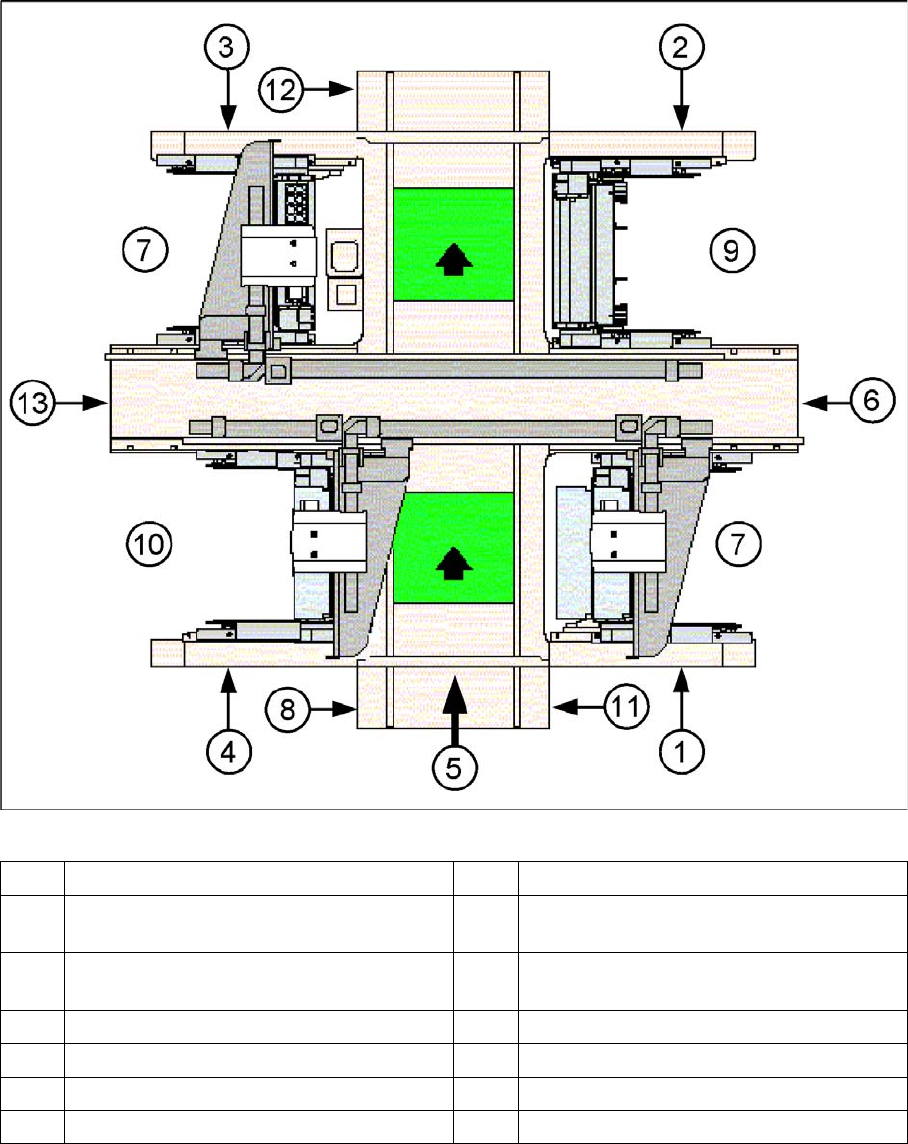

SIPLACE X3 - top view
1 Sector 1 8 Computer unit
2 Sector 2 (main distributor) 9 Location for changeover table or MTC2 for
PA 2
3 Sector 3 10 Location for changeover table or MTC2, by
X2 only
4 Sector 4 (subdistributor) 11 Axis unit placement area 1 (PA1)
5 Transport direction 12 Axis unit placement area 2 (PA2)
6 Pneumatic unit and conveyor control 13 Power supply unit
7 Location for changeover table
Overview of the Modules
Serial Number of Module
24 Service Manual SIPLACE X Series
2.1
2.1 Serial Number of Module
Serial Number of Module
2.2
2.2 Electrical System
Electrical System
Overview
See also
3.1 Electrics and Control [ ➙ 49]

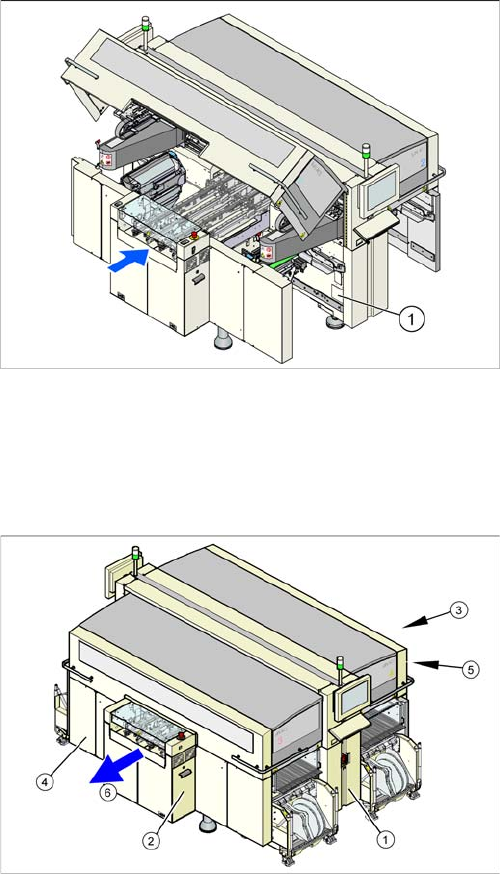

The serial number of your placement machine can be
found on the typeplate. This is located on the inside of lo-
cation 1, at the side (1).
Overview (example of X2 shown)
1. Power supply
2. Axis unit
3. Computer unit
4. Main distributor (sector 2)
5. Subdistributor (sector 4)
6. Transport direction
