Measuring Equipment and Tools 4.1.1 Scope of Delivery Calibration Tool [03010565-xx] Service Manual SIPLACE X Series 251 4.9 4 . 9 C a lib r a t io n T o o l [ 0 3 0 1 0 5 6 5 - x x ] Calibration Tool [03010565-xx] 4.10 …
Measuring Equipment and Tools
Compressed Air Testing Device [00311487-01] 4.1.1 Scope of Delivery
250 Service Manual SIPLACE X Series
4.7

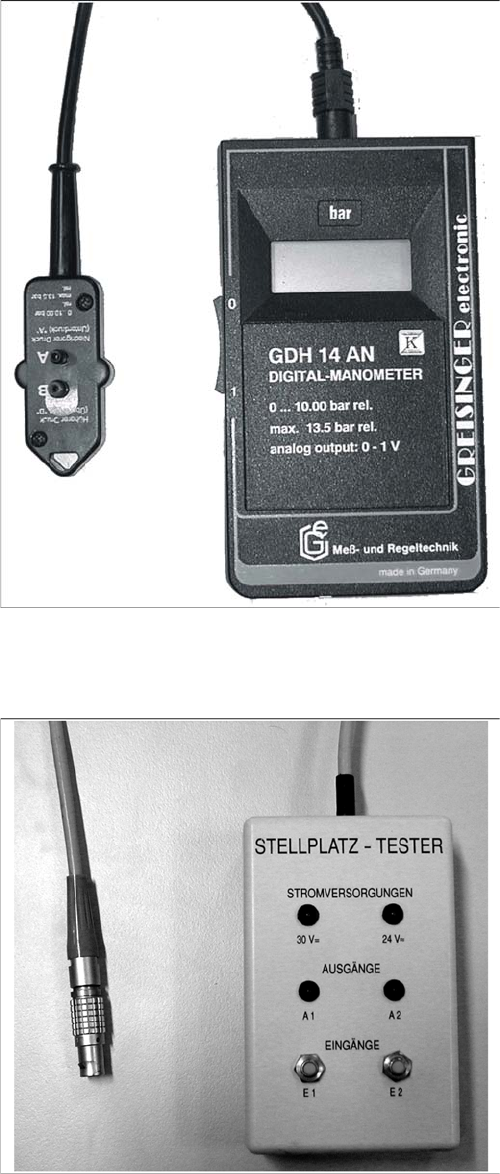

4.7 Compressed Air Testing Device [00311487-01]
Compressed Air Testing Device [00311487-01]
4.8
4.8 Location Tester
Location Tester
Use:
The compressed air tester is used to set the air blast at
the C&P6 and C&P12 placement heads in the SIPLACE
placement machines.
Use:
The location tester is used to check the feeder connec-
tions at the communication unit of the changeover table.
Measuring Equipment and Tools
4.1.1 Scope of Delivery Calibration Tool [03010565-xx]
Service Manual SIPLACE X Series 251
4.9

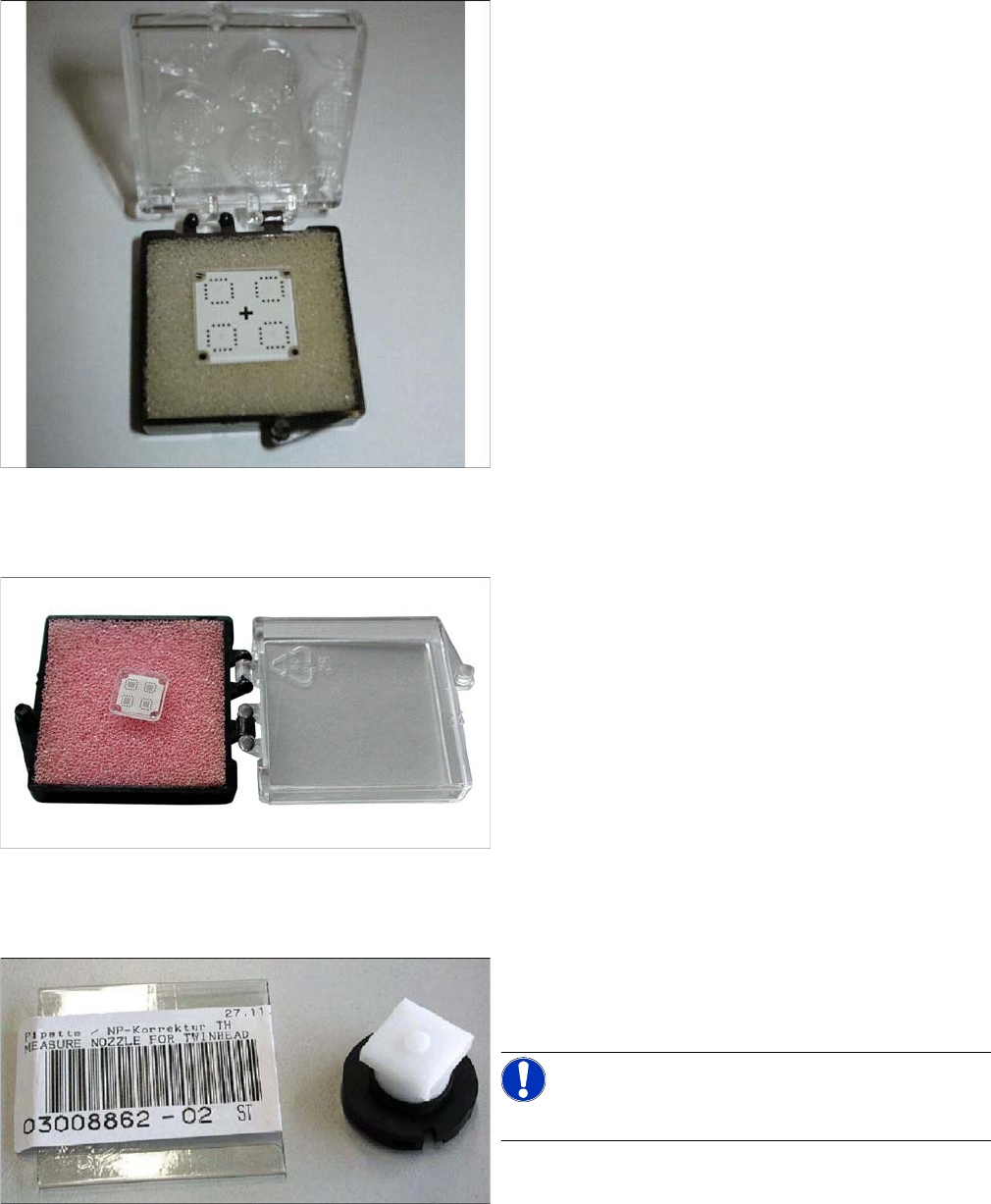

4.9 Calibration Tool [03010565-xx]
Calibration Tool [03010565-xx]
4.10
4.10 Calibration Tool [03034148-xx]
Calibration Tool [03034148-xx]
4.11
4.11 Calibration Nozzle for TwinHead [03008862-xx]
Calibration Nozzle for TwinHead [03008862-xx]
Use:
The calibration tool [03010565-xx] is used for calibration
of the DLM, CPP, P&P heads, TwinHead and PCB cam-
era.
Use:
The calibration tool is used for the following placement
heads:
▪ C&P20
▪ C&P20 A
▪ C&P20 M
▪ C&P20 P
▪ CPP (only at X4i S without stationary camera)
Use:
The calibration nozzle is used to calibrate the D axis of
the TwinHead or P&P head.
NOTICE!
This nozzle is no longer needed from SW705.03.
Measuring Equipment and Tools
Programming Cable for PXS240 Sensor [03073330-xx] 4.1.1 Scope of Delivery
252 Service Manual SIPLACE X Series
4.12

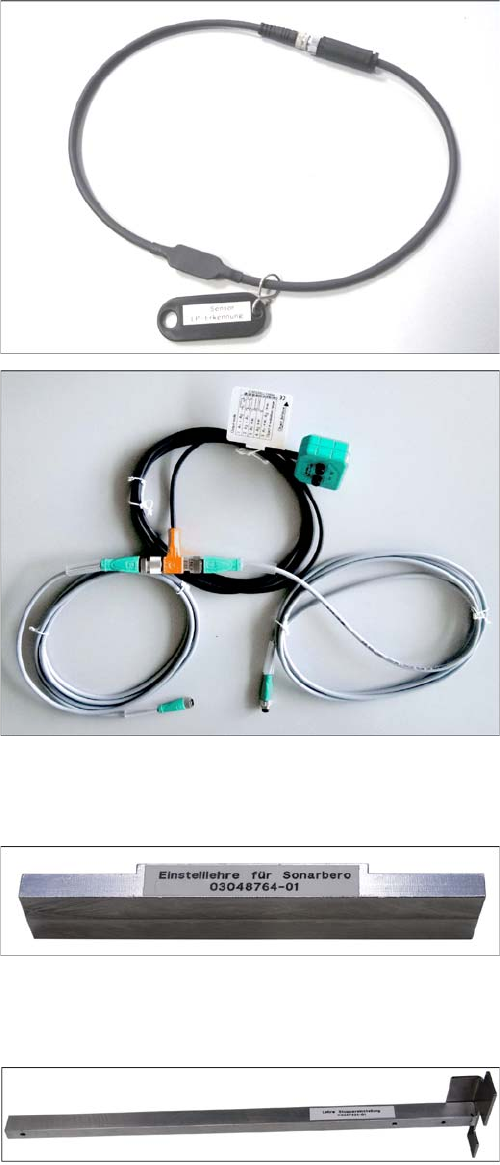

4.12 Programming Cable for PXS240 Sensor [03073330-xx]
Programming Cable for PXS240 Sensor [03073330-xx]
4.13
4.13 Setting Gauge for Sonar Sensors [03048764-xx]
Setting Gauge for Sonar Sensors [03048764-xx]
4.14
4.14 Gauge for Stopper Setting [03067221-xx]
Gauge for Stopper Setting [03067221-xx]
Version 1 – UB-PROG4-V31 (old PXS240)
Version 2 – UB-PROG2
Setting gauge for ultrasonic sensors [03048764-xx]
Stopper setting gauge for fitting the stopper unit on the
holding bracket
