Measuring Equipment and Tools 4.1.1 Scope of Delivery Mapping Test Plate 520x300 mm [03067312‑xx] Service Manual SIPLACE X Series 253 4.15 4 . 1 5 M a p p in g T e s t P la t e 5 2 0 x 3 0 0 m m [ 0 3 0 6 7 3 1 2 - x x ]…
Measuring Equipment and Tools
Programming Cable for PXS240 Sensor [03073330-xx] 4.1.1 Scope of Delivery
252 Service Manual SIPLACE X Series
4.12
4.12 Programming Cable for PXS240 Sensor [03073330-xx]
Programming Cable for PXS240 Sensor [03073330-xx]
4.13
4.13 Setting Gauge for Sonar Sensors [03048764-xx]
Setting Gauge for Sonar Sensors [03048764-xx]
4.14
4.14 Gauge for Stopper Setting [03067221-xx]
Gauge for Stopper Setting [03067221-xx]
Version 1 – UB-PROG4-V31 (old PXS240)
Version 2 – UB-PROG2
Setting gauge for ultrasonic sensors [03048764-xx]
Stopper setting gauge for fitting the stopper unit on the
holding bracket
Measuring Equipment and Tools
4.1.1 Scope of Delivery Mapping Test Plate 520x300 mm [03067312‑xx]
Service Manual SIPLACE X Series 253
4.15

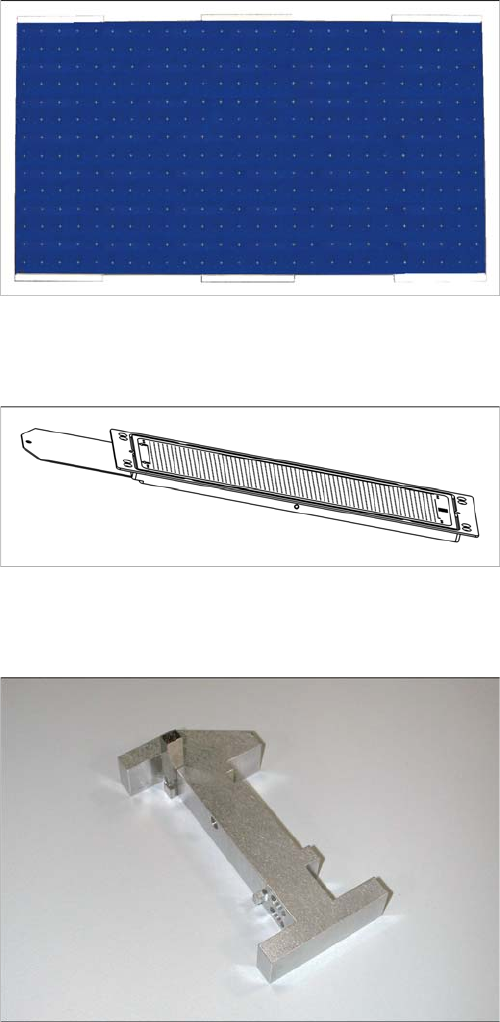

4.15 Mapping Test Plate 520x300 mm [03067312-xx]
Mapping Test Plate 520x300 mm [03067312-xx]
4.16
4.16 ACT Calibration Plate, Single Set, for Quad Lane [03073073-xx]
ACT Calibration Plate, Single Set, for Quad Lane [03073073-xx]
4.17
4.17 Setting Gauge for Board Clamping [00369202-01]
Setting Gauge for Board Clamping [00369202-01]
A special mapping plate with a width of 300 mm has been
developed for the quad lane machines. These machines
can only be mapped with this mapping plate, as the con-
veyor can not be set to a width of 450 mm.
ACT calibration plate, single set, for quad lane
[03073073-xx]
Setting gauge for board clamping [00369202-01]
Measuring Equipment and Tools
Component Sensor Protective Cap (CPP) [03080984-xx] 4.1.1 Scope of Delivery
254 Service Manual SIPLACE X Series
4.18

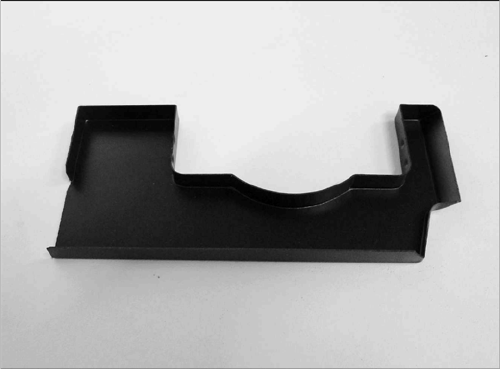

4.18 Component Sensor Protective Cap (CPP) [03080984-xx]
Component Sensor Protective Cap (CPP) [03080984-xx]
Component sensor protective cap for the CPP head
[03080984-xx]
