Overview of the Modules Electrical System 2.2.1 Axis Units 26 Service Manual SIPLACE X Series 2.2.1.2 2 . 2 . 1 . 2 A 3 6 3 - A x is C a r d s f o r X M a c h in e T y p e s a n d H e a d M o d u la r it y A363 - Axis Ca…

100%1 / 384
Overview of the Modules
2.2.1 Axis Units Electrical System
Service Manual SIPLACE X Series 25
2.2.1
2.2.1 Axis Units
Axis Units
2.2.1.1
2.2.1.1 Axis Controller
Axis Controller

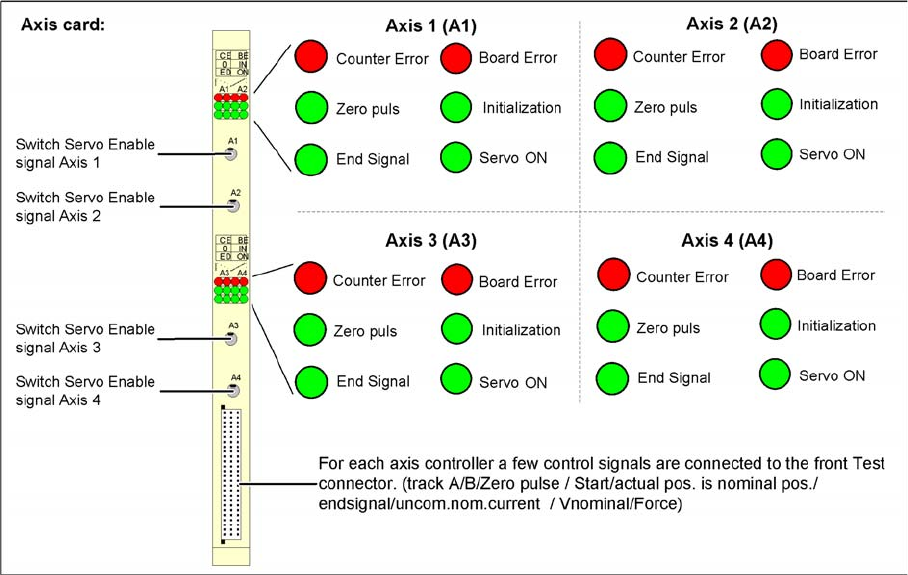

View and test signals for A364 axis controller of SIPLACE machine
The target position and start signal from the MC are transmitted to the axis controllers, which perform all
necessary calculations and controls.
The axis controller A364 in the SIPLACE machine is slot-coded. This means that no address switch
needs to be set when spare parts are replaced.
The communication and axis control functions are performed by the axis controller.
The corresponding BIOS SW and applications 1 and 2 are responsible for this.
The various drive types (motors) make different entries necessary in the control parameters. This leads
to different firmware versions for the axis types.
Overview of the Modules
Electrical System 2.2.1 Axis Units
26 Service Manual SIPLACE X Series
2.2.1.2
2.2.1.2 A363 - Axis Cards for X Machine Types and Head Modularity
A363 - Axis Cards for X Machine Types and Head Modularity
X4 Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr. Assembly
4
Adr.
Placement area 1 Gantry 1 Gantry 4
Axis type/gantry X1 0 Z1_1 3 X4 6 Z4_1 9
Axis type/gantry Y1 1 DP1_1 4 Y4 7 DP4_1 10
Axis type/gantry S1
Z1_2
2Free
DP1_2
5S4
Z4_2
8Free
DP4_2
11
Placement area 2 Gantry 2 Gantry 3
Axis type/gantry X2 16 Z2_1 19 X3 22 Z3_1 25
Axis type/gantry Y2 17 DP2_1 20 Y3 23 DP3_1 26
Axis type/gantry S2
Z2_2
18 Free
DP2_2
21 S3
Z3_2
24 Free
DP3_2
27
X3 Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr. Assembly
4
Adr.
Placement area 1 Gantry 1 Gantry 4
Axis type/gantry X1 0 Z1_1 3 X4 6 Z4_1 9
Axis type/gantry Y1 1 DP1_1 4 Y4 7 DP4_1 10
Axis type/gantry S1 2 Free 5 S4 8 Free 11
Placement area 2 Gantry 3
Axis type/gantry X3 22 Z3_1 25
Axis type/gantry Y3 23 DP3_1 26
Axis type/gantry S3
Z3_2
24 Free
DP3_2
27
X2 Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr. Assembly
4
Adr.
Gantry 1 Gantry 2
Axis type/gantry X1 0 Z1_1 3 X2 6 Z2_1 9
Axis type/gantry Y1 1 DP1_1 4 Y2 7 DP2_1 10
Axis type/gantry S1
Z1_2
2Free
DP1_2
5S2
Z2_2
8Free
DP2_2
11
Overview of the Modules
2.2.1 Axis Units Electrical System
Service Manual SIPLACE X Series 27
2.2.1.3
2.2.1.3 A364 - Axis Cards for X Machine Types and Head Modularity
A364 - Axis Cards for X Machine Types and Head Modularity
X4 and X4I Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr.
Placement area 1
Axis type/gantry X1 0 X4 4 DP1_1 8
Axis type/gantry Y1 1 Y4 5 Free
DP1_2
9
Axis type/gantry S1
Z1_2
2S4
Z4_2
6DP4_1 10
Axis type/gantry Z1_1 3 Z4_1 7 Free
DP4_2
11
Placement area 2
Axis type/gantry X2 16 X3 20 DP2_1 24
Axis type/gantry Y2 17 Y3 21 Free
DP2_2
25
Axis type/gantry S2
Z2_2
18 S3
Z3_2
22 DP3_1 26
Axis type/gantry Z2_1 19 Z3_1 23 Free
DP3_2
27
X3 Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr.
Placement area 1
Axis type/gantry X1 0 X4 4 DP1_1 8
Axis type/gantry Y1 1 Y4 5 Free
DP1_2
9
Axis type/gantry S1
Z1_2
2S4
Z4_2
6DP4_1 10
Axis type/gantry Z1_1 3 Z4_1 7 Free
DP4_2
11
Placement area 2
Axis type/gantry 16 X3 20 24
Axis type/gantry 17 Y3 21 25
Axis type/gantry 18 S3
Z3_2
22 DP3_1 26
Axis type/gantry 19 Z3_1 23 Free
DP3_2
27
X2 Assembly 1 Adr. Assembly 2 Adr. Assembly 3 Adr.
Axis type/gantry X1 0 X3 4 DP1_1 8
Axis type/gantry Y1 1 Y3 5 Free
DP1_2
9
Axis type/gantry S1
Z1_2
2S3
Z3_2
6DP3_1 10
Axis type/gantry Z1_1 3 Z3_1 7 Free
DP3_2
11
