Settings Gantry Settings 5.1.7 Track Signals and Zero Pulse 268 Service Manua l SIPLACE X Series Measuring the Digita l Zero Pulse Signal Measurement procedure for checki ng the digital zero pulse signa l and the digita …

100%1 / 384
Settings
5.1.7 Track Signals and Zero Pulse Gantry Settings
Service Manual SIPLACE X Series 267
Measurement Procedure
► Manually move the gantry over the first zero pulse.

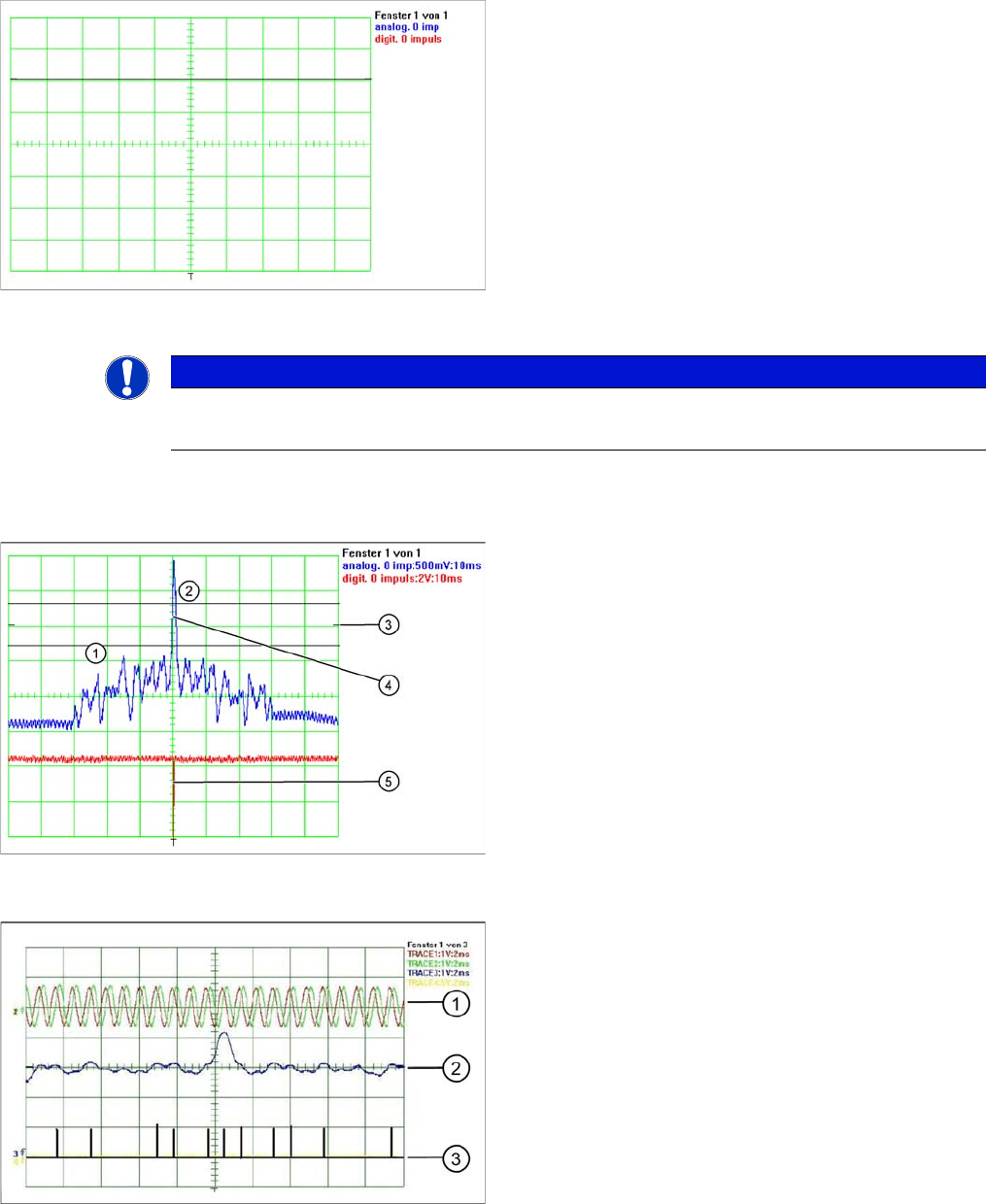

► The following picture should appear on the oscilloscope.
Measuring the initial zero pulse position
► Connect the measurement tester to the incremental
encoder.
► Main power switch ON
► Connect the oscilloscope to the measurement tester.
► Set the measuring adapter to Calibrate the oscillo-
scope and position the signal at the top center of the
screen.
NOTICE
Zero pulse check
Check the first zero pulse after the limit switch.
Correctly adjusted read unit
1. There should be no interference pulse in the toler-
ance space of - 0.3 V.
2. The analog zero pulse has to exceed the switching
threshold by more then 0.3V
3. Initial position
4. Analog zero pulse
5. Digital zero pulse
Incorrectly adjusted read unit or contaminated zero pulse
1. Analog track signal A and B
2. Analog zero pulse
3. Digital zero pulse
Settings
Gantry Settings 5.1.7 Track Signals and Zero Pulse
268 Service Manual SIPLACE X Series
Measuring the Digital Zero Pulse Signal
Measurement procedure for checking the digital zero pulse signal and the digital track signals.
NOTICE
Checking the zero pulse
You can also use the BNC socket on the axis test box to check the zero pulse signal (inverted
display of zero pulse signal). The digital signals (for error monitoring purposes) can be checked
at connectors X10 and X24 of the gantry and head interface. (Calculate extra time for Y axes,
dismounting the covers).
NOTICE
Procedure for measuring the digital zero pulse
The procedure for measuring the digital zero pulse is identical to that for measuring the analog
zero pulse.
Settings
5.1.7 Track Signals and Zero Pulse Gantry Settings
Service Manual SIPLACE X Series 269

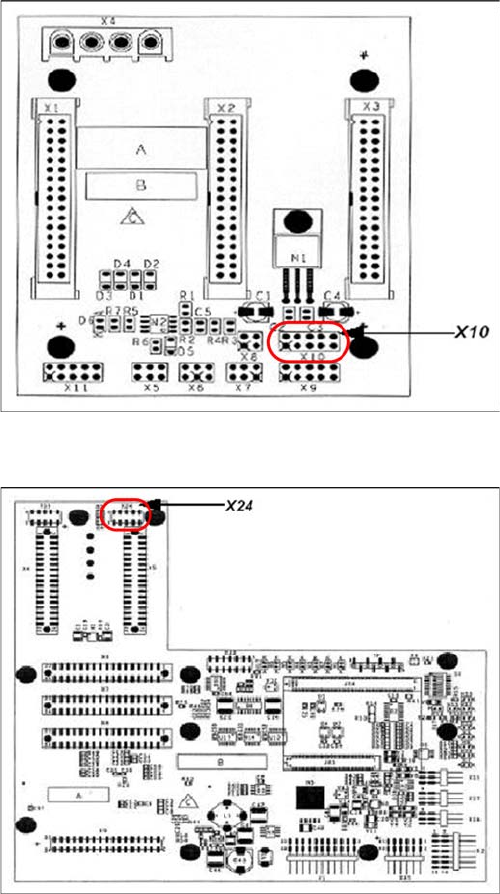

X10 on Y Axis Gantry Interface
X24 on X Axis Head Interface
5.1.7.2
5.1.7.2 Checking the Track Signals
Checking the Track Signals
Analog Track Signals

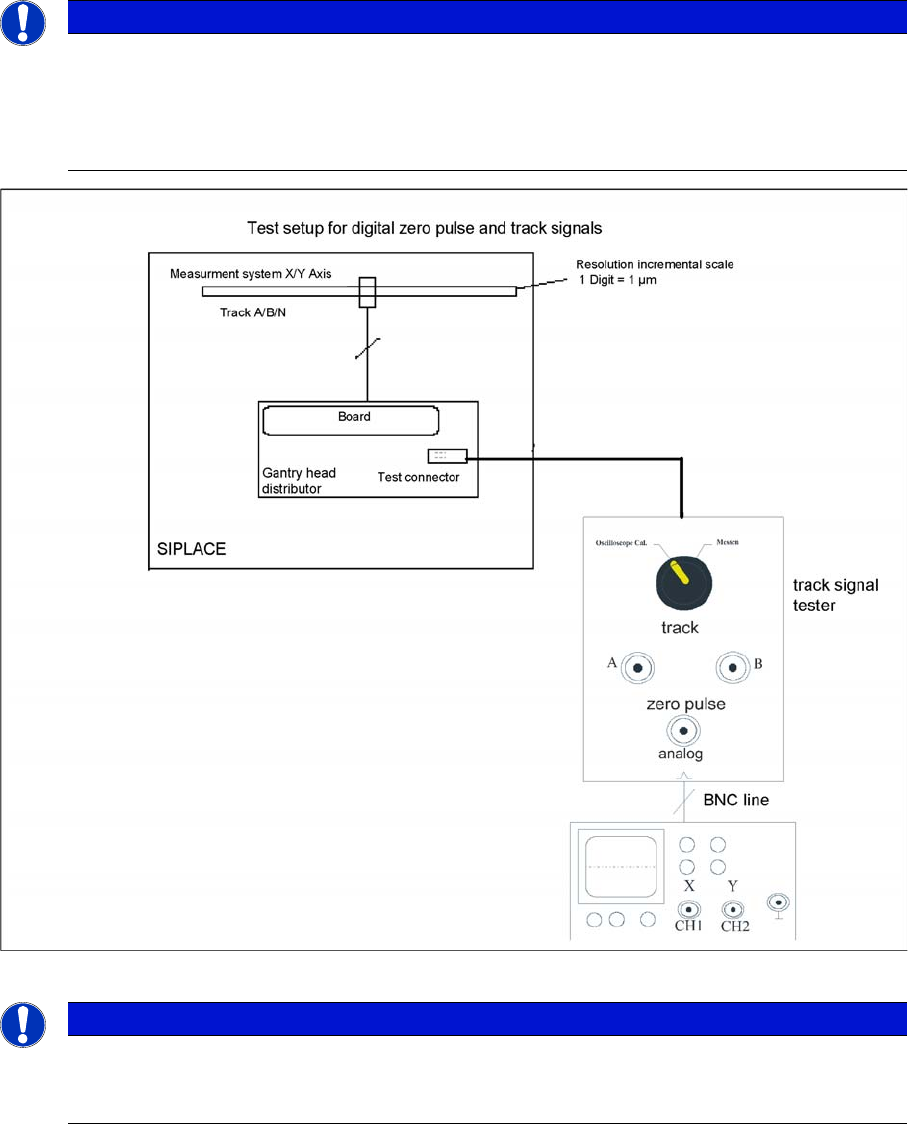

To check the track signals, connect the track signal tester and the oscilloscope. (see "5.1.7.1.1 Measur-
ing the Analog Zero Pulse Signal" [ ➙ 266])
► Switch the machine "ON"
► Switch the track signal tester to Calibrate the oscilloscope
► Set the oscilloscope to DC, Refr., Non Store, Auto (20 ms)
► Voltages V/Division decrease up to 0.5 V/Div.
► Set the oscilloscope to X/Y --> an illuminated point will appear!
► Move the point into the middle of the display.
► Set the measuring system tester to Sinus amplifier output
► Manually move the selected axis back and forth.
Connector assignment X10:
1. Pin 1 Ground
2. Pin 2 Track A
3. Pin 3 Track A\
(A\ means inverted A)
4. Pin 4 Ground
5. Pin 5 Track B
6. Pin 6 Track B\
7. Pin 7 +5V
8. Pin 8 Track N
9. Pin 9 Track N\
10. Pin 10 Key
Connector assignment X24:
1. Pin 1 Ground
2. Pin 2 Track A
3. Pin 3 Track A\
4. Pin 4 Ground
5. Pin 5 Track B
6. Pin 6 Track B\
7. Pin 7 +5V
8. Pin 8 Track N
9. Pin 9 Track N\
10. Pin 10 Key
