Measurement Setup with SAT Box and A364

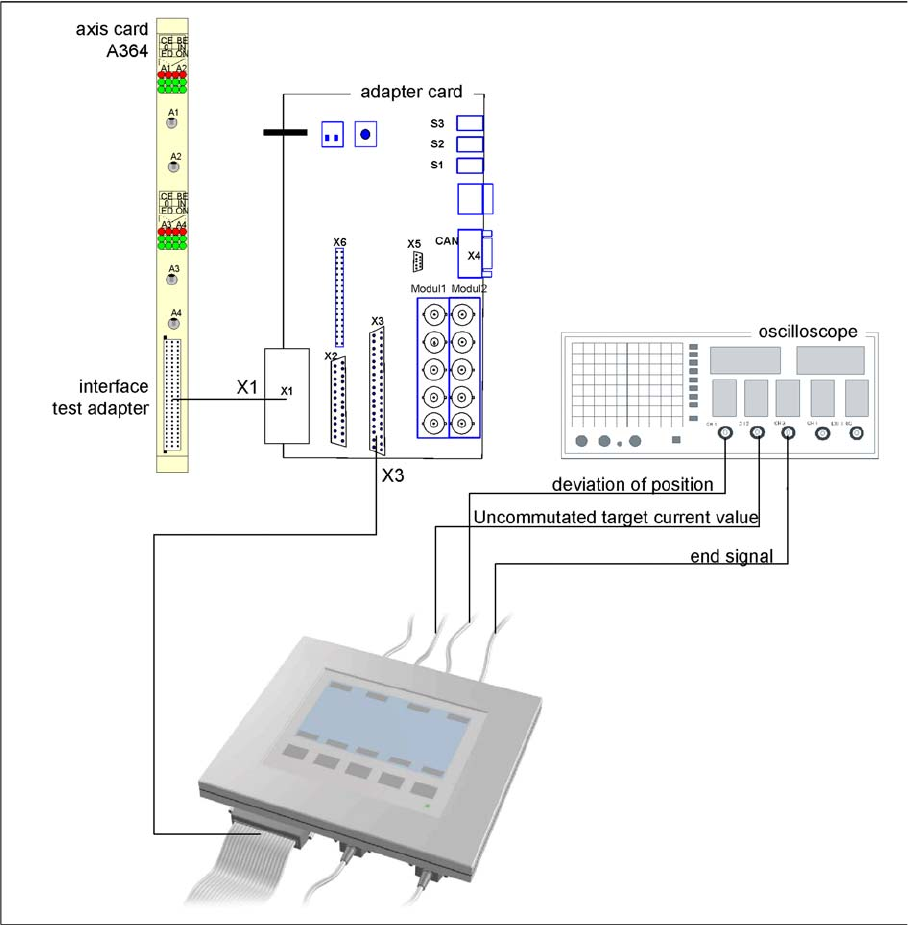

Measurement setup with SAT box
Settings
5.2.4 C&P20 Axis Control
Service Manual SIPLACE X Series 299
Signal Example with the Vnom. Output
The star axis dynamics are checked in the permanent star step mode. A motor phase current is emitted
at the Vnominal output of the axis test box.(control signal 1). The uncommutated current setpoint signal
(signal 3) shows no increased friction values for the axis.
The positioning time for the star axis is 28.5 ms +/-0.5 ms C&P20 (from 31.01.05).
SITEST:
► Select C&P heads ==> Select head ==>Axis functions
==> Select the star axis ==> Star continuous run
==> Entry: waiting period 500 ms ==> Accept.
► Press the START button if required.
Star axis dynamic signals for C&P20
The signals from top to bottom:
▪ Star phase motor current Iu measured at Vnom out-
put
▪ Uncommutated current signal Vreg (or PIN at axis
adapter)
▪ Deviation of position
▪ End signal
NOTICE
C&P20
If these dynamics should be significantly slower or if the uncommutated current signal should
deviate considerably, check the star axis mechanics for damage or the servo amplifier/axis con-
troller (other boards connected to the star) for electrical damage.
Settings
Axis Control 5.2.4 C&P20
300 Service Manual SIPLACE X Series
5.2.4.4
5.2.4.4 Axis Control of Z Axis
Axis Control of Z Axis
Axis control of Z axis
The Z axis DLM2 head is driven via a DC servo motor.
The C&P20 Z axis is driven via a 3~ AC drive. This acti-
vation is via two control signals phase from the VC3 con-
troller Itarget "W" and I-target "U". The intermediate
circuit voltage is approx. 24V.
1. Axis controller board A363 with VC3 controller (VC =
Velocity Commutation) or A 364
2. 1 control signal
3. LEDs on servo amplifier:
4. Servo amplifier
5. 3~ AC(DC) motor.
6. Between the motor and the incremental encoder
there is a fixed mechanical connection.
7. Read unit: transmits the exact position of the axis
(track signals).
8. Elastic mech. connection (belt) and light barrier
down, for fast recognition of the lower position.
The servo board controls the 3~ AC(DC) motor directly.
