Overview of the Modules 2.2.1 Axis Units Electrical System Service Manual SIPLACE X Series 31 2.2.1.9 2 . 2 . 1 . 9 E x a m p le f o r A x is U n it A 3 6 4 Example for Axis Unit A364 Axis unit with two C&P2 0 in pla…
Overview of the Modules
Electrical System 2.2.1 Axis Units
30 Service Manual SIPLACE X Series
2.2.1.7
2.2.1.7 Positions of Servo Cards for SIPLACE X Series and X4I
Positions of Servo Cards for SIPLACE X Series and X4I
Head servo cards for gantries 1 and 2
Head servo cards for gantries 3 and 4
2.2.1.8
2.2.1.8 Example for Axis Unit A363 (X Series to Ma. No. B-335)
Example for Axis Unit A363 (X Series to Ma. No. B-335)
C&P6/12 C&P20 TwinHead CPP
A 9 Star axis Star axis Z2 axis Star axis
A 11 Z1 axis Z1 axis Z1 axis Z1 axis
A 13 Not connected Not connected DP2 axis Not connected
A 15 DP1 axis DC/DC converter DP1 axis DC/DC converter
C&P6/12 C&P20 TwinHead CPP
A 10 Star axis Star axis Z2 axis Star axis
A 12 Z1 axis Z1 axis Z1 axis Z1 axis
A 14 Not connected Not connected DP2 axis Not connected
A 16 DP1 axis DC/DC converter DP1 axis DC/DC converter
Axis unit with two C&P20 in placement area 1
1. Power supply +/- 15V, +5 V
2. Ballast circuit, only in axis unit PA2
3. Power supply +/- 15V
4. Anti-crash board
5. Fan unit (blows downwards)
6. Axis cards A363
7. Servo amplifier X axes
8. Servo amplifier Y axes
9. Brake board for each X axis and Y axis
10. Servo star axis (2x)
11. Servo Z axis (2x)
12. DC/DC converter DP drives (2x)
13. Placement area 1 gantry 1/2 (top half)
14. Placement area 1 gantry 3/4 (bottom half)
Overview of the Modules
2.2.1 Axis Units Electrical System
Service Manual SIPLACE X Series 31
2.2.1.9

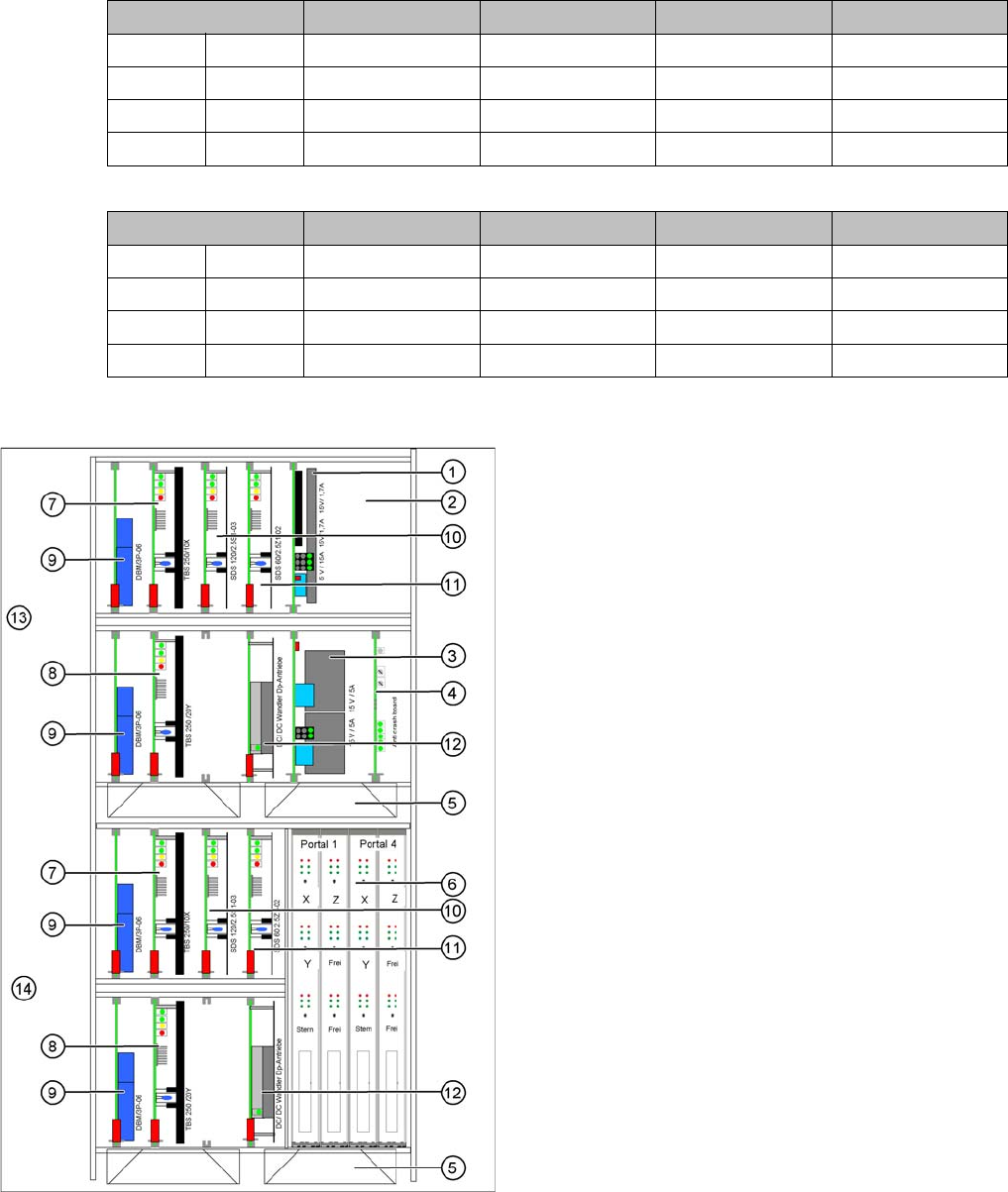

2.2.1.9 Example for Axis Unit A364
Example for Axis Unit A364
Axis unit with two C&P20 in placement area 1
1. Power supply +/- 15V, +5 V
2. Ballast circuit, only in axis unit PA2
3. Power supply +/- 15V
4. Fan unit (blows downwards)
5. Axis card A364 for gantry 1/2
6. Axis card A364 for gantry 4/3
7. Servo amplifier X axes
8. Servo amplifier Y axes
9. Brake board for each X axis and Y axis
10. Servo star axis (2x)
11. Servo Z axis (2x)
12. DC/DC converter DP drives (2x)
13. Placement area 1 gantry 1 (top half)
14. Placement area 1 gantry 4 (bottom half)
Overview of the Modules
Electrical System 2.2.2 Computer Unit [03002110-xx]
32 Service Manual SIPLACE X Series
2.2.2
2.2.2 Computer Unit [03002110-xx]
Computer Unit [03002110-xx]
Overview
The backup battery 3.6 V is located at the back of the computer unit (on the outside of the rear panel
wiring board).
Power supply / DC-DC converter
1) Input +52 V / output +3.3 V, 20A
2) Input +52 V / output +5.0 V, 60A
3) Input +52 V / output +/- -12 V, 6A
Machine control (MC)
4) CPU
5) HD/FD drive
6) CAN COM unit – connection above for PA1 / connec-
tion below for PA2
Control computer for station and Vision computer func-
tions (SR)
7) CPU
8) HD drive
9) 2 x LAN interfaces for communication to the MC and
SIPLACE Pro computer
10) 4 x hotlink interfaces for Vision functions /hotlink
card1: PA1
11) 4 x hotlink interfaces for Vision functions /hotlink
card2: PA2
Other
12) CD-ROM drive with USB connection
13) Video multiplexer
14) Fan unit
