Settings Conveyor Settings 5.4.8 Lifting Table Functions 340 Service Manua l SIPLACE X Series 5.4.8.1 5 . 4 . 8 . 1 A d ju s t in g t h e S p e e d o f t h e L if t in g T a b le ( S W 6 0 1 ) Adjusting the Speed of the …
Settings
5.4.8 Lifting Table Functions Conveyor Settings
Service Manual SIPLACE X Series 339
5.4.8
5.4.8 Lifting Table Functions
Lifting Table Functions
Lifting table up function
Requirements for detecting that the lifting table is up:
▪ 30-35 pulses from the incremental disc
▪ Check performed by software (see "5.4.6 Board Clamping Functions" [ ➙ 333])
▪ Dynamic response for board clamping of approx. 500 ms
Lifting table down function
Requirements for detecting that the lifting table is down:
▪ 30-35 pulses from the incremental disc
▪ Proximity switch on the lifting table cylinder
▪ Dynamic response for board release of approx. 480 ms

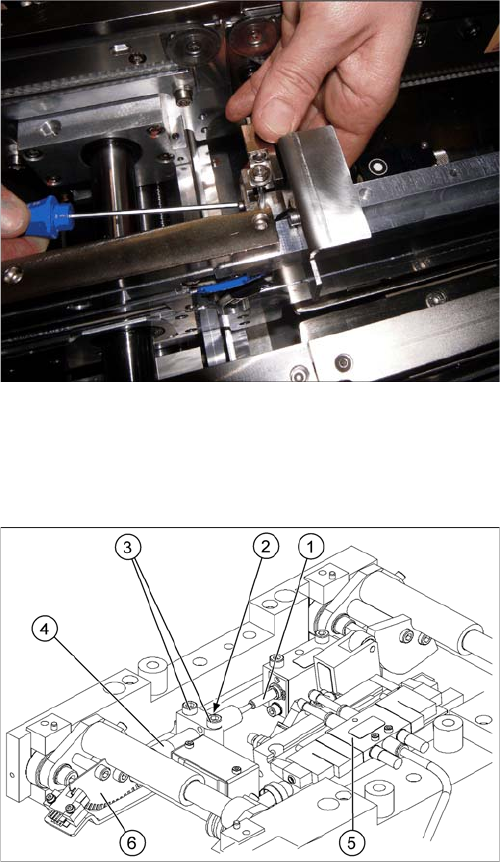

Fitting the stopper unit on the bracket with the help of the
setting gauge
► Position the gauge on the pins. Lift the holder and
align it to the setting gauge (in X direction and height).
► Then dismantle the setting gauge and fit the distance
and clamping rail.
Lifting table unit
1. Actuator
2. Lock nut damper
3. Fastening screws for mounting block
4. Damping unit
5. 3/5 way solenoid valve mounted on lifting table drive
cylinder
6. Fork-type light barriers / incremental disk
Settings
Conveyor Settings 5.4.8 Lifting Table Functions
340 Service Manual SIPLACE X Series
5.4.8.1
5.4.8.1 Adjusting the Speed of the Lifting Table (SW601)
Adjusting the Speed of the Lifting Table (SW601)
Applies for SW601. From SW 602 onwards, the lifting table speed can be checked in SITEST.
Parts
▪ Conveyor software [00322132-xx]
▪ Kvaser card
► Use the Kvaser card (1) to connect the service note-
book via the CAN Bus interface to the conveyor con-
trol.
► Start the conveyor software (LP_TSPMenu.exe).
► In the dialog box Settings, select the relevant convey-
or and machine type HF.
► Confirm your choice with Apply.
► Confirm the message Setting applied with OK.
1. Kvaser card
2. Channel 1
3. Channel 2
► Select the channel to be used with the Kvaser card:
channel 1 (2) or channel 2 (3).
► Confirm your setting with Apply.
► Confirm the message Setting applied with OK.
► In the Components menu, select the function Lifting
table. The Lifting table dialog box will open.
Prerequisite:
▪ That the machine is switched on
▪ That the safety covers are closed
▪ That the control unit is switched on
1
3
2
Settings
5.4.8 Lifting Table Functions Conveyor Settings
Service Manual SIPLACE X Series 341
The time will be shown in front of the buttons.
▪ If the clamping sensor is activated during upward travel, a red LED will flash (as pulse).
▪ The icon shows the state "Lifting table down" (LED on the lifting table pneumatic cylinder).
▪ The icon shows the state "Lifting table up" (lifting table measuring system --> number of count-
ing pulses was counted correctly).
Setting times for the lifting table
► Select the lifting table you wish to check or adjust.
Click on the Up and Down buttons.
1. Pneumatic valve
2. Lifting table cylinder
3. Piston rod
4. Adjustment valve – time characteristic for lifting table
down
5. Adjustment valve - time characteristic for lifting table
up
T = transport direction
► Adjust the valves on the lifting table cylinder (5, 6) so
that the following values are achieved:
Move upwards Move downwards Tolerance
Without lifting table plate 540 ms 540 ms +/- 20 ms
With lifting table plate 500 ms 480 ms +/- 20 ms
