Settings
Other Settings 5.6.1 Firmware Download Note
350 Service Manual SIPLACE X Series
5.6
5.6 Other Settings
Other Settings
5.6.1
5.6.1 Firmware Download Note
Firmware Download Note
From the following station software versions, the firmware download can be performed to all CAN bus
nodes, via the standard SITEST interface.
▪ 505.04 SP2
▪ 603.01 SP1
▪ 604.01 SP1
5.6.2

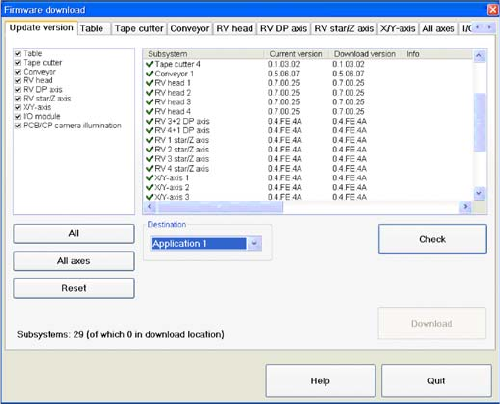

5.6.2 Checking the Firmware Function
Checking the Firmware Function
► Select a Target (BIOS/application 1/application 2)
and click on the Check.
Settings
5.6.3 Firmware Download (SW 70x) Other Settings
Service Manual SIPLACE X Series 351
5.6.3
5.6.3 Firmware Download (SW 70x)
Firmware Download (SW 70x)
► The function Firmware Download can be performed
with the operator levels (1) Machine-Service or
SIPLACE-Service.
► Switch over to the service menu (2).
► Select the button Embedded Software (3).
► (1) Select this button to check the entire machine and
to perform an eSW download for multiple subsys-
tems.
► (2) Select this button to select and check one subsys-
tem, to perform an eSW download.
► (3) Select this button to view all versions of the sub-
systems, BIOS application 1/2.
1. Selection button, BIOS application 1/2
2. Shows the status of the individual subsystems.
3. Update information about the number of subsystems
which still have to be downloaded.
4. Starts the download.
Settings
Other Settings 5.6.4 Transferring the head specific data
352 Service Manual SIPLACE X Series
5.6.4
5.6.4 Transferring the head specific data
Transferring the head specific data
► From software version 601 read the section "5.6.4.1 Transmitting the Head-Specific Data (from
SW601)" [ ➙ 352].
► From software version 701 read the section "5.6.4.2 Transferring the Head-Specific Data (from
SW701)" [ ➙ 354].
5.6.4.1
5.6.4.1 Transmitting the Head-Specific Data (from SW601)
Transmitting the Head-Specific Data (from SW601)
CAUTION
Observe the direction of transfer!
After replacing the assembly, you need to send the valid machine data at the station to the new
assembly.
As the buttons required are very near to each other, take care that you do not accidentally press
the wrong one on the touch screen!
► Make sure you press the correct arrow button. To be on the safe side, select the button with
the mouse.
(C&P20 shown as example)
► Start SITEST and select the menu Settings: Head
Exchange: Head for the relevant head.
► Select the Axis data tab
► and enable the setting Z Axis (1).
► Transfer the machine data with the button (2) , from
the list on the right to that on the left (3).
