► Reboot your machine and check the operating system to make sure that the CAN driver has been
correctly installed or that the firmware and serial number are recognized correctly.

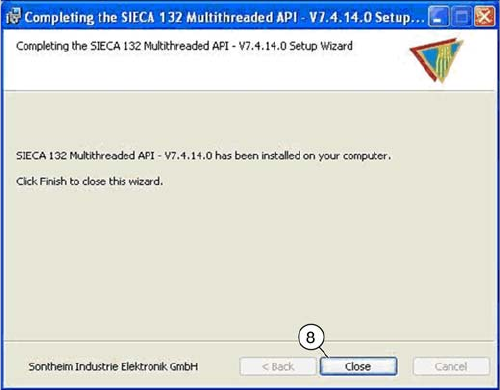

► Once the installation has finished, click on the "Close"
(8) button to close the installation wizard.
Settings
Other Settings 5.6.7 Installing the CAN Card Driver
362 Service Manual SIPLACE X Series
Description of the Circuit Boards
6.1.1 Inrush Current Limitation Board Transformer (A1) [03066830-xx] Electrics and Control
Service Manual SIPLACE X Series 363
6
6 Description of the Circuit Boards
Description of the Circuit Boards
6.1
6.1 Electrics and Control
Electrics and Control
6.1.1
6.1.1 Inrush Current Limitation Board Transformer (A1) [03066830-xx]
Inrush Current Limitation Board Transformer (A1) [03066830-xx]
03066830-01
Jumper J1:
HF/X series: jumper to ON
SX4: jumper to OFF
SX1/SX2: The jumper is not queried here. The jumper
setting is therefore irrelevant.
