Overview of the Modules
Pneumatic Unit 2.4.5 Width Adjustment
46 Service Manual SIPLACE X Series
2.15
2.15 Pneumatic Unit
Pneumatic Unit
Overview

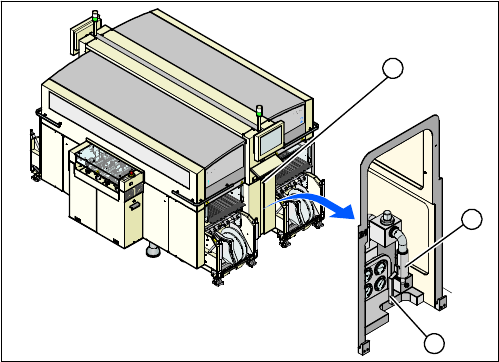

The pneumatic unit is mounted on a compact rack unit and is located in the right-hand middle section of
the machine. The unit is secured by a lockable door and contains the whole compressed air supply and
SMEMA interface (Siemens) to the series-connected stations.
See also
3.2.3.1 Pneumatic Unit - Version 1 [03004151-xx] [ ➙ 81]
3.2.3.2 Pneumatic Unit - Version 2 [03038058-xx] [ ➙ 82]
3.2.3.3 Pneumatic unit - version 3 [03060279-xx] [ ➙ 83]
1. Pneumatic unit
2. Coupling for compressed air connection
3. Shutoff valve
1
3
2
Overview of the Modules
2.4.5 Width Adjustment Docking Station for X Series Component Changeover Table
Service Manual SIPLACE X Series 47
2.16
2.16 Docking Station for X Series Component Changeover Table
Docking Station for X Series Component Changeover Table
Overview – view from front
Overview – view from back
1. Docking station – assembly [00116933-xx]
2. Unlocking pushbutton [00334095-xx]
3. Cover (with power pack behind [03025938-XX] and
pressure control valve for locking cylinder)
4. Locking lever [03025104-xx]
5. Feeder unlocking device 40-fold [03011582-XX]
6. Feeder control unit (FCU) [03020068-xx]
7. Short-stroke cylinder for locking unit [03034831-xx]
3
4
1
7
6
5
4
2
1. Control valve [03003489-xx]
2. ON/OFF switch
3. Microfuse [03033387-xx]
4. Pressure control valve for bulkcase feeder and main
connection (5.5 bar)
1
4
3
2
