Service Work 3.1.1 Measuring Voltages at the Power Supply Unit [00354626-xx] Electrics and Control Service Manual SIPLACE X Series 49 3 3 S e r v ic e W o r k Service Work 3.1 3 . 1 E le c t r ic s a n d C o n t r o l El…
Overview of the Modules
Docking Station for X Series Component Changeover Table 2.4.5 Width Adjustment
48 Service Manual SIPLACE X Series
Service Work
3.1.1 Measuring Voltages at the Power Supply Unit [00354626-xx] Electrics and Control
Service Manual SIPLACE X Series 49
3
3 Service Work
Service Work
3.1
3.1 Electrics and Control
Electrics and Control
Please refer to the circuit diagram folder supplied with your machine for any electrical checks:
▪ Circuit diagram folder SIPLACE X series [00194418-xx] (German)
▪ Circuit diagram folder SIPLACE X series [00194419-xx] (English)
▪ Circuit diagram folder SIPLACE X4I [00195675-xx] (German)
▪ Circuit diagram folder SIPLACE X4I [00195676-xx] (English)
3.1.1
3.1.1 Measuring Voltages at the Power Supply Unit [00354626-xx]
Measuring Voltages at the Power Supply Unit [00354626-xx]
Tools and Equipment Required
▪ Digital voltmeter, class 1, 5
▪ Test cable with test probes or terminals
Preparation
WARNING
Nonobservance of these safety instructions may cause injury to personnel and damage to the
machine!
The service work described in this manual may only be performed by specially trained service
technicians, with appropriate qualifications and expertise.
► Please observe the safety instructions in the Operating Manual for all service work!
CAUTION
Take care not to damage the supply lines!
Make sure that the main power cable and supply cables in the machine are not trapped and
that the insulation is not damaged.
► End all placement operations on the machine.
► Switch the placement system off at the main switch
(1).
► Open the locking mechanism (2) on the power sup-
ply.
► Pull the power supply out towards the front.
► Switch the placement system on at the main switch
(1) and start it up.
► Measure the required voltages. Refer to the circuit di-
agram folder for your machine.
1
2
NOTICE
Inputs, outputs
The inputs to the assemblies are marked with odd numbers, the outputs with even numbers.
The input for the fuses (F1 etc.) is always on the underside of the assembly, while the input for
contactors (K1 etc.) and motor protector switches (Q2 ...) is always on the top.
Service Work
Electrics and Control 3.1.1 Measuring Voltages at the Power Supply Unit [00354626-xx]
50 Service Manual SIPLACE X Series

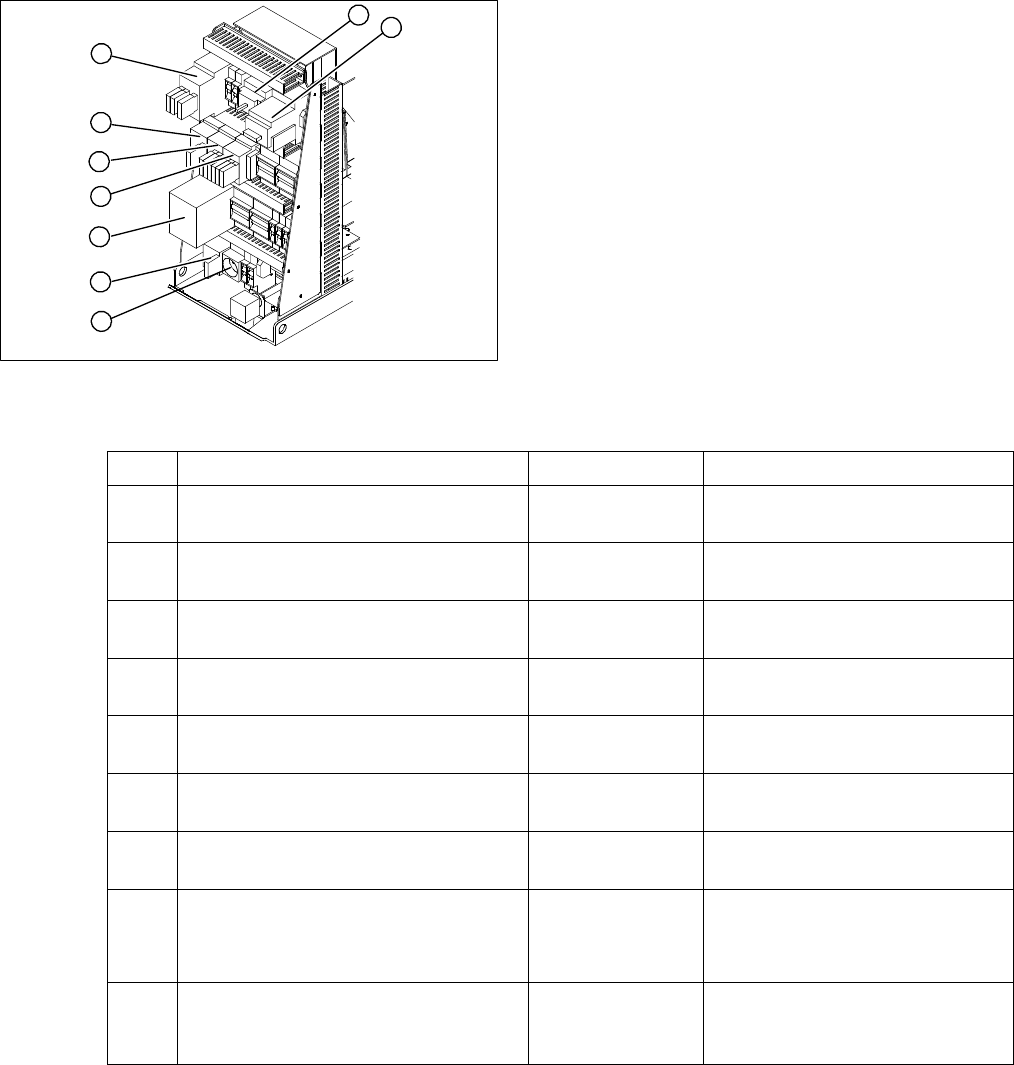

Power supply at the front end 1
Measuring voltages
(*) According to the customer network supply voltage
1. Service socket X102
2. Main switch Q1
3. Motor circuit breaker Q2
4. Main contactor K1
5. Contactor K 2
6. Contactor K 3
7. Contactor K 4
8. Protective contactor combination K6
9. Contactor K 5
1
9
8
7
6
5
4
3
2
Item Designation Contacts Voltage
1 Service socket X102 115 VAC / 220 VAC /
230 VAC 240 VAC (*)
2 Main switch Q1 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC (*)
3 Motor circuit breaker Q2 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC (*)
4 Contactor K 1 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC (*)
5 Contactor K 2 1, 3, 5 and
2, 4, 6
3 x 177 VAC
6 Contactor K 3 1, 3, 5 and
2, 4, 6
3 x 177 VAC
7 Contactor K 4 1, 3, 5 and
2, 4, 6
3 x 177 VAC
8 Protective contactor combination K6 L+, X1,X3, X5
13, 33
23
24 V DC against ground
24 V DC against ground
32 V DC against ground
9 Contactor K 5 A1 (+) to A2 (-)
1, 3, 7
2, 4, 8
24 VDC
24 V DC against ground
24 V DC against ground
