Service Work
3.1.1 Measuring Voltages at the Power Supply Unit [00354626-xx] Electrics and Control
Service Manual SIPLACE X Series 51
Power supply at the front end 2

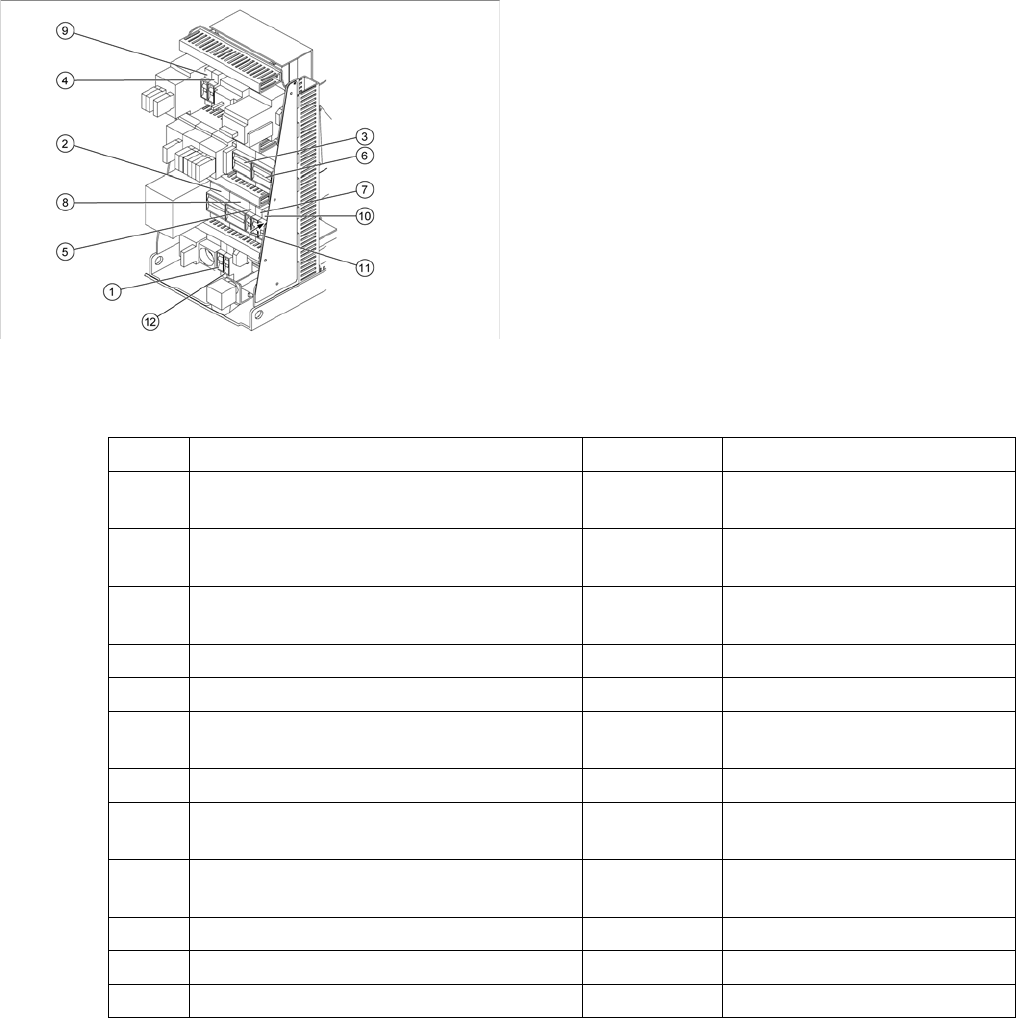

Measuring voltages
(*) According to the customer network supply voltage
1. Fuse F1
2. Fuse F2
3. Fuse F4
4. Fuse F5
5. Fuse F6
6. Fuse F7
7. Fuse F8
8. Fuse F10
9. Fuse F11
10. Fuse F12
11. Fuse F13
12. Fuse F14
Item Designation Contacts Voltage
1 Fuse F1 for service socket (6A) 1, 2 115 VAC / 220 VAC
230 VAC / 240 VAC (*)
2 Fuse F2 Component changeover table
(32A)
1, 3, 5 and
2, 4, 6
3 x 36 VAC
3 Fuse F4 X/Y axis (32A) 1, 3, 5 and
2, 4, 6
3 x 177 VAC
4 Fuse F5 Star axis (10A) 1, 2 145 V DC against ground
5 Fuse F6 Z and DP axis, DP for C&P20 (10) 1, 2 39 V DC against ground
6 Fuse F7 Secondary circuit (6A) 1, 3, 5 and
2, 4, 6
3 x 230 VAC
7 Fuse F8 PCB conveyor (6A) 1, 2 33 V DC against ground
8 Fuse F10 Rectifiers U7 and U70 (16A) 1, 3, 5 and
2, 4, 6
3 x 39 VAC
9 Fuse F11 Inrush current limitation board
(1A)
1, 2 33.6 V DC against ground
10 Fuse F12 Illumination (6A) 1, 2 52 V DC against ground
11 Fuse F13 Monitor (3A) 1, 2 26 V DC against ground
12 Fuse F14 Fan Y motor (6A) 1, 2 26 V DC against ground
Service Work
Electrics and Control 3.1.2 Configuring the Input Voltage at the Inrush Current Limitation Board
52 Service Manual SIPLACE X Series
Power supply at the side
Measuring voltages
(*) According to the customer network supply voltage

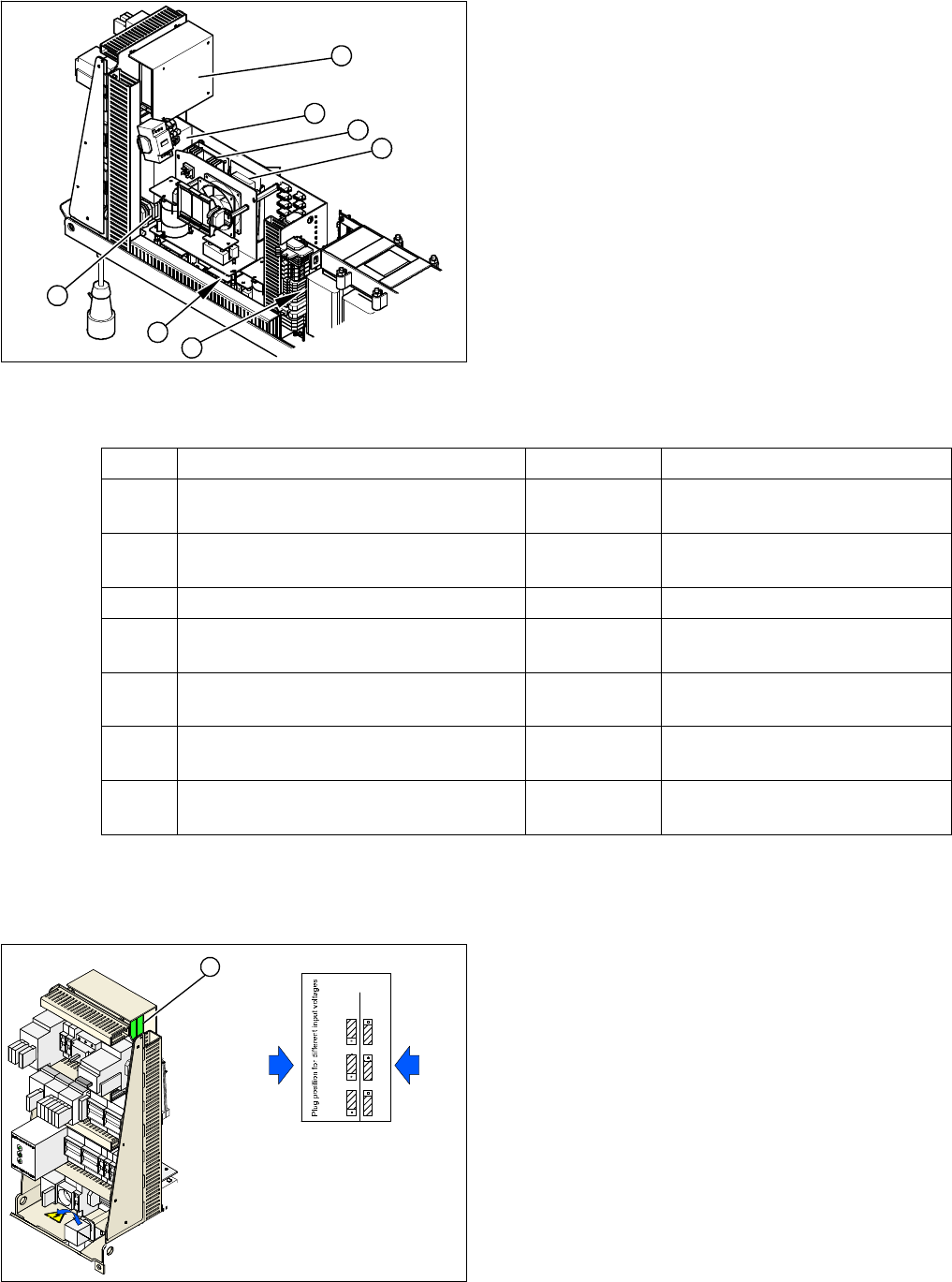

3.1.2
3.1.2 Configuring the Input Voltage at the Inrush Current Limitation Board
Configuring the Input Voltage at the Inrush Current Limitation Board
1. Terminal panel X100
2. Rectifier U1 to U11
3. Line filter
4. Inrush current limitation board
5. DC/DC converter 24 V (behind the cover)
6. DC/DC converter 5V/24V (behind the cover)
7. Position of fuses F21 to F142
Item Designation Contacts Voltage
1 Terminal panel X100 L1, L2, L3 3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC (*)
Micro fuse F21, F22, F23 (T 6A, 3A) dis-
charge throttle L20
1, 2 3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
Fuse F61, F62 Rectifier U4 1, 2 3 x 28 VAC
Microfuse F81, F82 (T 10A)
Rectifier U5
1, 2 3 x 23.8 VAC
Micro fuse F111, F112 (T 1A)
Rectifier U8
1, 2 3 x 23.8 VAC
Micro fuse F131, F132 (T 4A)
Rectifier U10
1, 2 3 x 19.7 VAC
Micro fuse 141, F142 (T 6A, 3A)
Rectifier U11
1, 2 3 x 18.7 VAC
1. Inrush current limitation board
X1, X2, X3: plug-in jumpers to configure the inrush cur-
rent limitation
The inrush current limitation board must be configured in
line with the supply voltage. This is performed with the
help of plug-in jumpers on the inrush current limitation
board (1).
► Check the jumper arrangement and correct if neces-
sary.
Take note of the position of jumper J1 (see "6.1.1 In-
rush Current Limitation Board Transformer (A1)
[03066830-xx]" [ ➙ 363]).
Service Work
3.1.3 Replacing the Motor Circuit Breaker with Motor Protection Tripping Unit Electrics and Control
Service Manual SIPLACE X Series 53
3.1.3
3.1.3 Replacing the Motor Circuit Breaker with Motor Protection Tripping Unit
Replacing the Motor Circuit Breaker with Motor Protection Tripping Unit
Overview
► Select the required chapter:
▪ "3.1.3.1 Replacing the Motor Circuit Breaker PKZ2 [00342494-xx]" [ ➙ 53]
▪ "3.1.3.2 Replacing the Motor Protection Tripping Unit (PKZ 2)" [ ➙ 54]
▪ "3.1.3.3 Replacing the Motor Circuit Breaker PKE32/XTU-32 [03098183-xx]" [ ➙ 56]
3.1.3.1
3.1.3.1 Replacing the Motor Circuit Breaker PKZ2 [00342494-xx]
Replacing the Motor Circuit Breaker PKZ2 [00342494-xx]
Parts, equipment and tools
▪ Motor circuit breaker PKZ2, basic device 3 pin. [00342494-xx]
A motor protection tripping unit belongs to this:
– Motor protection tripping unit ZM-32-PKZ2 (US version) [00342496-xx]
– Motor protection tripping unit ZM-16-PKZ2 (all except US) [00342495-xx]
1. Motor circuit breaker – old version with motor protec-
tion tripping unit
2. Motor circuit breaker – new version without motor
protection tripping unit
NOTICE
Old version [00342494-xx]
This version of the motor circuit breaker is obsolete and may need to be replaced with the new
version "Motor circuit breaker PKE32/XTU-32 assembly 3-pin" [03098183-xx].
► Please also read section "3.1.3.3 Replacing the Motor Circuit Breaker PKE32/XTU-32
[03098183-xx]" [ ➙ 56].
NOTICE
Motor protection tripping unit
The corresponding motor protection tripping unit belongs to the motor circuit breaker.
► For details about replacing the motor protection tripping unit, refer to section "3.1.3.2 Re-
placing the Motor Protection Tripping Unit (PKZ 2)" [ ➙ 54]. Pay particular attention to the
correct settings.
